GPSMAP H1
010-02920-00
GPSMAP H1i Plus
010-02921-00
840 hours (Expedition Mode)
135 hours (Low-power Messaging + 10 minute tracking)
425 hours (Expedition Mode + 10 minute tracking)
840 hours (Expedition Mode)
|
GPSMAP H1 010-02920-00 |
GPSMAP H1i Plus 010-02921-00 |
||
| General | |||
| Unit Dimensions | 2.6” x 7.0” x 1.3” (6.7 x 17.9 x 3.3 cm) | ||
| Weight | 9.7 oz (276 g) | 10.2 oz (290 g) | |
| Display Size | 1.9" x 3.0" (4.7 x 7.7 cm) | ||
| Display Resolution | 282 x 470 pixels (156 ppi) | ||
| Display Type | 3.5" (8.9 cm) 65K color TFT | ||
| Touchscreen | Yes | ||
| Waterproofing | IP67 | ||
| Rugged Design | MIL STD 810G | ||
| Floats | No | ||
| Battery | Internal Rechargeable Lithium-ion (3.87V, 4350mAh, 16.84Wh) | ||
| Battery Life |
145 hours (Auto Select GNSS Mode) 840 hours (Expedition Mode) |
48 hours (Performance Messaging
+ 10 minute tracking) 135 hours (Low-power Messaging + 10 minute tracking) 425 hours (Expedition Mode + 10 minute tracking) 840 hours (Expedition Mode) |
|
| Integral Battery Charger | Yes | ||
| GNSS Antenna | Quad Helix | ||
| GNSS Chipset | SYN4778 | ||
| High Sensitivity GNSS Receiver | Yes | ||
| Multi-GNSS | |||
| Multi-Band | |||
| SatIQ | |||
| GPS (L1+L5) | |||
| Galileo (E1+E5a) | |||
| QZSS (L1+L5) | |||
| BeiDou (B1+B2a) | |||
| NavIC (L5) | |||
| GLONASS (L1) | Yes | No | |
| Iridium Modem | No | IMT | |
| RINEX Logging | Yes | ||
| Interface | USB-C | ||
| Operating Temperature | -4° to 140°F (-20° to 60°C) | ||
| Charging Temperature | 5° to 140°F (-15° to 60°C) | ||
| Maps and Memory | |||
| Basemap | Yes | ||
| Preloaded Map | TopoActive | ||
| Outdoor Maps+ | Yes | ||
| Ability to Add Maps | Yes (15,000 map segments) | ||
| Garmin Custom Maps | Yes (500 custom map tiles) | ||
| Garmin Satellite Imagery | Yes (direct to device download) | ||

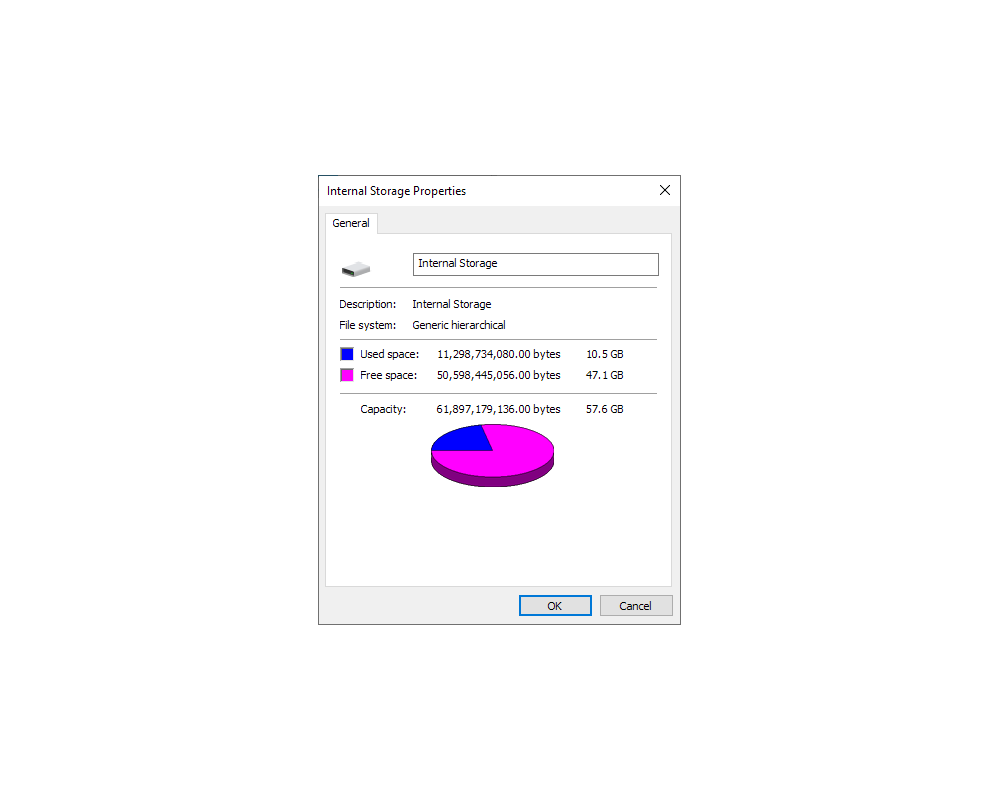

| Internal Memory | 57.6 GB | ||
| Accepts Data Card | Yes (microSD, Max 1TB, Class 4 to 10) | ||
| Custom POIs | Yes | ||
| Waypoints (GPX) | No | ||
| Waypoints (FIT) | ∞ | ||
| Routes (GPX) | No | ||
| Courses (FIT) | ∞ | ||
| Tracks (GPX) | No | ||
| Activities (FIT) | ∞ | ||
| Activity Log (FIT) | ∞ | ||
| Sensors | |||
| GPS Compass | Yes (while moving) | ||
| Digital Compass | Yes (tilt-compensated 3-axis) | ||
| Barometric Altimeter | Yes | ||
| UV Sensor | No | ||
| Microphone | No | Yes | |
| Speaker | |||
| Outdoor Recreational Features | |||
| Geocaching Friendly | Yes (Paperless) - load millions of geocaches manually (GPX + GGZ) or wirelessly (via Bluetooth or Wi-Fi) | ||
| Outdoor GPS Games | No | ||
| Flashlight | Yes | ||
| Camera | No | 5 MP (front) + 8 MP (rear) | |
| Emergency Siren | Yes | ||
| Photo Viewer | Yes | ||
| Photo Navigation | |||
| Area Calculation | |||
| Voice Command | No | Yes | |
| Voice Notes | |||
| Hunt/Fish Calendar | Yes | ||
| Sun/Moon Information | |||
| Tide Tables | Yes (with optional Bluechart maps) | ||
| Radio | No | ||
| Multimedia | No | Yes | |
| Point-to-Point Navigation | Yes | ||
| Automatic Routing | |||
| Spoken Turn-by-Turn Directions | |||
| TracBack Navigation | |||
| Tactical Features | |||
| Applied Ballistics | Yes (requires subscription) | ||
| AB Quantum Compatible | Yes | ||
| Dual Grid Coordinates | |||
| Night Vision Mode | |||
| inReach | |||
| Interactive SOS Rescue | No | Yes | |
| inReach Weather | |||
| inReach Tracking | MapShare or LiveTrack | ||
| inReach Text Messaging | SMS | up to 1,600 characters per message | |
| Group | |||
| inReach Voice Messaging | SMS Only | ||
| inReach Photo Messaging | |||
| inReach Remote | Yes | No | |
| Wireless | |||
| Wi-Fi | Yes | ||
| Bluetooth | |||
| ANT+ | |||
| Garmin Connect | |||
| Garmin Explore | |||
| Garmin Messenger | |||
| Smart Notifications | |||
| Live Tracking | |||
| Connect IQ Applications | |||
| Active Weather | |||
| Garmin Share | |||
| VIRB Remote | No | ||
| XERO Locations | |||
