Find Your Way

• 3-axis internal compass provides function similar to traditional compass.
• Performs advanced navigation functions in dynamic environments.
• With [Setup > Heading > Compass > Off] the Heading updates only while moving.
• With [Setup > Heading > Compass > Auto] the 3-axis Compass is disabled while traveling at higher rates of speed.
• Accent colors are displayed using the day/night colors selected in [Setup > Display > Colors].
• View Compass remotely with Compass dashboard.

Display

• Provides visual Heading and Bearing information (as configured).
• Additional information can be displayed via Dashboard selection.

Compass

• 3-axis compass provides accurate Heading information regardless of device orientation.
• Compass Ring is displayed using day/night colors selected in [Setup > Display > Colors].
• Compass Heading display can be selected in [Setup > Heading > Display].

	Cardinal Letters		Numeric Degrees		Mils

Bearing

• Bearing Pointer indicates the direction to your destination relative to your current Heading direction.
• Bearing Pointer is displayed using day/night colors selected in [Setup > Display > Colors].
• Bearing Pointer style can be selected in [Setup > Heading > Go To Line/Pointer].

	Large Bearing Pointer		Small Bearing Pointer		CDI Bearing Pointer

CDI

• The Course Deviation Indicator displays your relationship to a course line leading to the destination from the original starting point.
• CDI is most useful when navigating by air, water, or where no major obstacles obstruct your path.
• CDI Pointer is displayed using day/night colors selected in [Setup > Display > Colors].
• CDI Drift Scale can be adjusted by pressing the (Up) or (Down) buttons.

• See the CDI page for additional information.

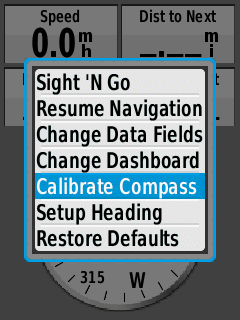

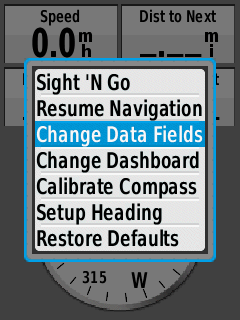

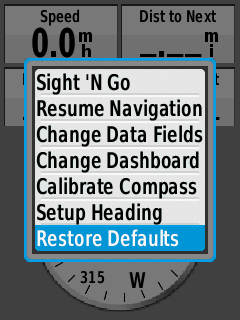

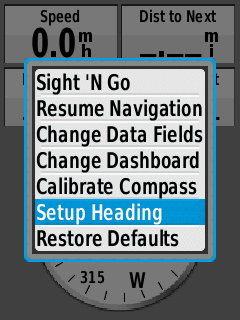

Option Menu


	[Sight 'N Go]		[Resume Navigation]		[Change Data Fields]		[Change Dashboard]
	[Calibrate Compass]		[Setup Heading]		[Restore Defaults]
