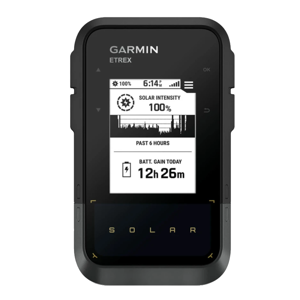

eTrex Solar
010-02782-00
200 hours (GPS only)
1800 hours (Expedition mode)
Unlimited (75 kilolux exposure)
|
eTrex Solar 010-02782-00 |
|
| General | |
| Unit Dimensions |
2.5" x 4.1" x 1.2" (6.4 x 10.5 x 3.1 cm) |
| Weight | 5.0 oz (141 g) |
| Display Size | 1.3" x 1.7" (3.3 x 4.3 cm) 2.16" diag (5.5 cm) |
| Display Resolution | 240 x 320 pixels (185 ppi) |
| Display Type | sunlight readable, monochrome, transflective memory-in-pixel (MIP) |
| Touchscreen | No |
| Waterproofing | IPX7 |
| Floats | No |
| Battery | Internal Rechargeable Lithium-ion (3.80V, 1800mAh, 6.65Wh) |
| Battery Life |
100 hours (Multi-GNSS + Multi-Band) 200 hours (GPS only) 1800 hours (Expedition mode) Unlimited (75 kilolux exposure) |
| Battery Lifespan | 68 years (8 hrs/day x 1000 charge cycles) |
| Integral Battery Charger | USB + Solar |
| Operating Temperature | -4° to 140°F (-20° to 60°C) |
| Charging Temperature USB | 32° to 113°F (0° to 45°C) |
| Charging Temperature Solar | 32° to 140°F (0° to 60°C) |
| GNSS Antenna | Patch |
| GNSS Chipset | AG3335M |
| High Sensitivity GNSS Receiver | Yes |
| Multi-GNSS | |
| Multi-Band | |
| GNSS Network | GPS (L1+L5) + GLONASS (L1) + Galileo (E1+E5a) + QZSS (L1+L5) + BeiDou (B1+B2a) + NavIC (L5) |
| Interface | USB-C |
| Maps and Memory | |
| Basemap | Yes (major cities) |
| Preloaded Map | No |
| Ability to Add Maps | |
| Garmin Custom Maps | |
| Garmin BirdsEye Maps | |
| Custom POIs | |

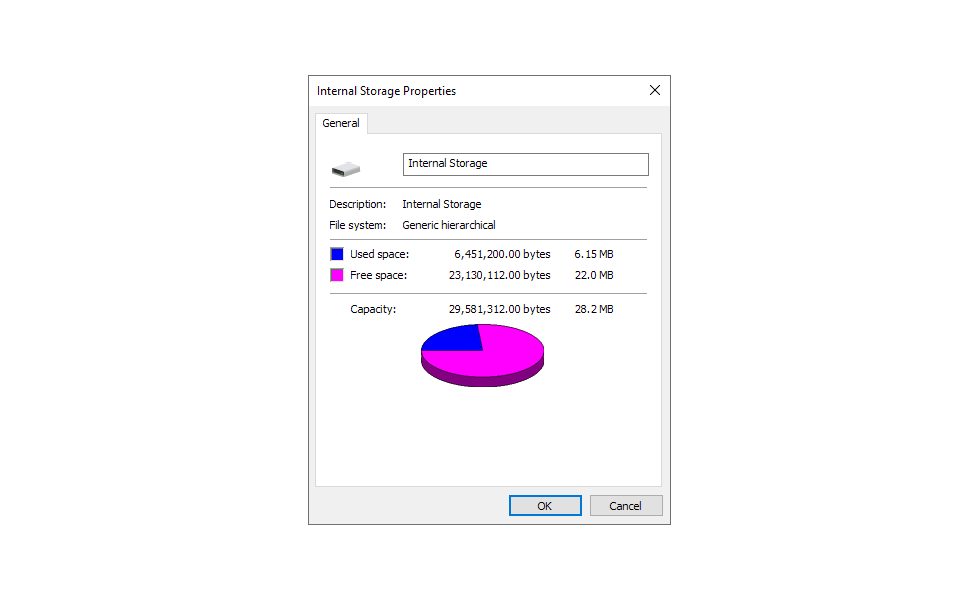

| Internal Memory | 28.2 MB |
| Accepts Data Card | No |
| Waypoints | 1000 |
| Courses | 50 |
| Activities | 200 |
| GPX Waypoints | 250 |
| GPX Routes | 10 |
| GPX Tracks | 10 |
| Sensors | |
| Electric Compass | Yes (tilt-compensated 3-axis) |
| Barometric Altimeter | No |
| UV Sensor | |
| Microphone | |
| Outdoor Recreational Features | |
| Automatic Routing | No |
| Point-to-Point Navigation | Yes |
| Geocaching Friendly | Yes (25 GCLive, 250 GPX) |
| Outdoor GPS Games | No |
| Flashlight | |
| Camera | |
| Picture Viewer | |
| Photo Navigation | |
| Hunt/Fish Calendar | |
| Tide Tables | |
| Sun/Moon Information | Yes |
| Area Calculation | |
| Radio | No |
| Multimedia | |
| Wireless | |
| Garmin Connect | Yes |
| Garmin Explore | |
| Smart Notifications | |
| Live Weather | |
| LiveTrack | |
| Wireless Unit to Unit Transfer | No |
| Connect IQ | |
