"Where did ya come from, where did ya go?"

• Review the Tracks (*.gpx) stored on your Montana 7x0.
• Recorded Tracks can also be imported and viewed in BaseCamp or your favorite GPX file viewer.





Track Types

• The Montana 7x0 groups tracks into three categories: Current, Favorite, and Archived.


  • Current Track


    • Accumulates track points only when Recording Controls or inReach Tracking are active.
    • Contains all recorded track segments since last time the tracklog was cleared.
    • Will auto-archive older track points when track memory is full (as configured).
    • Can be saved as a complete or partial track.
    • Saved in [GPSr]\Garmin\GPX\Current\ directory.


  • Favorite Track

    • A saved track that is not currently archived.
    • Can be configured to 'Show On Map'.
    • Tracks set to 'Show On Map' are listed with a track color indicator preceding the track name.
    • Can be copied and saved in reverse direction.
    • Favorite tracks may be transferred between the GPSr and BaseCamp.
    • Favorite tracks can also be shared wirelessly between compatible Garmin GPSr.
  • No saved track may exceed 20,000 track points.
  • Saved only in [GPSr]\Garmin\GPX\ directory.
  • Can also be stored in [microSD]\Garmin\GPX\ directory.


  • Archived Track

    • A saved track that is not currently set to 'Favorite' status.
    • Can not be configured to 'Show On Map'.
    • Archived tracks can not be displayed on the map page, navigated, or shared.
    • Archived tracks can be imported into BaseCamp.
    • Saved only in [GPSr]\Garmin\GPX\Archive\ directory





Track Limits

• The Montana 7x0 can index 250 individual tracks, each up to 20,000 points in length.
• Tracks over 20,000 points are filtered on device to maximize rendering efficiency without modifying the original *.gpx files.
• The Montana 7x0 will auto-archive the current track log and begin a new recording (as configured) when approaching the 20,000 track point limit.





Track Management

• Tip: Disabled by default (why, Garmin?), GPX tracklog recording must first be enabled in [Setup > Recording > Advanced Setup > Output Format].
• Recorded Tracklogs are saved in the [GPSR]\Garmin\GPX\ and [GPSR]\Garmin\GPX\Archive\ directories.
• Tracklog recording can be synchronized with Stopwatch activity if desired.
• Activities completed from the Stopwatch page while 'Activity Sync' is enabled can be identified by a 'Stopwatch' suffix in the file name.
• Tracks saved in the [GPSr]\Garmin\GPX\Archive\ directory do not count against the 250 saved tracks allowed on the device.
• When archiving a tracklog stored on a microSD card, the *.gpx file is moved to the [GPSr]\Garmin\GPX\Archive\ directory.
• Restoring favorite status to an archived tracklog returns the *.gpx file to the [GPSr]\Garmin\GPX\ directory, never the microSD card.
• Additional Garmin Trail Tech track management information:
  • Never Lose a Track Point with Archived Tracks
  • Getting More out of Track Navigation
  • Understanding Track Archiving Improvements

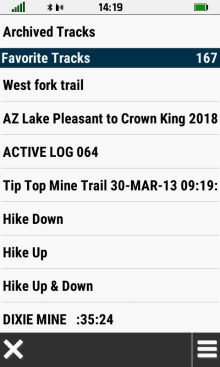

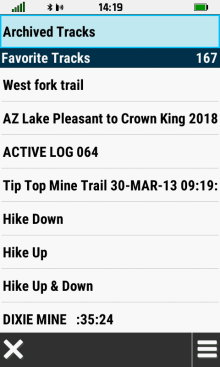

Select Track

Favorite Tracks displayed	Select desired Favorite Track	View [Archived Tracks]	Select desired Archived Track

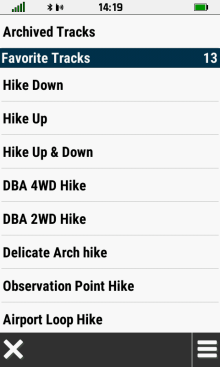

Track Search

	Select [Spell Search]	Enter search term	Search results displayed

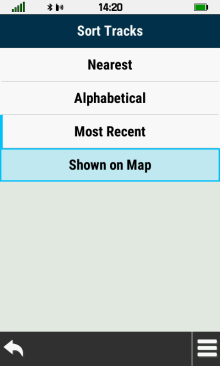

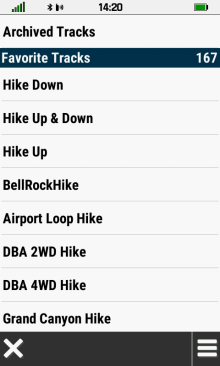

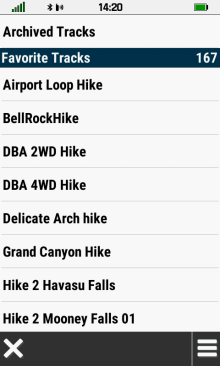

Track Sort

	Select [Sort]	Select [Nearest]	Tracks listed by proximity
Select [Alphabetical]	Tracks listed by name	Select [Most Recent]	Tracks listed by date
Select [Shown on Map]	Tracks listed by display status

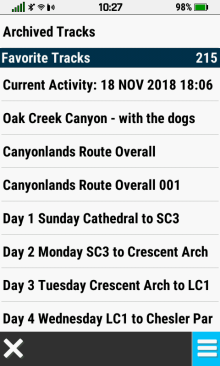

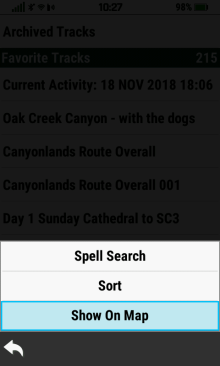

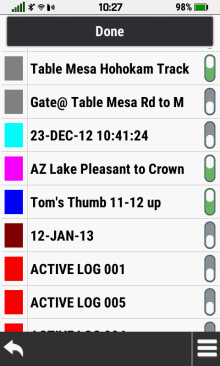

Show On Map

	Select [Show On Map]	Configure individual track visibility as desired	Select [Done] or to save changes

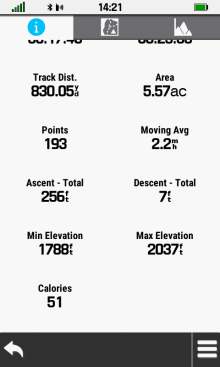

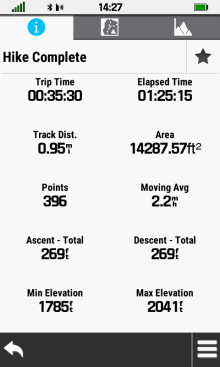

View Track Info

Select desired track	Open Information Tab	Scroll to view all information

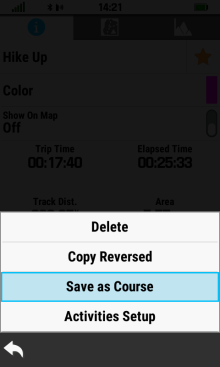

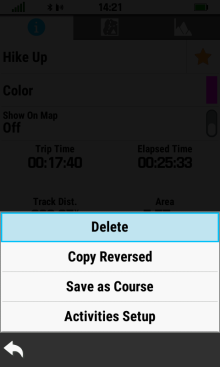

[Delete]	[Copy Reversed]	[Activities Setup]

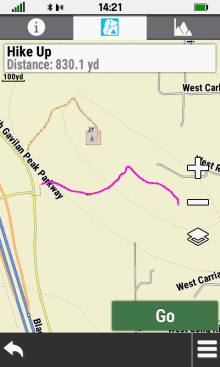

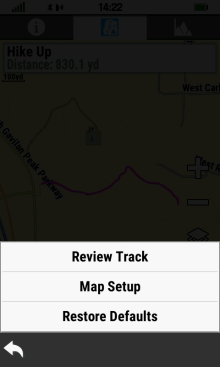

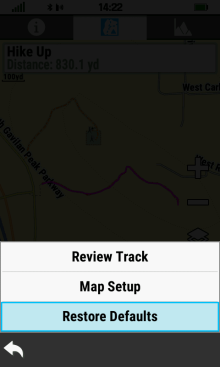

View Track Map

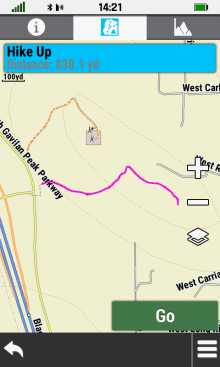

Select desired track	Open Map Tab	Select [Info Box]	View track details

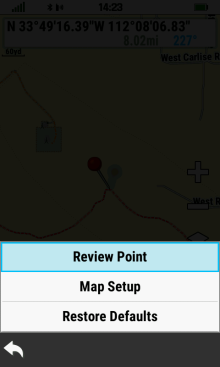

	[Review Track]	[Map Setup]	[Restore Defaults]

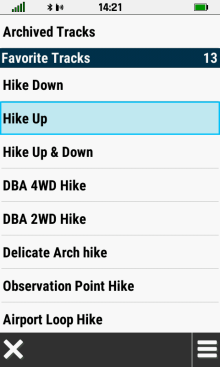

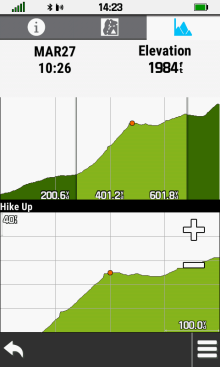

View Track Plot

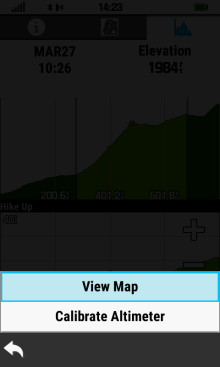

Select desired track	Open Elevation Plot Tab	Pan and Zoom Elevation Plot to mark desired location	[View Map]

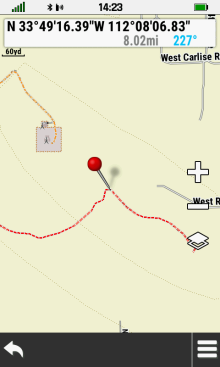

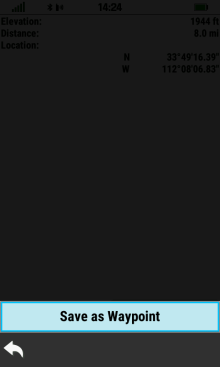

Selected location shown on map	[Review Point]	View point details	[Save as Waypoint]

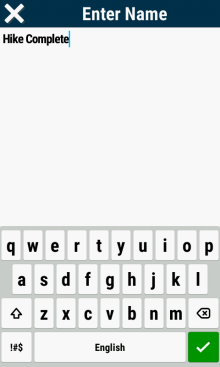

Edit Track Name

Select [Track Name]	Edit name as desired		Track Name is updated

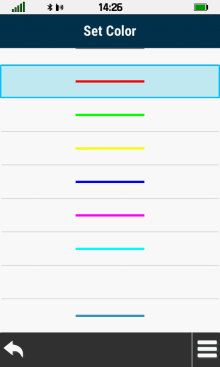

Edit Track Color

Select [Color]	Scroll available colors	Select desired color	Track Color is updated

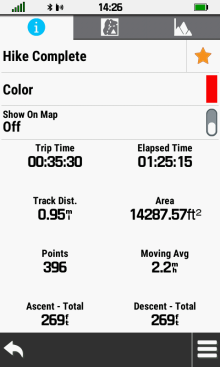

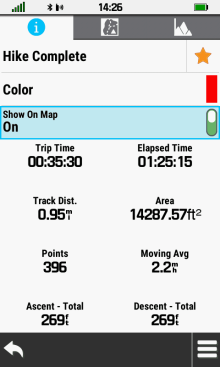

Track Visibility

Select [Show On Map Off]	Track will show on map	Select [Show On Map On]	Track hidden on map

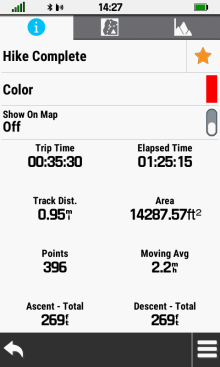

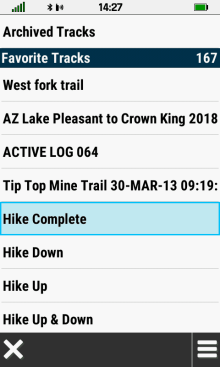

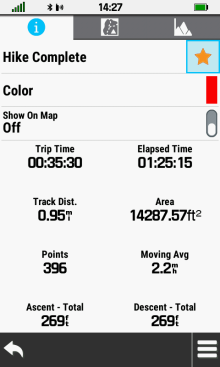

Archive Track

Select a Favorite Track	Open Information Tab		Track is Archived

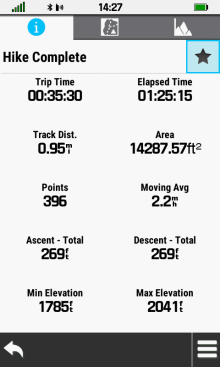

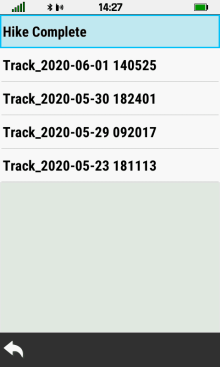

Favorite Track

Select an Archived Track	Open Information Tab		Track is Favorited

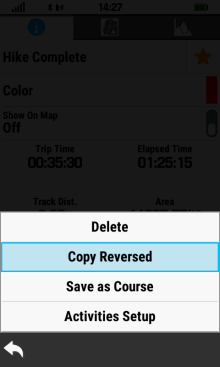

Copy Reversed

• '!' Prefix is automatically added to all Reversed Tracks, and can be edited if desired.

	Select [Copy Reversed]	Edit Track Name if desired	[OK] Reversed Track is saved

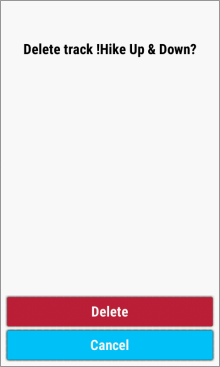

Delete Track

	Select [Delete]	Select [Delete] to proceed	Select [Cancel] to abort
