No Limits

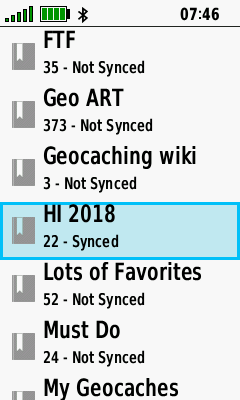

No more picking, choosing and planning, just download them all. The GPSMAP 66 supports virtually unlimited geocaching, indexing up to 4 million geocaches (GPX and/or GGZ format). Access individual geocaches, PQ's and Lists directly from Geocaching.com. Load GPX/GGZ files from your favorite geocaching database software or hosting website. All paperless features are available for every geocache. Read complete descriptions, hints and logs. Filter caches by size, terrain, difficulty and type. Enable/Disable individual GPX/GGZ files! Connect to chirp enabled caches. Record and publish your logs while in the field. The GPSMAP 66 provides best in class geocaching capability.

Tip: Add benchmarks to your Garmin GPSr!

New Geocaching features are available with the version 4.70 firmware update:

• New: Geocache child waypoints are now automatically downloaded via GCLive!
• New: Enable Proximity Alarms so you never have to miss another unfound geocache again!

GPX vs GGZ

Use one or the other, or use them both. The GPSMAP 66 provides full geocaching functionality regardless of format. Using GGZ files substantially improves the GPSMAP 66 searching and indexing speeds. GGZ files consist of a compressed geocache GPX archive that includes an XML index containing only the information essential to searching and indexing functions. When a specific geocache is selected, additional information is then retrieved from the corresponding GPX file as required. Removing unnecessary information from the sorting process translates into a more efficient and enjoyable geocaching experience.



GeoCache User Interface (GCUI)

• All geocaching functions can be accessed from these tabbed menus:

	Active Geocache
	Geocache List
===============
	Geocache Map

• Access geocaching features remotely with the Geocaching dashboard.

Active Geocache

Select a geocache	Active Geocache Menu	(Menu) [Geocaching Setup]	(Menu) [Additional Waypoints]

Description

Select [Description]	Geocache description is displayed	Use D-PAD to Scroll Description Slowly	Use + / - to Scroll Description Quickly

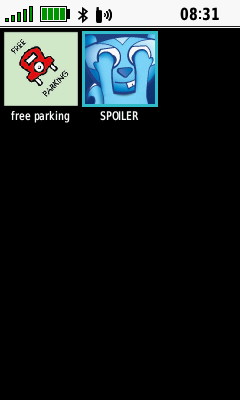

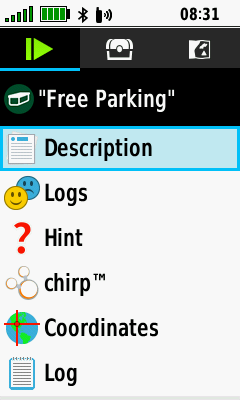

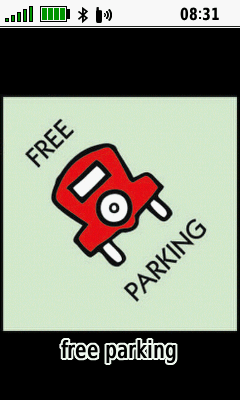

Photos

• See Geocaching with Photos for more information

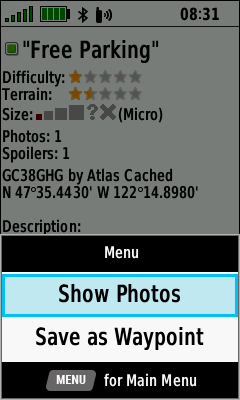

Select [Description]	(Menu) [Show Photos]	Select desired thumbnail and Press (Enter)	Selected image is displayed
Select spoiler thumbnail and Press (Enter)	Press (Enter) to reveal hidden spoiler image	Spoiler image is displayed	Spoiler thumbnail no longer hidden by Opie

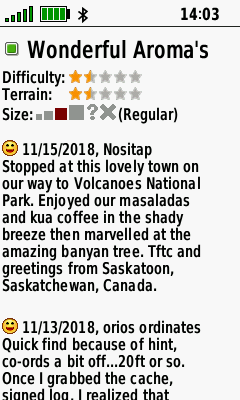

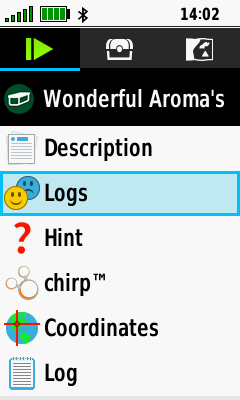

Logs

Select [Logs]	Use D-PAD to Scroll Logs Slowly	Use + / - to Scroll Logs Quickly

Hint

Select [Hint]	View geocache hint

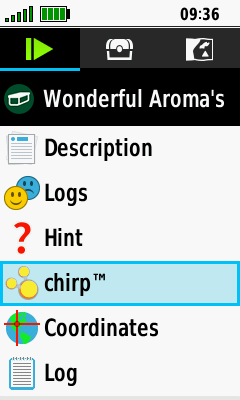

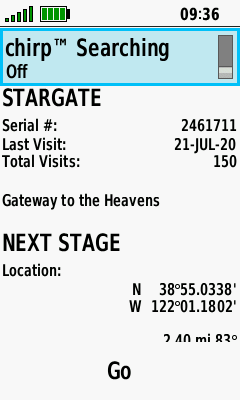

Chirp™

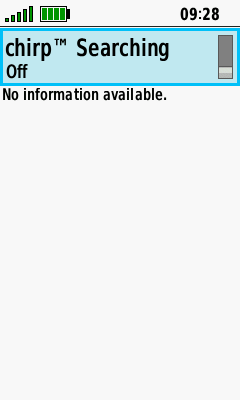

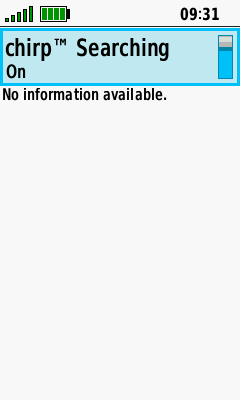

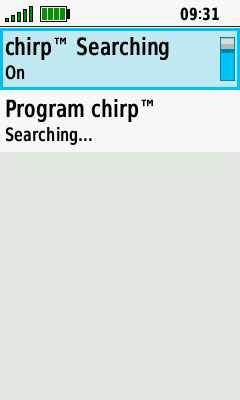

Select [chirp™]	chirp™ searching disabled	Press (Enter) to enable chirp™ searching	chirp™ searching enabled

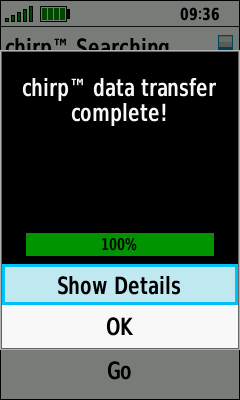

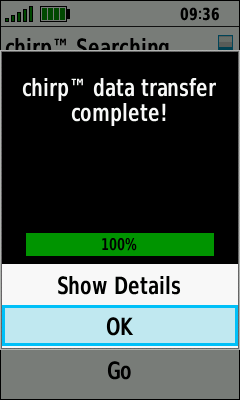

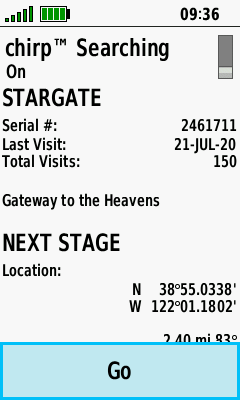

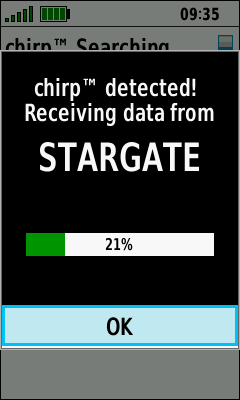

chirp™ detected!	Data transfer complete	Select [OK] and press (Enter)	chirp™ data displayed

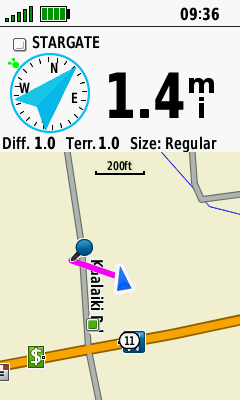

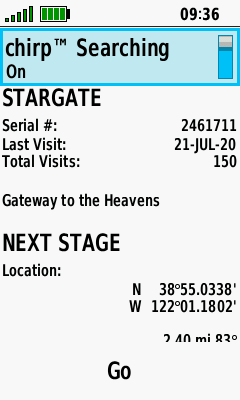

Disable chirp™ searching to conserve battery power	Select [Go] and press (Enter)	chirp™ destination enabled (ANT+ logo near compass)	Gold chirp™ icon indicates chirp™ searching is enabled

Next Stage

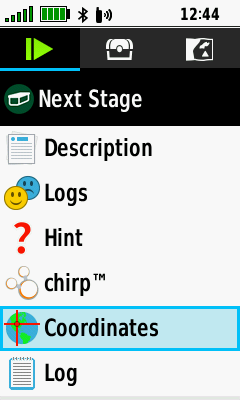

Enter Coordinates

Select [Coordinates]	Enter desired coordinates	Select [Done]	Next Stage destination enabled

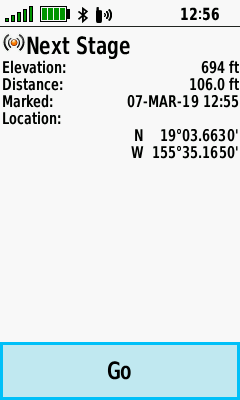

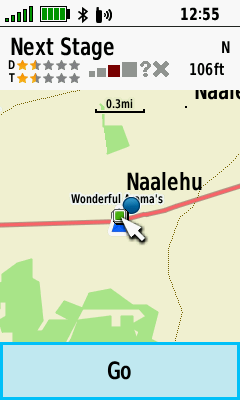

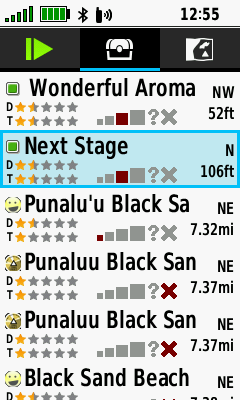

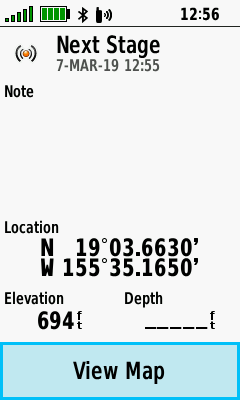

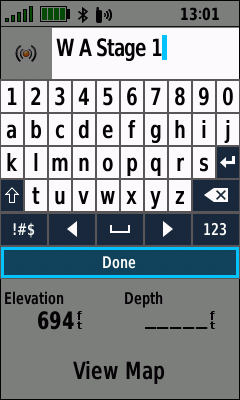

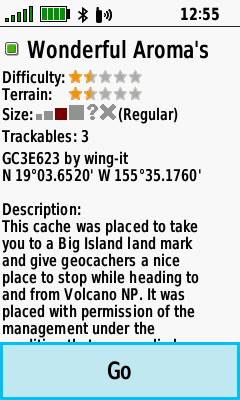

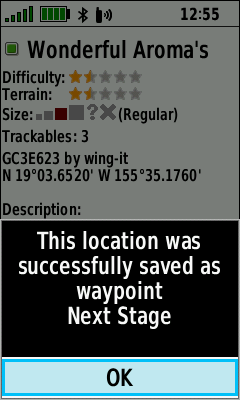

Save Next Stage Waypoint

Create Next Stage	Select [Next Stage] in Geocache List	Press (Menu)	Select [Review Point]
Press (Menu)	Select [Save as Waypoint]	Select [OK]	Next Stage Waypoint has been saved

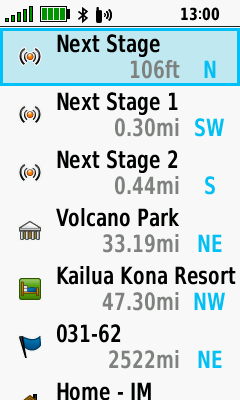

Edit Next Stage Waypoint

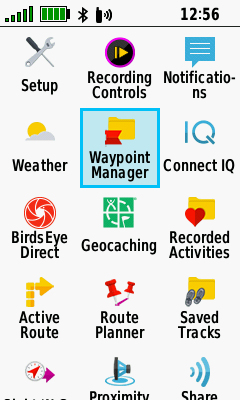

Open Waypoint Manager	Select [Next Stage]	Select [View Map]	Navigate to Next Stage

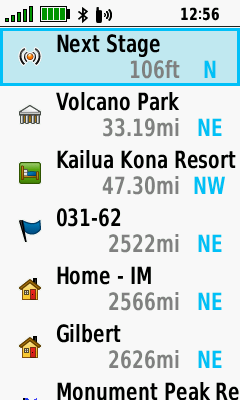

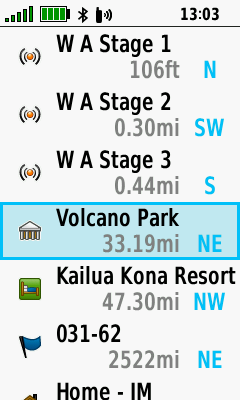

Repeat for each Next Stage	Next Stage waypoints listed in Waypoint Manager	Rename Next Stage waypoints as desired	Renamed waypoints listed in Waypoint Manager

Child Waypoints

Press (Menu)	[Additional Waypoints]	Select desired waypoint	Press (Menu)

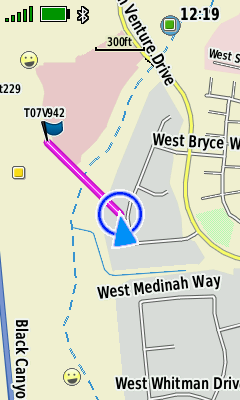

[Review Point]	[Go]	Additional waypoint navigation begins









Create Log

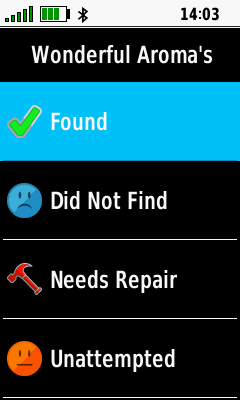

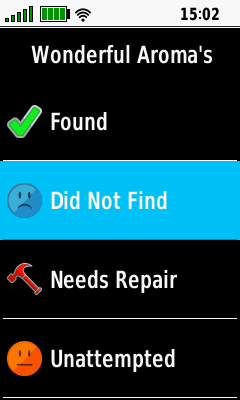

Select [Log]	Choose Log Type



Found

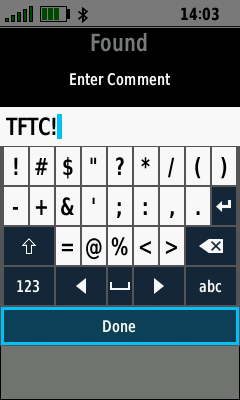

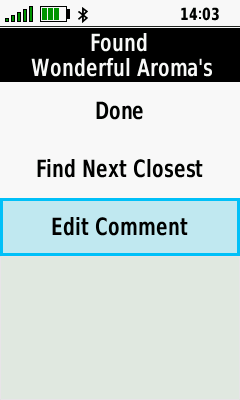

Select [Found]	Select [Edit Comment]	Enter Comment, Select [Done]	[Done] Must be selected to save results

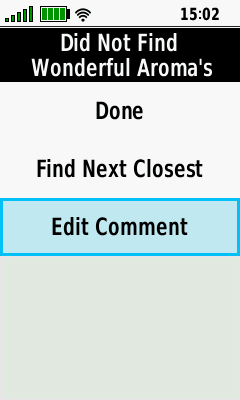

Did Not Find

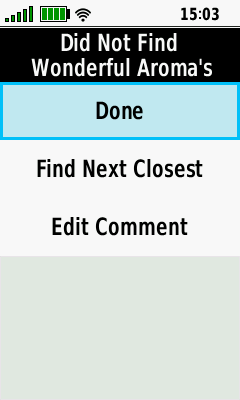

Select [Did Not Find]	Select [Edit Comment]	Enter Comment, Select [Done]	[Done] Must be selected to save results

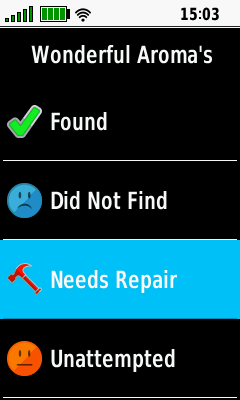

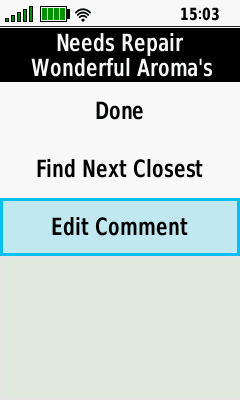

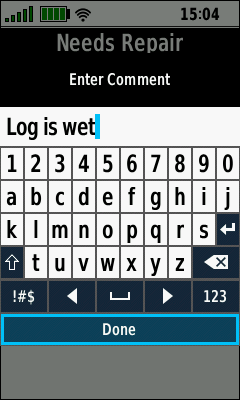

Needs Repair

Select [Needs Repair]	Select [Edit Comment]	Enter Comment, Select [Done]	[Done] Must be selected to save results



Unattempted

Select [Unattempted]	Select [Done] to mark geocache as not found



Geocache List

• The geocache list will reflect any currently active geocache filter.
• Only the nearest 1000 geocaches within a radius of approximately 100 miles from your present location will be displayed.
• Geocaches beyond these boundaries will appear on the map when viewed at or below the selected geocache zoom level.
• Use Search Near to view a list of geocaches by proximity to a user specified location.
• If geocaches loaded on the GPSr are not displayed, carefully recheck all filter settings.

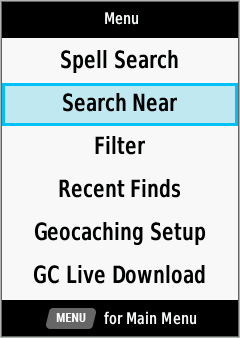

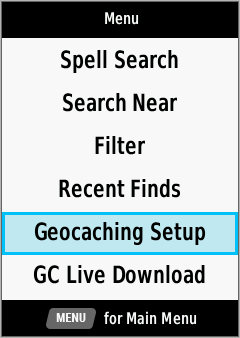

Option Menu

[Spell Search]	[Search Near]	[Filter]	[Recent Finds]
[Geocaching Setup]	[GC Live Download]

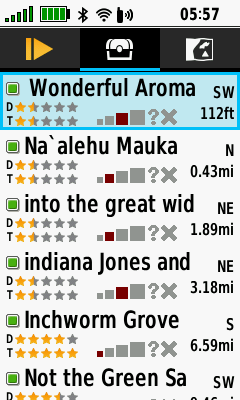

View Geocache

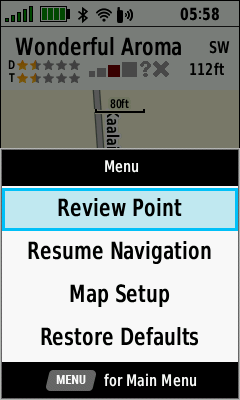

Select desired geocache and Press (Enter)	Press (Menu)	Select [Review Point]	Geocache information is displayed

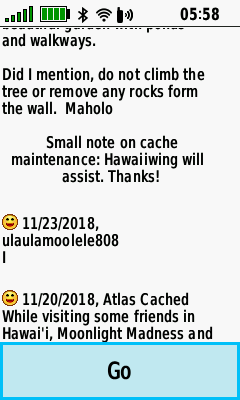

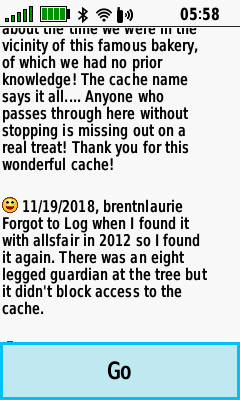

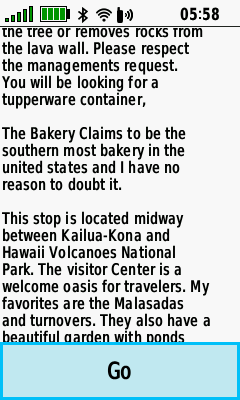

Use D-PAD to Scroll Info Slowly	Use + / - to Scroll Info Quickly	Select [Go] to Find Geocache

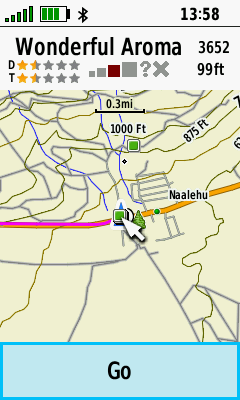

Find Geocache

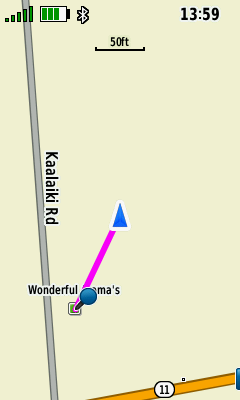

Select desired geocache and Press (Enter)	Select [Go]	Route is Calculated	Route is Displayed

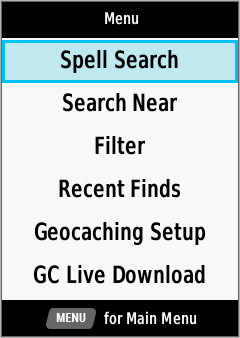

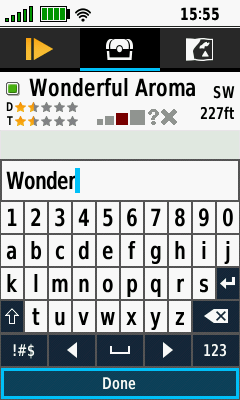

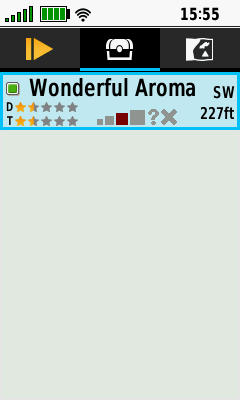

Spell Search

Press (Menu)	Select [Spell Search]	Enter search term, Select [Done]	Choose from search results

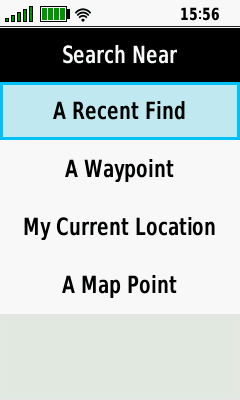

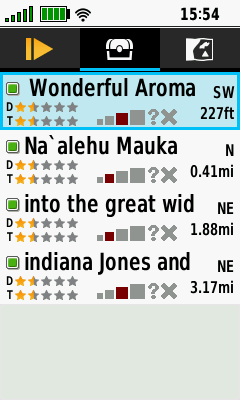

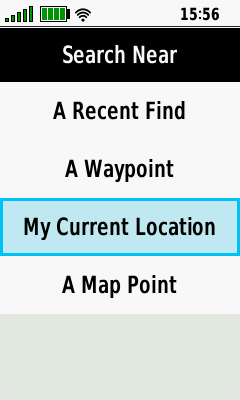

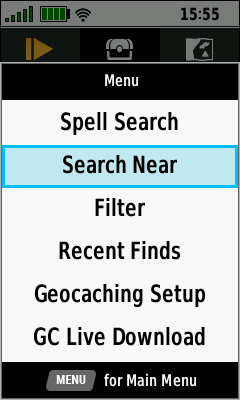

Search Near

Press (Menu)	Select [Search Near]	Choose from Available Categories

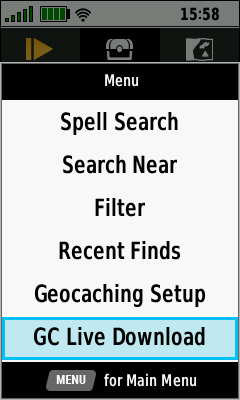

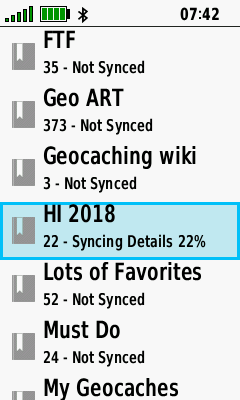

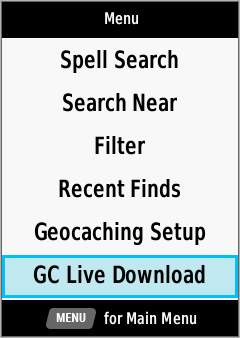

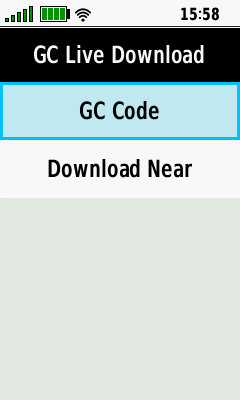

GC Live Download

Press (Menu)	Select [GC Live Download]	Select [GC Code]	Enter Desired GC Code
Select [Done]	Select [Go]	Route Displayed	Select [Download Near]

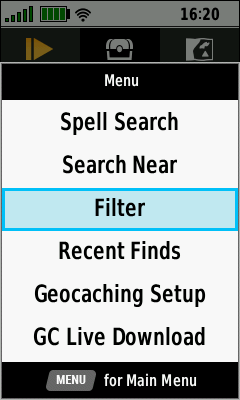

Apply Geocache Filter

Press (Menu)	Select [Filter]	Choose Desired Filters



Recent Finds

Press (Menu)	Select [Recent Finds]	View Recent Finds



Geocache Map

• The geocache map will reflect any currently active geocache filter.
• If geocaches loaded on the GPSr are not displayed, carefully check all geocache filter settings and Map Page geocache zoom settings.

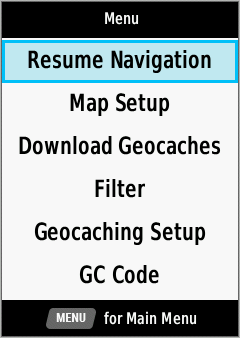

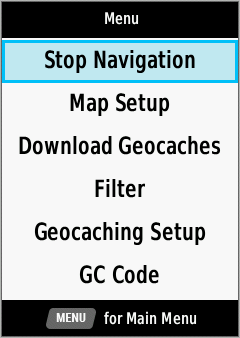

Option Menu

[Stop Navigation]	[Resume Navigation]	[Map Setup]	[Download Geocaches]
[Filter]	[Geocaching Setup]	[GC Code]



Download Geocaches

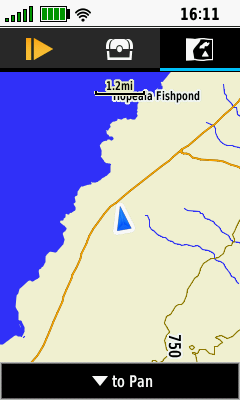

Current Location

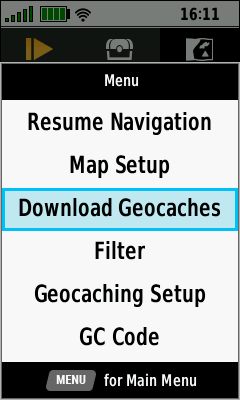

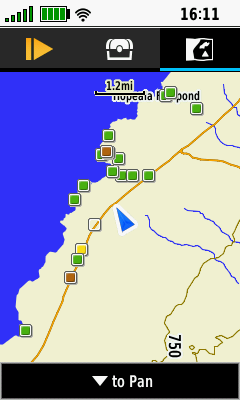

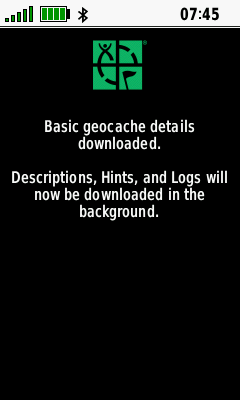

Select Map Tab	Press (Menu) and Select [Download Geocaches]	Geocaches are loading	Map Page is populated with geocaches

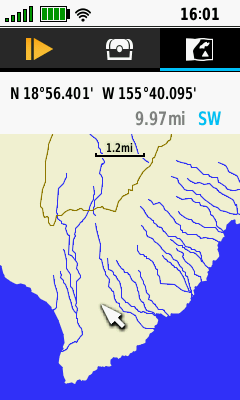

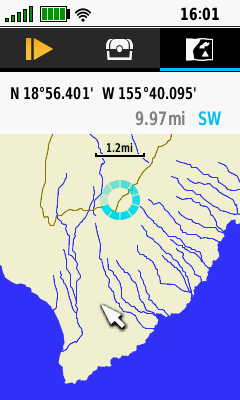

Pan Map

Press (Enter) and Pan Geocache Map to desired location using D-PAD	Press (Menu) and Select [Download Geocaches]	Geocaches are loading	Map Page is populated with geocaches

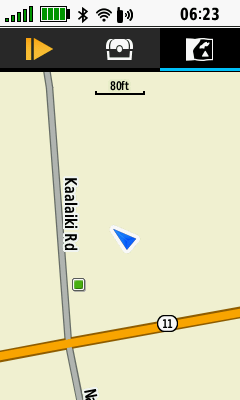

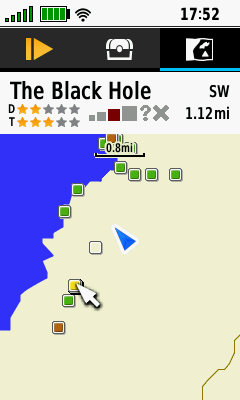

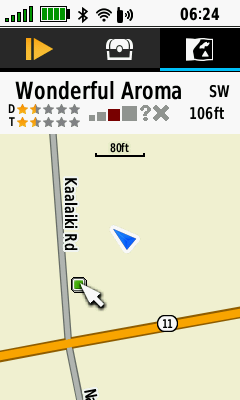

View Geocache

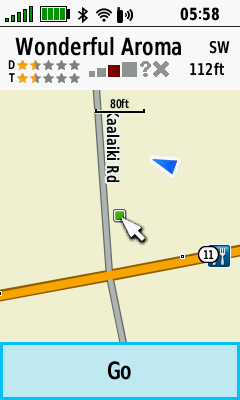

Select Map Tab and Press (Down) to Pan Map	Use D-PAD to Pan Cursor to Desired Geocache	Press (Enter)	Geocache information is displayed
Use D-PAD to Scroll Info Slowly	Use + / - to Scroll Info Quickly	Select [Go] to Find Geocache

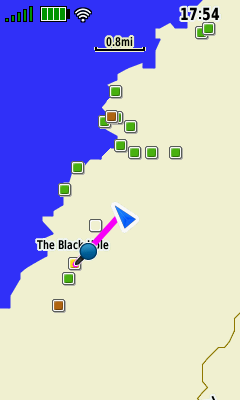

Find Geocache

Select Map Tab and Press (Down) to Pan Map	Move Cursor to Desired Geocache & Press (Enter)	Select [Go] to Begin Navigation	Route is Displayed



Search

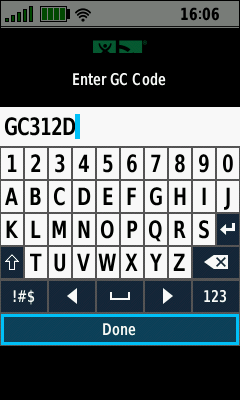

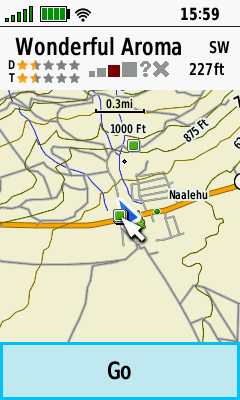

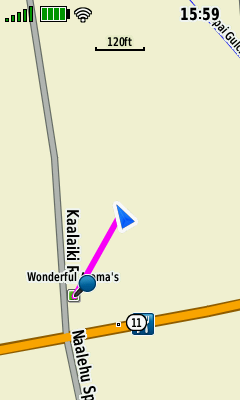

Select Map Tab	Press (Menu) and Select [GC Code]	Enter Desired GC Code Select [Done]	Select [Go]



Apply Geocache Filter

Select Map Tab	Press (Menu) and Select [Filter]	Choose Desired Filters

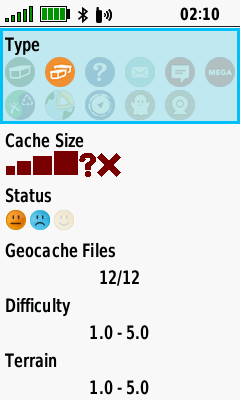

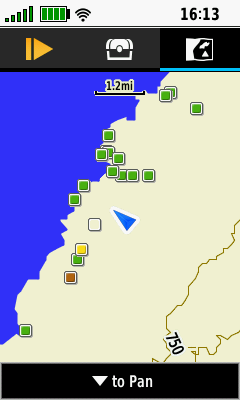

Geocache Filters

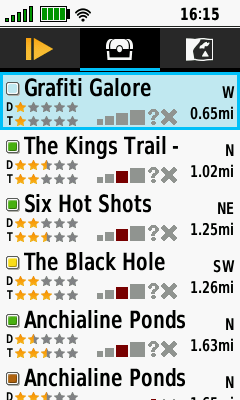

• Each modification to the current filter will be reflected immediately in the geocache list and map display:

No Filters	Geocache List	Geocache Map

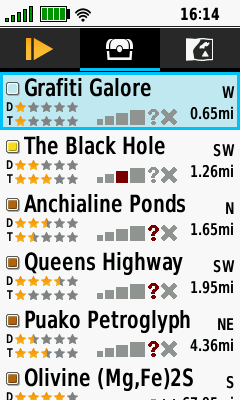

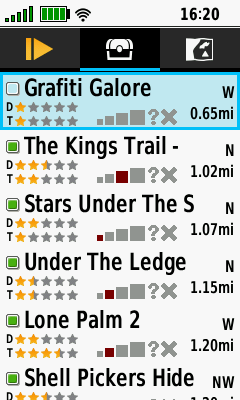

Cache Size Filters added	Filtered Geocache List	Filtered Geocache Map
Cache Type Filters added	Filtered Geocache List	Filtered Geocache Map

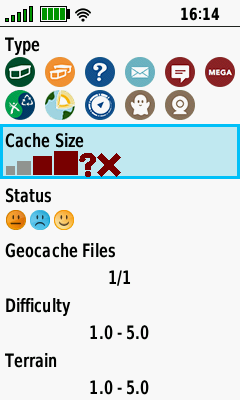

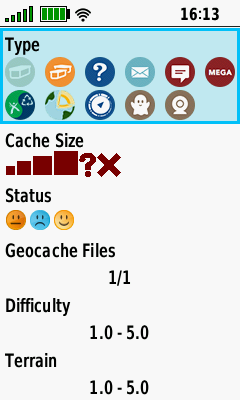

Choose Filters

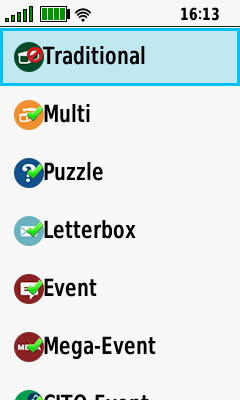

Type

Select [Type]	View available types	Toggle each type as desired	Enabled types are updated

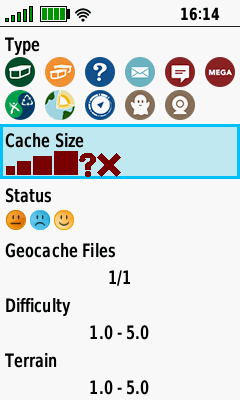

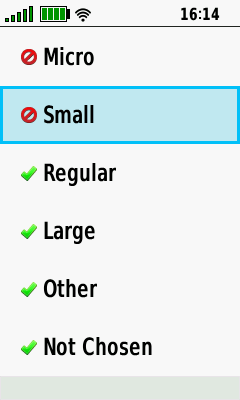

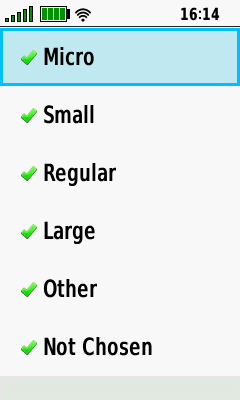

Size

Select [Cache Size]	View available sizes	Toggle each size as desired	Enabled sizes are updated

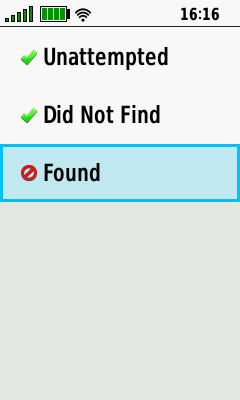

Status

Select [Status]	View current status options	Toggle each status as desired	Status selections are updated



Geocache Files

Select [Geocache Files]	View Current Geocache File Selections	Enable/Disable as desired	Geocache File selections are updated

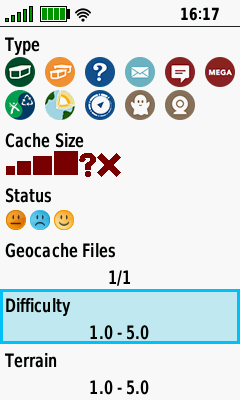

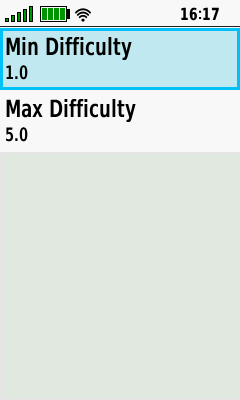

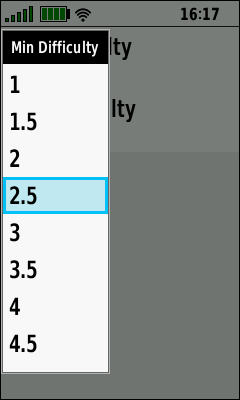

Difficulty

Select [Difficulty]	View current Difficulty options	Adjust Min/Max Difficulty as desired	Difficulty selections are updated

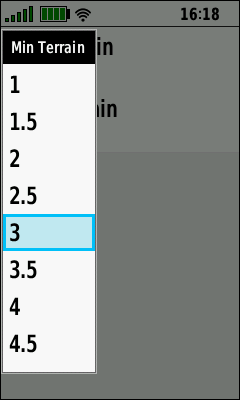

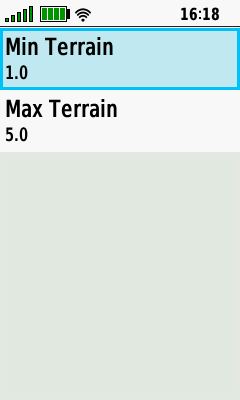

Terrain

Select [Terrain]	View current Terrain options	Adjust Min/Max Terrain as desired	Terrain selections are updated

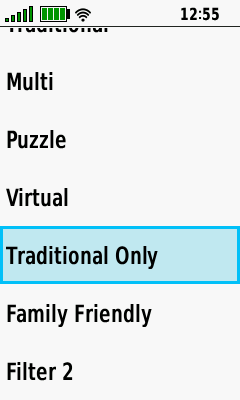

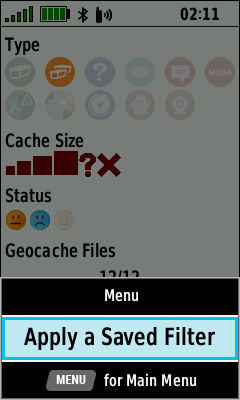

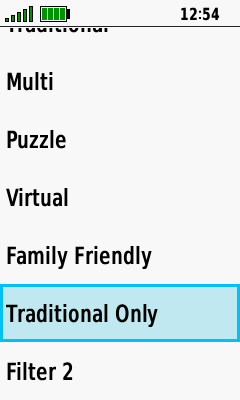

Saved Filters

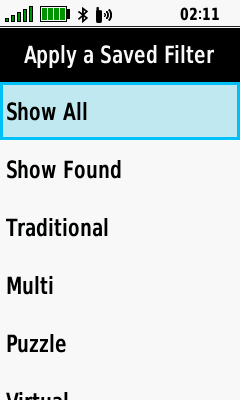

Press (Menu)	Select [Apply a Saved Filter] Press (Enter)	Select desired Filter Press (Enter)	Selected Filter is applied

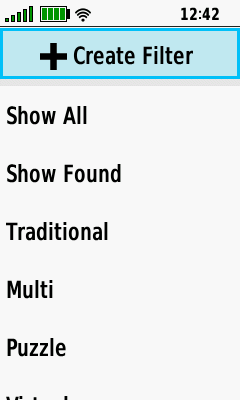

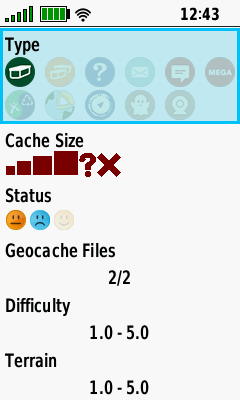

Create Filter

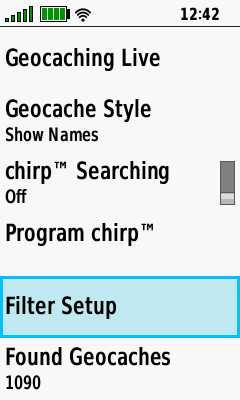

Press (Menu) Select [Geocaching Setup]	Select [Filter Setup]	Select [+Create Filter]	Edit Filters as desired
Press (Quit) when complete	Filter List is displayed	Newly created Filter added to bottom of list

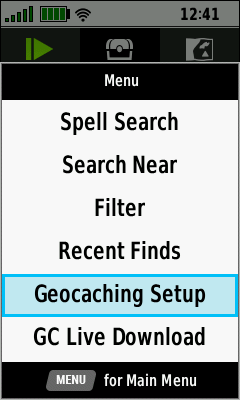

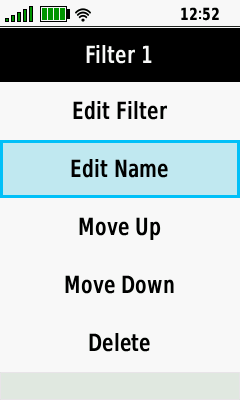

Edit Saved Filter

Press (Menu) Select [Geocaching Setup]	Select [Filter Setup]	Choose desired Filter	Select [Edit Filter] to modify filter settings
Select [Edit Name] to change Filter name	Enter desired text Select [Done]	Press (Quit)	New Filter name is displayed

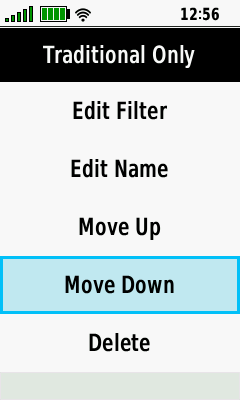

Select [Move Up] to change Filter sequence	Filter moves up one position in Filter list	Select [Move Down] to change Filter sequence	Filter moves down one position in Filter list
Select [Delete] to remove Filter	Selected Filter is removed
