Settings - System

	Expedition Mode
	Satellite
	Solar Auto Wake
	Battery Percent
	Display
	Language
	Waypoints
	Menus
	Units
	Time
	Compass
	Position Format
	Course Transition
	USB Mode
	Software Updates
	Reset

• Open this page by selecting [System] in the Settings Menu.
• View and configure device settings remotely via Explore app.

	Move to previous selection (or) press-and-hold to scroll selections
	Move to next selection (or) press-and-hold to scroll selections
	Return to previous menu (or) press-and-hold to view Glances
	Confirm current selection (or) press-and-hold to Mark Waypoint
	Cycle backlight on/off (or) press-and-hold to open Power Menu

Expedition Mode
Expedition Mode Auto (Expedition Mode is activated automatically after two minutes of device inactivity) Manual (Expedition Mode must be manually activated by the user)
Interval 10 minutes 20 minutes 30 minutes 60 minutes
Satellite
Satellite System GPS Only (also disables Multi-Band) Multi-GNSS Demo Mode
Multi-Band On (also enables Multi-GNSS) Off
Solar Auto Wake
On Off
Battery Percent
On (displays remaining battery life in the Power Menu status bar as 'percent') Off (displays remaining battery life in the Power Menu status bar as 'time remaining')
Display
Brightness 0% 5% (use with night vision devices) 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Timeout 15 Seconds 30 Seconds 1 Minute 2 Minutes Always On
Language
English Español Français Italiano etc.
Waypoints
Auto Name Type Date/Time (disables all Prefix/Suffix options below) Prefix/Suffix
Prefix Enabled On Off (disables Prefix option below)
Prefix {enter desired prefix}
Suffix {enter desired suffix}

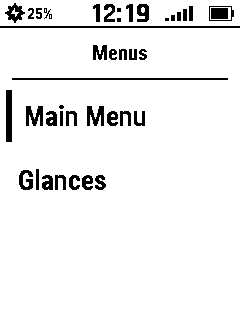

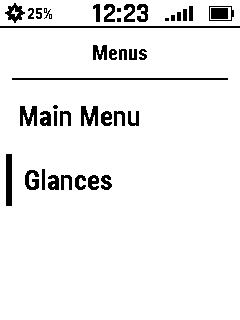

Menus
Main Menu

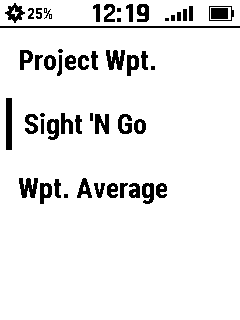

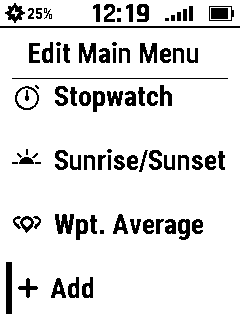

	○ Add Shortcut
	Select 'Main Menu'	Select '+Add'	Select Desired Shortcut
				Move as Desired
		Shortcut Added
	When Complete

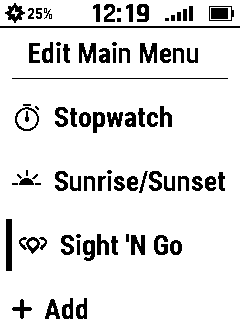

	○ Move Shortcut
	Select 'Main Menu'	Select Desired Shortcut
			Move as Desired	When Complete

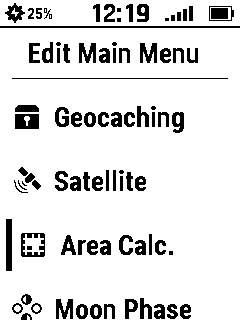

	○ Remove Shortcut
	Select 'Main Menu'	Select Desired Shortcut		Shortcut Removed
			Remove Shortcut
Glances

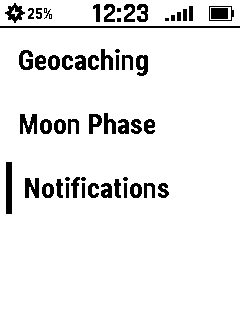

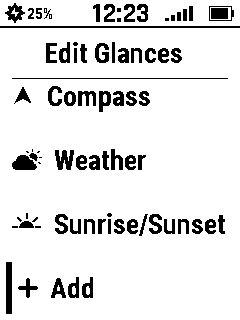

	○ Add Glance
	Select 'Glances'	Select '+Add'	Select Desired Glance
				Move as Desired
		Glance Added
	When Complete

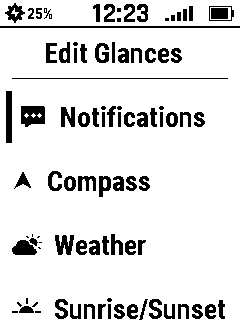

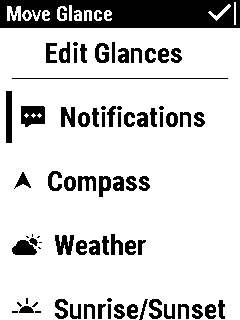

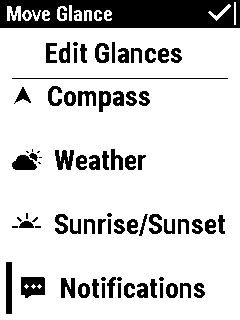

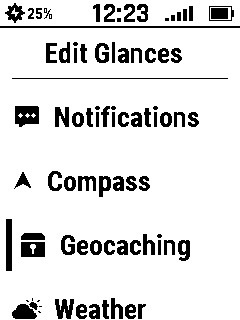

	○ Move Glance
	Select 'Glances'	Select Desired Glance
			Move as Desired	When Complete

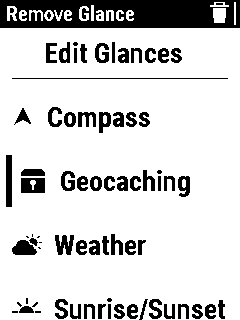

	○ Remove Glance
	Select 'Glances'	Select Desired Glance		Glance Removed
			Remove Glance
Units
Speed/Distance Statute Miles Kilometers Yards Nautical (nm, ft.) Nautical (nm, m)
Wind Speed mph kph kt m/s
Temperature Celsius Farenheit
Vertical Speed feet/min. feet/hour meters/min. meters/sec. meters/hr.
Time
Time Format 12 Hour 24 Hour
Time Zone Automatic (disables Daylight Saving option below) Adelaide Almaty Auckland Bangkok etc.
Daylight Savings (displayed only when Time Zone is not set to Automatic) On Off Automatic
Compass
Display Directional Letters Numeric Degrees Mils
North Reference True Magnetic Grid
Pointer Bearing Course (CDI)
Compass Auto (switches from electronic compass to GPS compass when traveling at higher rates of speed) Off (disables 3-axis compass)
Calibrate
	Start Calibration	Rotate Device Slowly	Continue Calibration	Roll Device Slowly
	Continue Calibration	Flip Device Slowly	Calibration Successful	Calibration Failed
Dashboard None Geocache Large Data Field Small Data Fields Stopwatch
Position Format
Format hddd.ddddd° hddd°mm.mmm' hddd°mm'ss.s" UTM UPS User Grid etc.
Datum WGS 84 WGS 72 NAD83 User etc.
Spheroid WGS 84
Course Transition
Auto Manual Distance
USB Mode
Garmin (Garmin proprietary data transfer format) MTP (Media Transfer Protocol - Provides limited access to internal file structure)

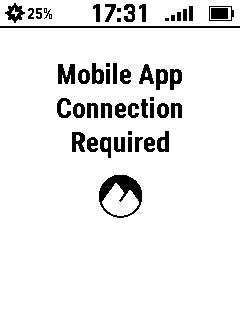

Software Updates
Press OK to check for available software updates (Requires active Bluetooth connection)

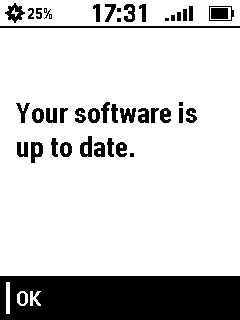

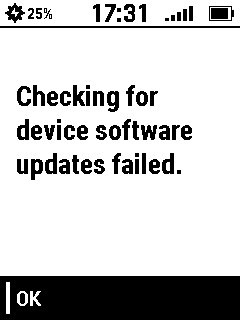

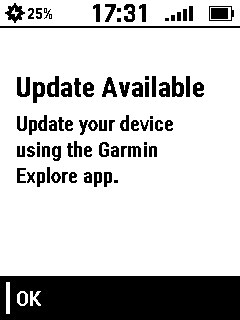

	Pair Phone	No Update Available	Update Available	Update Check Failed
Reset
Reset Trip Data Delete Waypoints (deletes all waypoints) Clear Recording (clears current recording) Reset All Settings (restores default settings without removing any user data) Delete All (restores default settings and removes all user data)
