No Limits

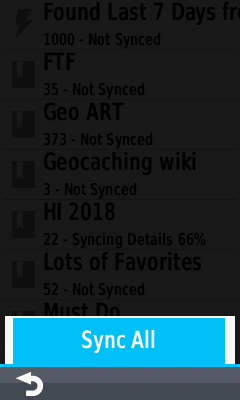

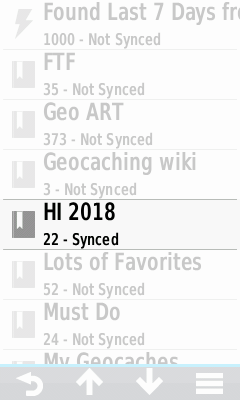

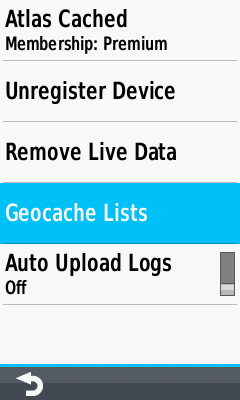

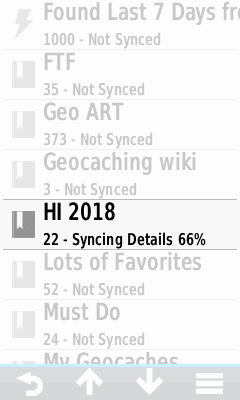

No more picking, choosing and planning, just download them all. The Oregon 7x0 supports virtually unlimited geocaching, indexing up to 4 million geocaches (GPX and/or GGZ format). Access individual geocaches, PQ's and Lists directly from Geocaching.com. Load geocaches from a GSAK database, or use your favorite program or website supporting GPX/GGZ files. All paperless features are available for every geocache. Read complete descriptions, hints and logs. Filter caches by size, terrain, difficulty and type. Enable/Disable individual GPX/GGZ files! Connect to chirp enabled caches. Record and publish your logs while in the field. The Oregon 7x0 provides unparalleled geocaching capability.

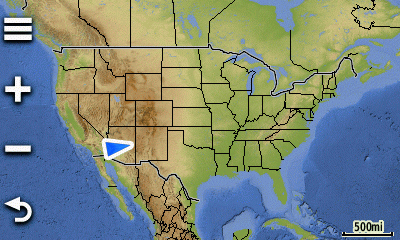

Oregon 6x0 (7x0 similar) with more than 500K geocaches loaded.
Tip: Add benchmarks to your Garmin GPSr!
Tip: Add waymarks to your Garmin GPSr!

New Geocaching features are available with the version 5.20 firmware update:

• New: Geocache child waypoints are now automatically downloaded via GCLive!
• New: Enable Proximity Alarms so you never have to miss another unfound geocache again!

GPX vs GGZ

Use one or the other, or use them both. The Oregon 7x0 provides full geocaching functionality regardless of format. Using GGZ files substantially improves the Oregon 7x0 searching and indexing speeds. GGZ files consist of a compressed geocache GPX archive that includes an XML index containing only the information essential to searching and indexing functions. When a specific geocache is selected, additional information is then retrieved from the corresponding GPX file as required. Removing unnecessary information from the sorting process translates into a more efficient and enjoyable geocaching experience.



GeoCaching User Interface (GCUI)

• All geocaching functions can be accessed from these tabbed menus:

	Active Geocache
	Geocache List
===============
	Geocache Map

• Access geocaching features remotely with the Geocaching Dashboard.

Active Geocache

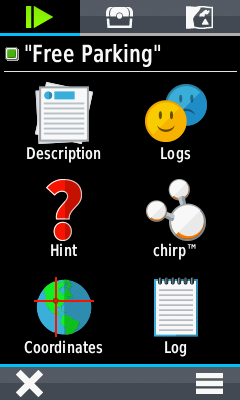

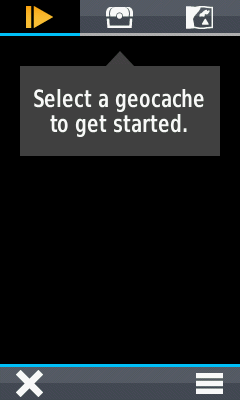

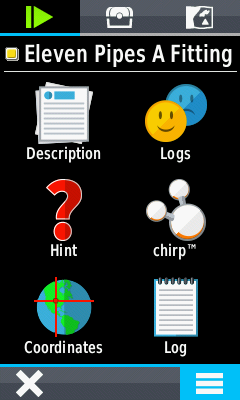

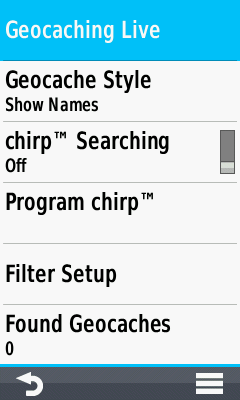

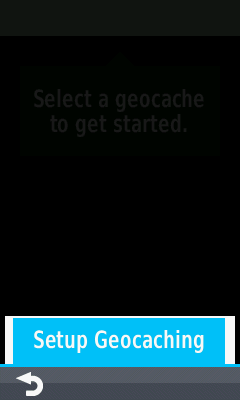

Select a geocache		Active Geocache Menu		Setup Geocaching

Description

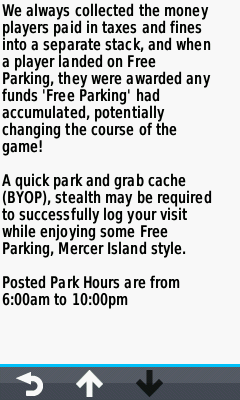

Select [Description]		Geocache description is displayed		Scroll description



Photos

• See Geocaching with Photos for more information

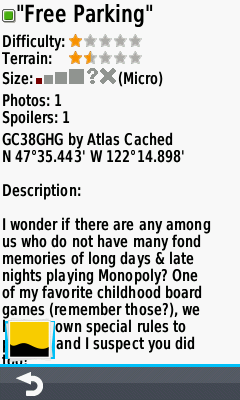

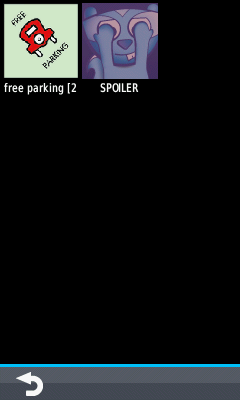

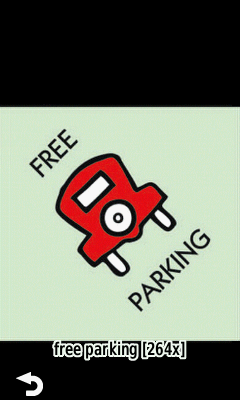

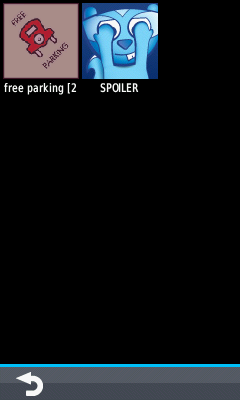

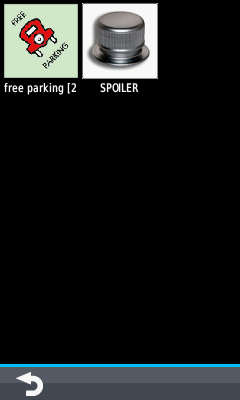

Select photo icon		Photo and spoiler thumbnails are displayed		Select desired thumbnail		Selected image is displayed

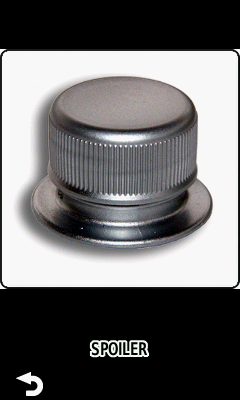

Select spoiler thumbnail		Select Opie to view hidden spoiler image		Spoiler image is displayed		Spoiler thumbnail no longer hidden by Opie





Logs

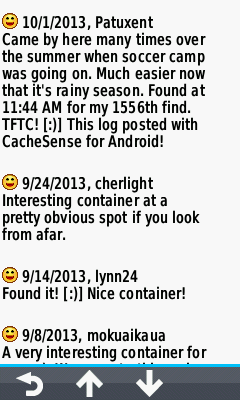

Select [Logs]		Geocache logs are displayed		Scroll logs

Hint

Select [Hint]		View geocache hint



Chirp

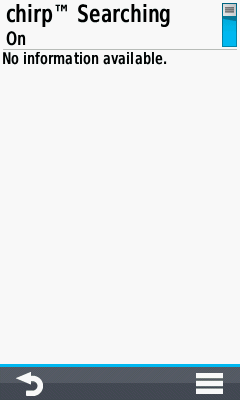

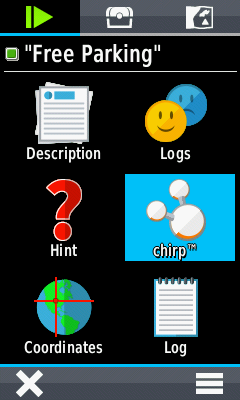

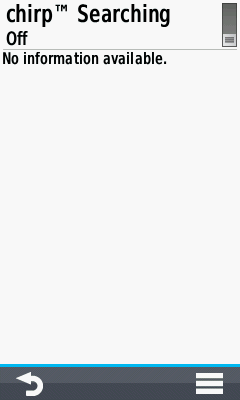

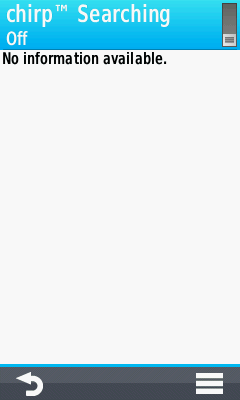

Select [chirp]		chirp searching disabled		Enable chirp Searching		chirp searching enabled

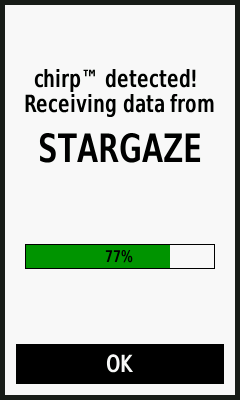

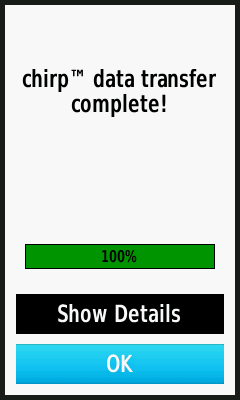

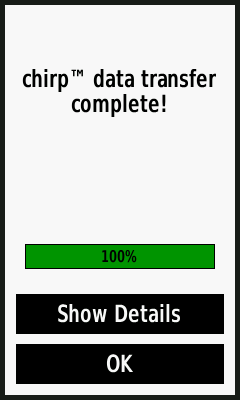

chirp detected!		Data transfer complete		Select [OK]		chirp data displayed
Disable chirp searching to save battery power		Select [Go]		chirp destination enabled (ANT+ logo near compass)		Gold chirp icon indicates chirp data is available



Next Stage

Enter Coordinates

Select [Coordinates]		Enter desired coordinates				New destination enabled



Save Waypoint

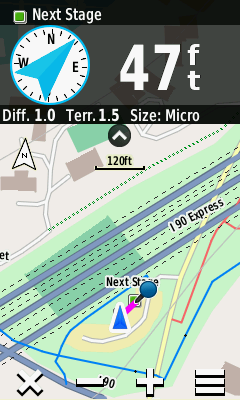

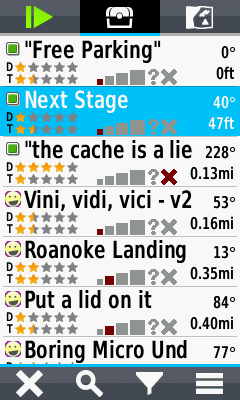

Create Next Stage		Select Geocache List		Select [Next Stage]		Next Stage shown on map
Select [Info Box]		Select [Mark Waypoint]		Select [OK]		Edit saved waypoint

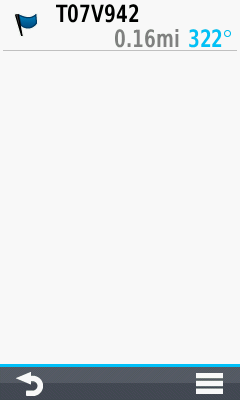

Child Waypoints

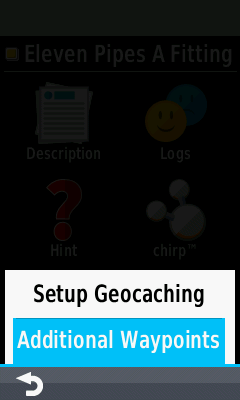

		Select [Additional Waypoints]		Child waypoints for active geocache are displayed		Select desired waypoint

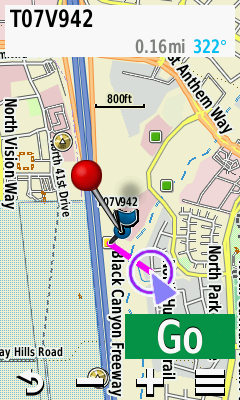

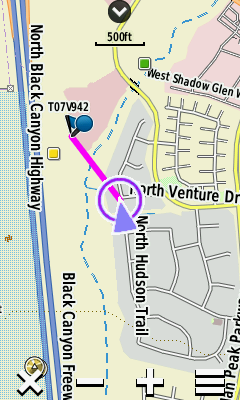

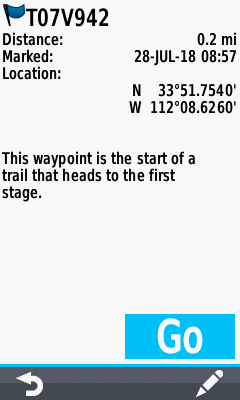

The selected waypoint is displayed on the map		Select [Info Box] to view waypoint details		Select [Go] to begin navigation		Child waypoint navigation begins



Create Log

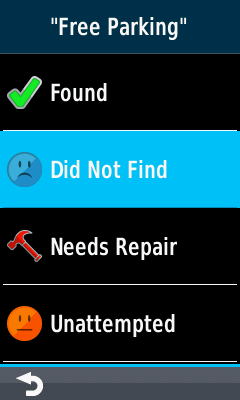

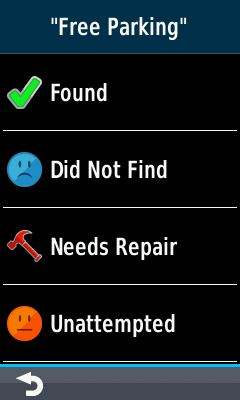

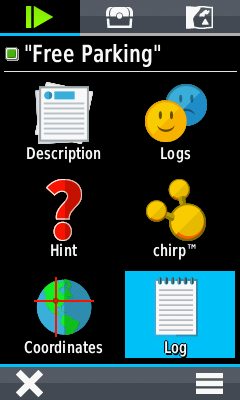

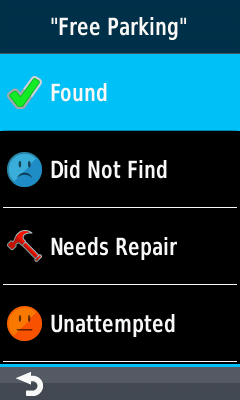

Select [Log]		Choose Log Type



Found

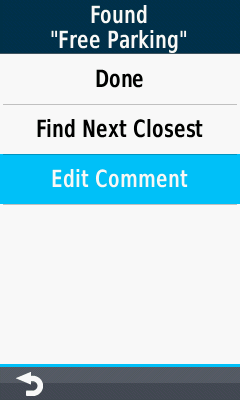

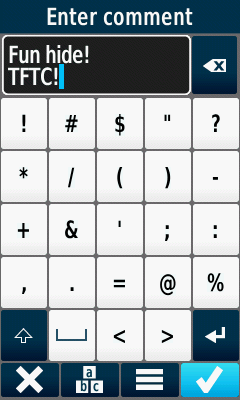

Select [Found]		Select [Edit Comment]		Enter Field Notes		[Done] Must be selected to save results



Did Not Find

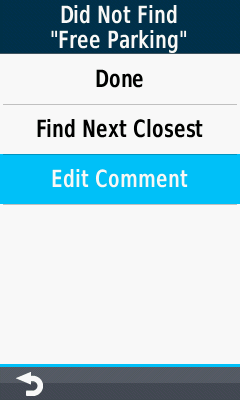

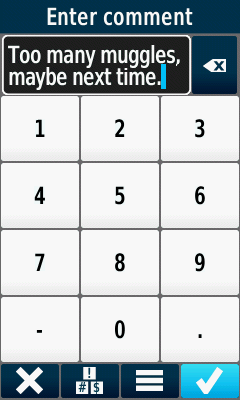

Select [Did Not Find]		Select [Edit Comment]		Enter comment		[Done] Must be selected to save results

Needs Repair

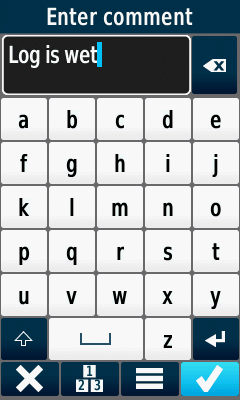

Select [Needs Repair]		Select [Edit Comment]		Enter Comment		[Done] Must be selected to save results

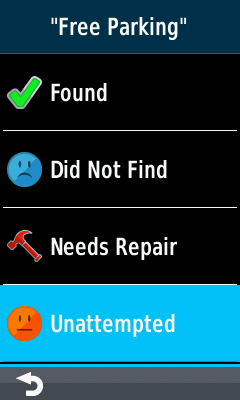

Unattempted

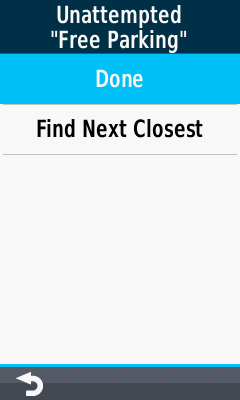

Select [Unattempted]		Select [Done] to mark geocache as not found



Geocache List

• The geocache list will reflect any currently active geocache filter.
• Only the nearest 1000 geocaches within a radius of approximately 100 miles from your present location will be displayed.
• Geocaches beyond these boundaries will appear on the map when viewed at or below the selected geocache zoom level.
• Use Search Near to view a list of geocaches by proximity to a user specified location.
• If geocaches loaded on the GPSr are not displayed, try setting the active filter to Show All.

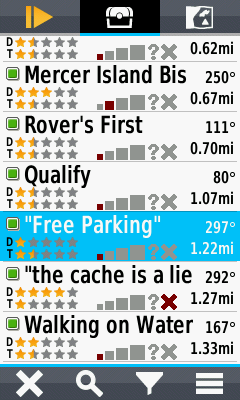

Choose Geocache

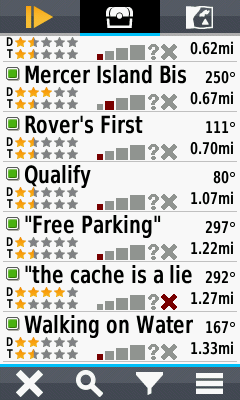

Select Geocache List Tab		Choose desired geocache		Selected geocache displayed on map		Select [Go]



Spell Search

Select Search		Select [Spell Search]		Enter search term		Choose from search results

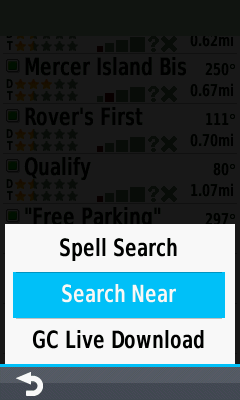

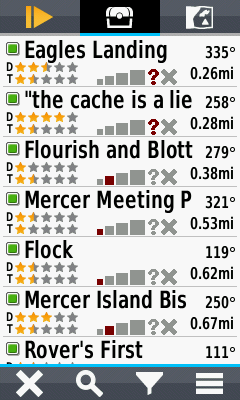

Search Near

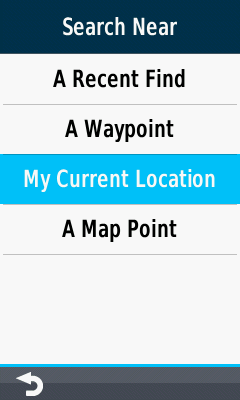

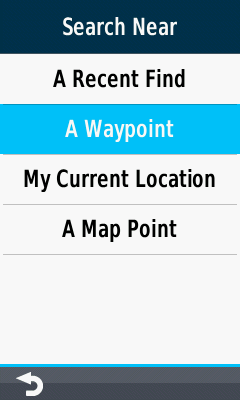

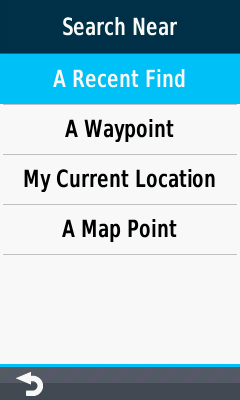

Select Search		Select [Search Near]		Select [A Recent Find]		Choose a recent find
Select [A Waypoint]		Choose a nearby waypoint		Select [My Current Location]		Geocaches near current location listed by proximity
Select [A Map Point]		Move Red Pin to desired location		Select [Use]		Geocaches near selected location listed by proximity



GC Live Download

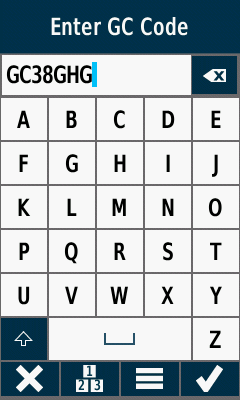

Select Search		Select [GC Live Download]		Select [GC Code]		Enter Desired GC Code

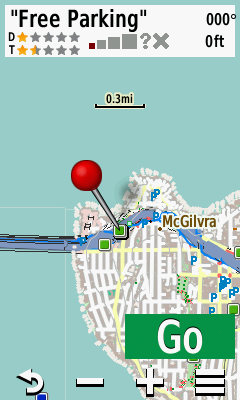

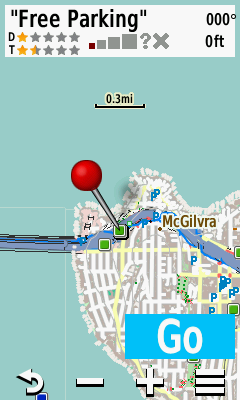

		Geocache Displayed on Map Screen		Select [Go]		Select [Download Near]



Filter

Select Filter		Choose Desired Filters

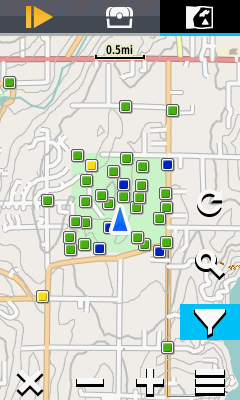

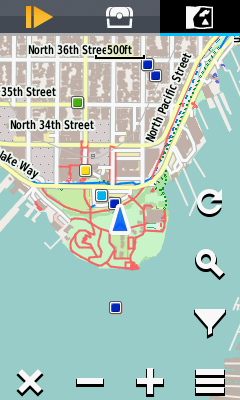

Geocache Map

• The geocache map will reflect any currently active geocache filter.
• If geocaches loaded on the GPSr are not displayed, try setting the active filter to Show All and check Map Page geocache zoom settings.

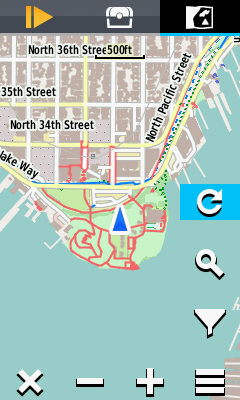

Refresh

Current Location

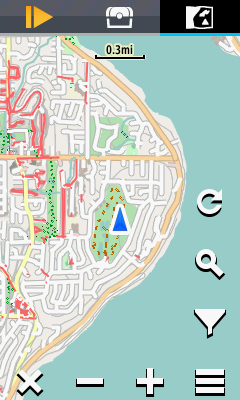

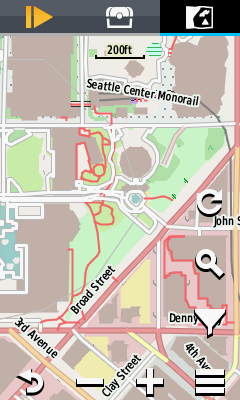

Geocache Map display		Select Refresh		Geocaches are added to the map display



Pan Map

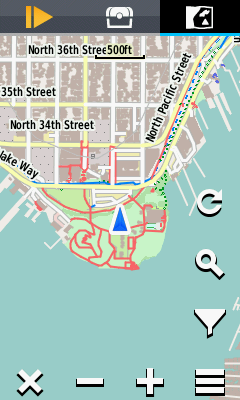

Pan Geocache Map to desired location		Select Refresh		Geocaches are added to the map display



Pinned Location

Touch desired map position to place red pin		Select Refresh		Geocaches are added to the map display		Geocaches may be added beyond initial zoom level



Search

Geocache Map display		Select Search		Search Menu		Select [GC Live Download]



Filter

Geocache Map display		Select Filter		Choose Desired Filters

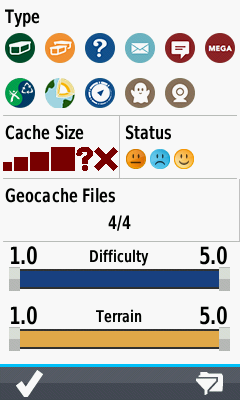

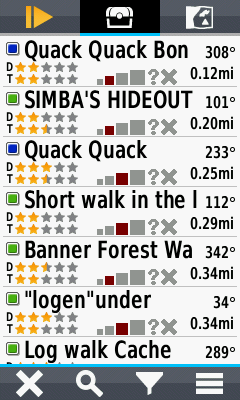

Dynamic Filters

• Each modification to the current filter will be reflected immediately in the geocache list and map display:

No Filters		Geocache List		Geocache Map
Cache Size Filters added		Filtered Geocache List		Filtered Geocache Map
Cache Type Filters added		Filtered Geocache List		Filtered Geocache Map

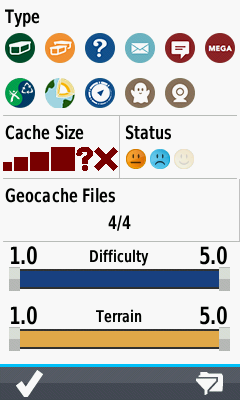

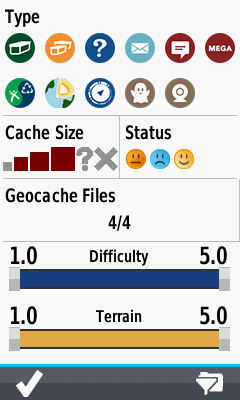

Choose Filters

Type

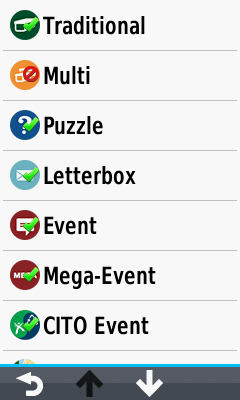

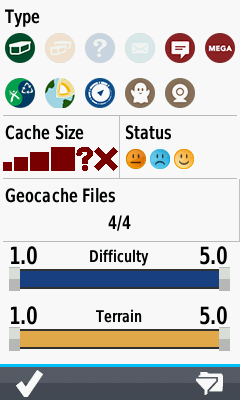

Select [Type]		View available types		Select desired type		Type availability is toggled
Toggle each type as desired		When complete		Enabled types are updated

Size

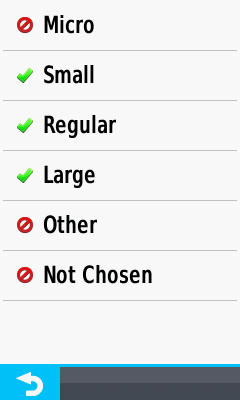

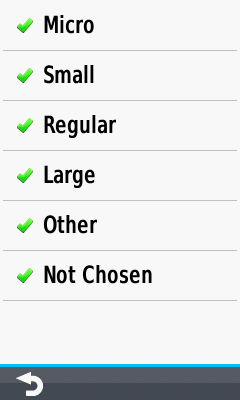

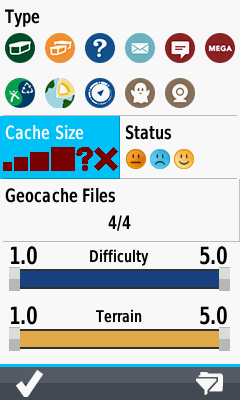

Select [Cache Size]		View available sizes		Select desired size		Size availability is toggled
Toggle each size as desired		When complete		Enabled sizes are updated

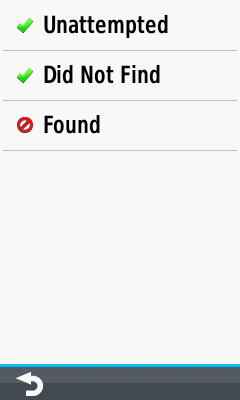

Status

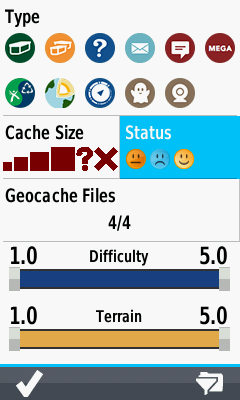

Select [Status]		Enable/Disable as desired		When complete		Status selections are updated

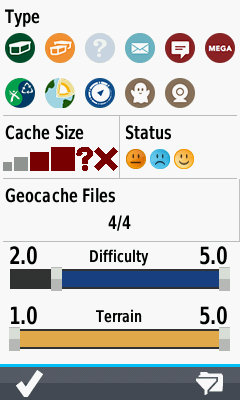

Difficulty		Terrain

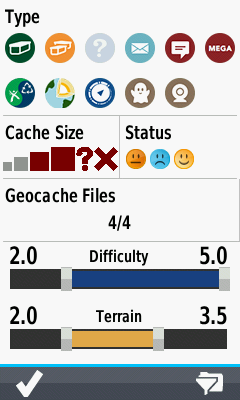

Adjust Difficulty Minimum & Maximum		Adjust Terrain Minimum & Maximum		Choose from filtered results

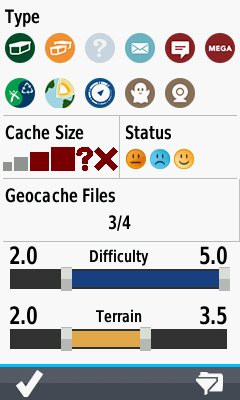

Geocache Files

Select [Geocache Files]		Enable/Disable as desired		When complete		Status selections are updated





Saved Filters

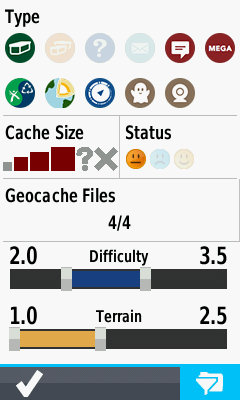

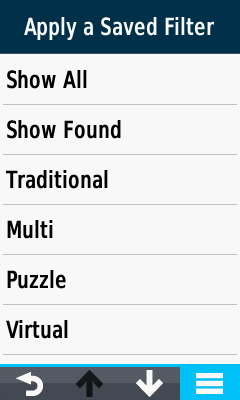

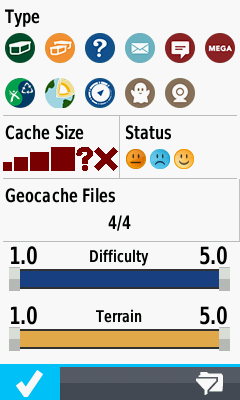

Select [Saved Filters]		Choose desired filter		Selected filter is applied		Geocache Map filtered results

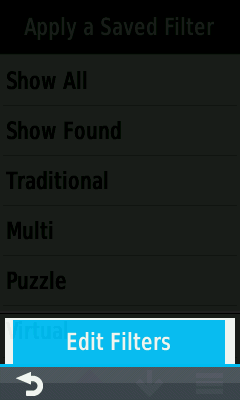

Create Filter

				Select [Edit Filters]		Available Filter Menu

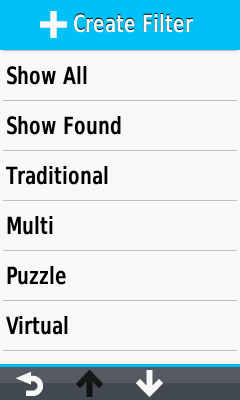

Select [+Create Filter]		Create Desired Filter		Select new filter		Select [Edit Name]

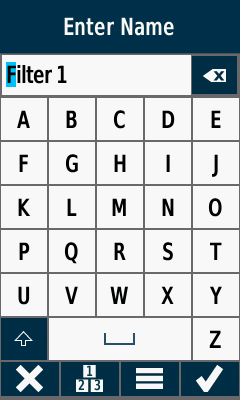

Enter desired name				Filter name is updated

Edit Saved Filter

				Select [Edit Filters]		Choose a filter to edit
