Carried over from the Oregon 6x0 (shown below):

Get Your Track On

• Managing a Track Log Recording has never been easier!
• Carried over from the Oregon 6x0, the Current Activity application combines frequently used Track Log controls and information into an efficient and easy to use menu driven interface.
• The new Current Activity title is synonymous with the Current Track title found on older Garmin outdoor GPSr.
• Operate Current Activity functions remotely with the Stopwatch dashboard.

Dynamic Icon

• The Current Activity icon changes appearance in response to track recording status and track color, providing useful information directly from the Main Menu page.
• The icon border/outline indicates the current track color.
• The Play/Pause symbol indicates current track recording status; Green for active, Yellow for inactive.

	Recording
	Not Recording	===

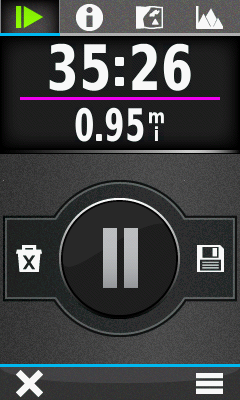

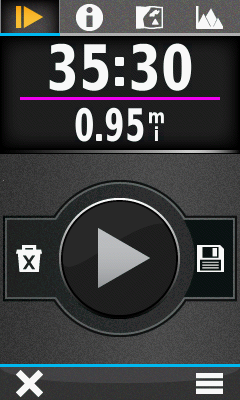

Current Track Control

• View current track time, distance, and color.
• Quick access to Track Log controls.

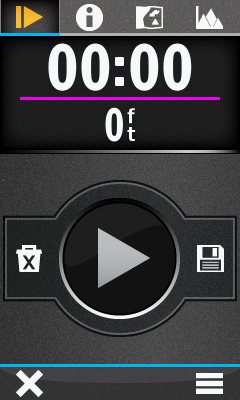

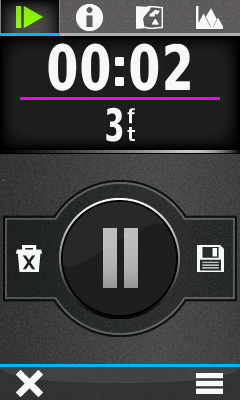

Start Track Recording

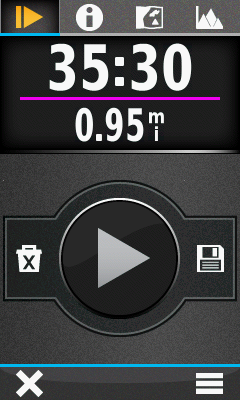

	Track recording inactive		Activate track recording function		Track recording active

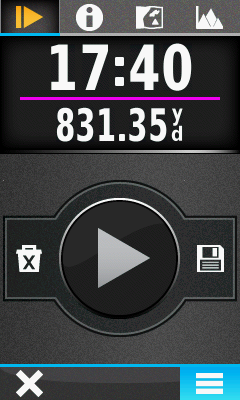

Stop Track Recording

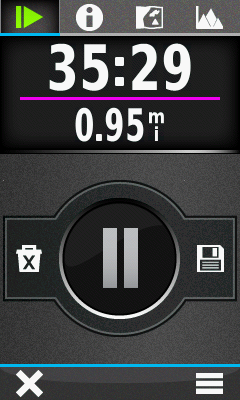

	Track recording active		Pause track recording function		Track recording inactive

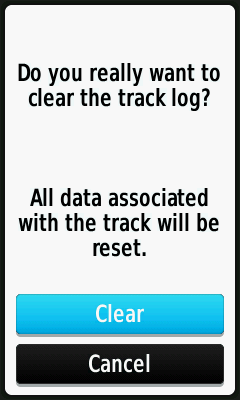

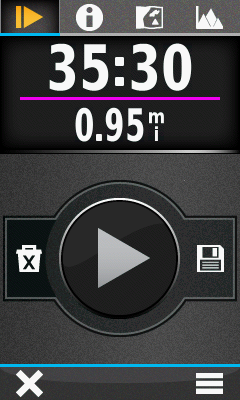

Clear Track Recording

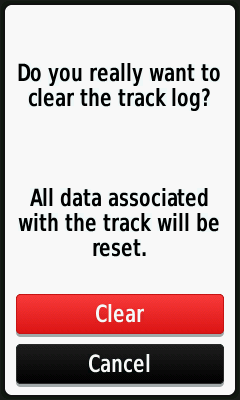

	Clear track log		Clear track log confirmation		Select [Clear] to proceed		Select [Cancel] to abort

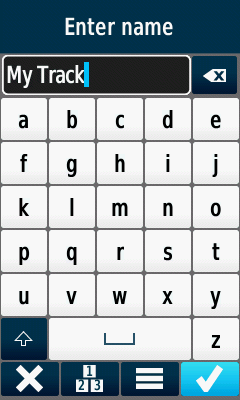

Rename Track Recording

	Save track log		Save Track Menu		Select track name		Hold to clear text

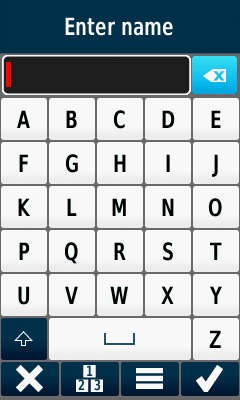

	Enter desired track name		Finished		Track name updated

Save Track Recording

Clear Data On Save

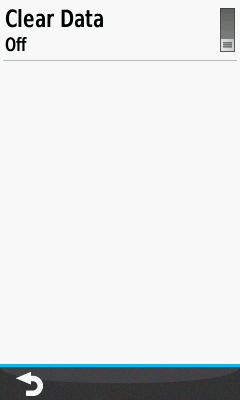

	Save track log		Select Option Menu		Toggle [Clear Data] Off to keep data after save		Toggle [Clear Data] On to delete data after save

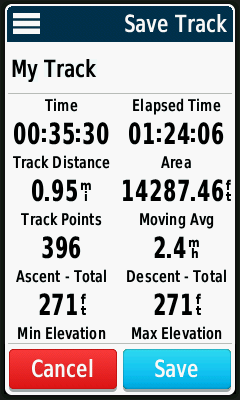

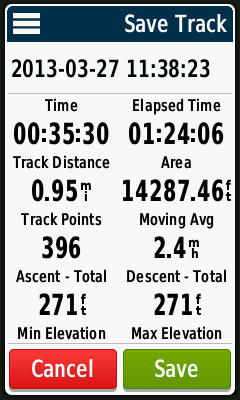

Save Complete Track

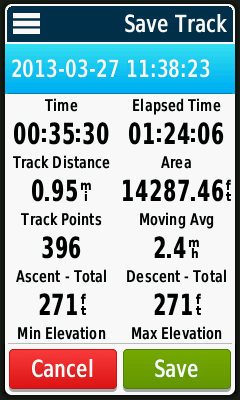

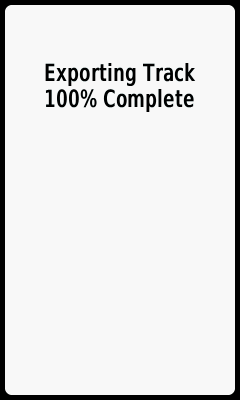

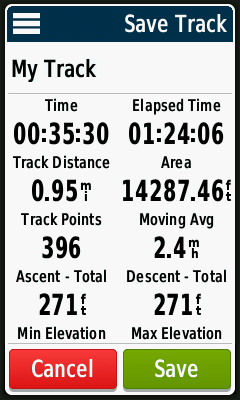

	Save track log		Save Track Menu		Select [Save]		Export Complete

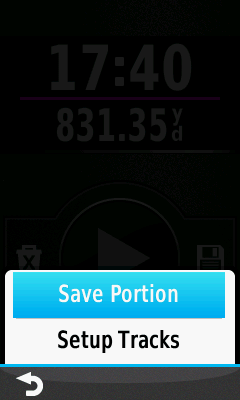

Save Partial Track

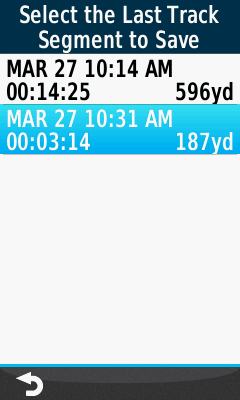

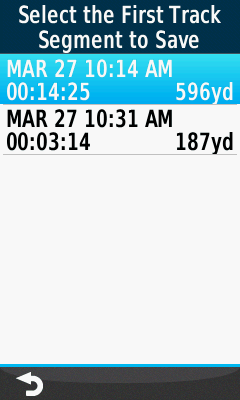

	Select Option Menu		Select [Save Portion]		Select first track segment		Select last track segment

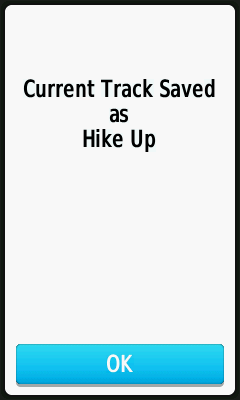

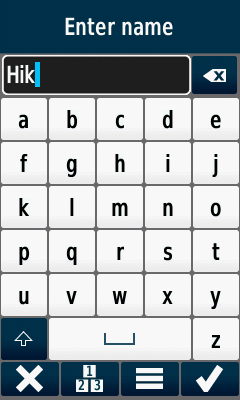

	Enter desired track name		Finished		Track export complete		Select [OK]

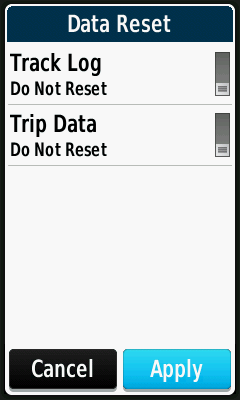

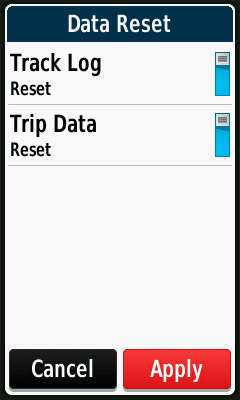

Data Reset

• Clear Track Log data, Trip Computer data, both, or neither.
• Only available when [Setup > Recording > Advanced Setup > Recorded Data Reset > Prompted]

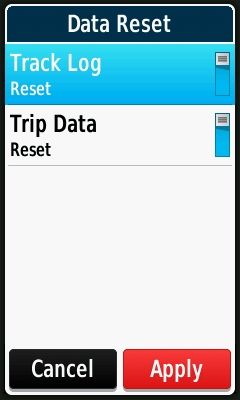

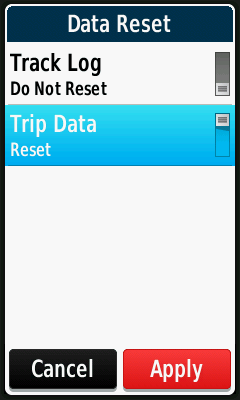

Data Reset Menu		Toggle [Track Log] Reset On/Off		Toggle [Trip Data] Reset On/Off		Select [Apply]

Current Track Information

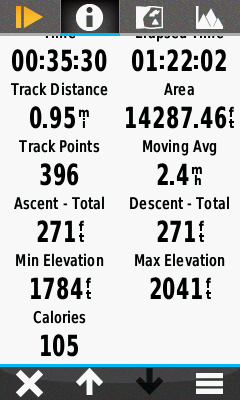

Track Data

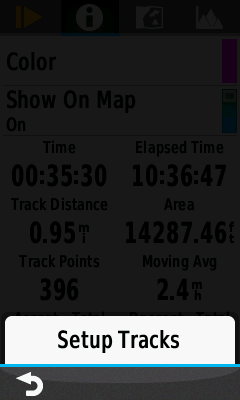

		View track settings and collected data	Scroll track data		[Setup Tracks]

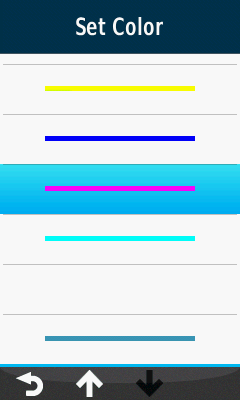

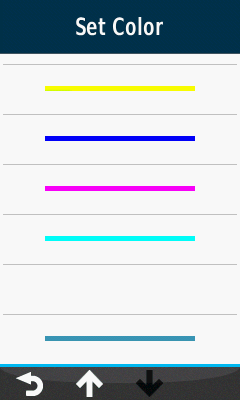

Track Color

	Select [Color]		Scroll color options		Select desired color		Track color is adjusted

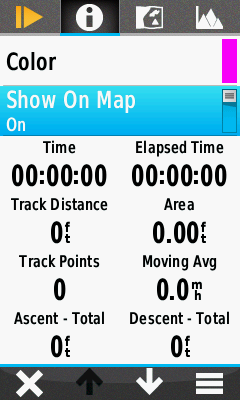

Track Visibility

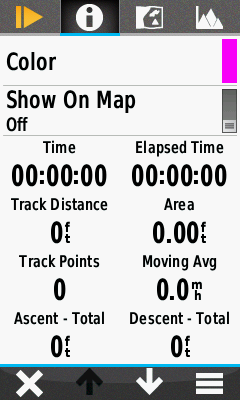

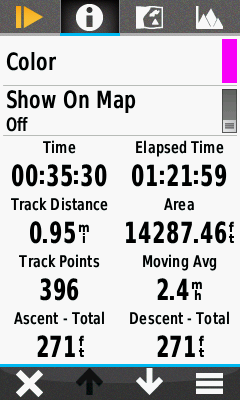

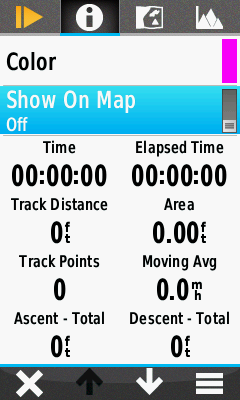

	Toggle [Show On Map] Off		Track will show on map		Toggle [Show On Map] On		Track hidden on map

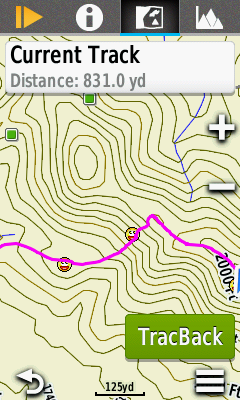

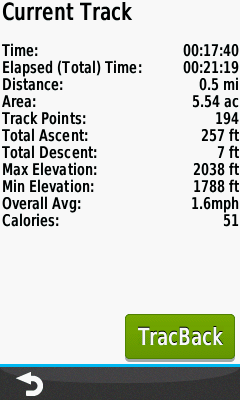

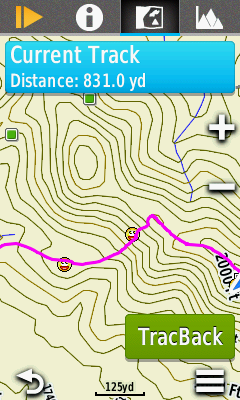

Current Track Map

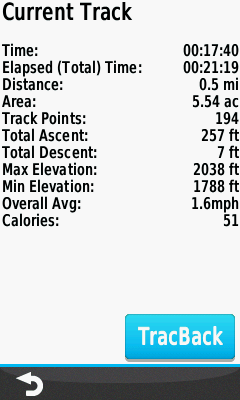

	Map page auto-zooms to current track		Select [Current Track]		Current Track details		Select [TracBack] to swap Start and Finish points and navigate track in reverse

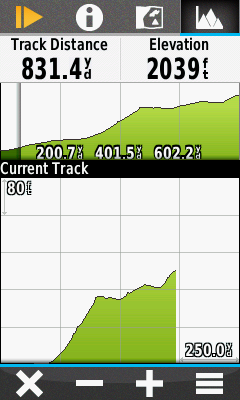

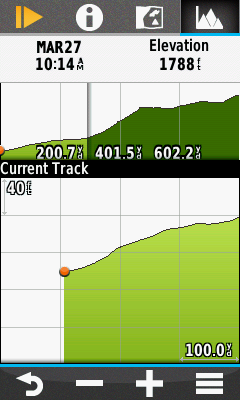

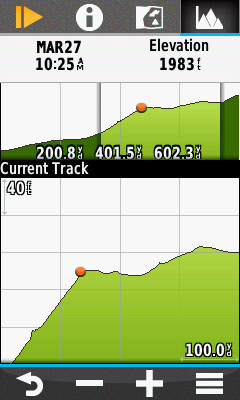

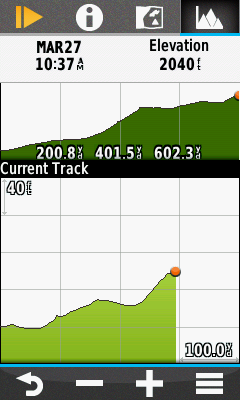

Current Track Graph

	Current Track Elevation Plot		Pan & Zoom Elevation Plot as desired
