The Artist Formerly Known as Activity History

• Review Garmin Fitness (*.fit) files stored on your Montana 7x0.
• Recorded Activities can be imported into Garmin Connect or BaseCamp.
• Activity files save date, time, distance, calories, speed, ascent, descent, and available sensor data.





Activity Limits

• The Montana 7x0 can index up to 300 individual Activity (*.fit) files, each up to 20,000 points in length.
• Activity files over 20,000 points are filtered on device to maximize rendering efficiency without modifying the original *.fit files.
• The Montana 7x0 will auto-archive the current activity and begin a new recording (as configured) when approaching the 20,000 activity point limit.
• Garmin Connect limits files to 25MB and 99,999 total points (maximum length of 27 hours when using a one second recording interval).





Activity Management

• Garmin FIT file recording is enabled by default (and can not be disabled) in [Setup > Recording > Advanced Setup > Output Format].
• Recorded Activities are saved to the [GPSR]\Garmin\Activities\ directory.
• Activity recording can be synchronized with Stopwatch activity.
• Activities completed from the Stopwatch page while 'Activity Sync' is enabled can be identified by a 'Stopwatch' suffix in the file name.

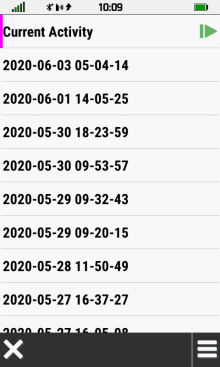

Select Activity

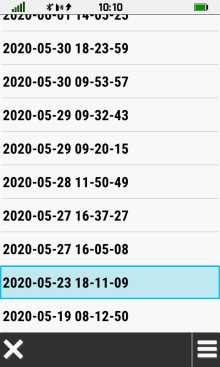

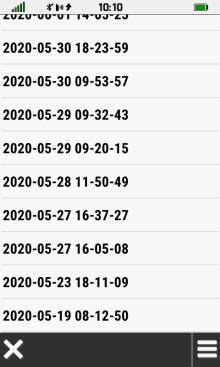

View saved activities	Scroll to view all activities	Select desired activity	Open [Current Activity]

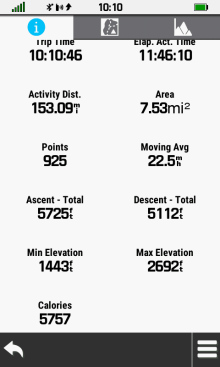

View Activity Info

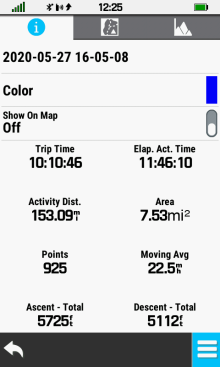

Select desired activity	Open Information Tab	Scroll to view all information

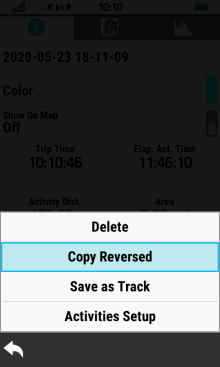

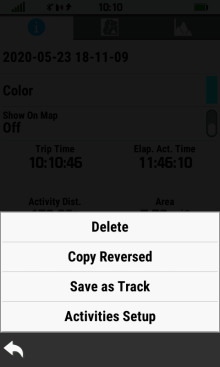

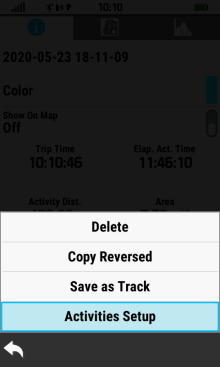

[Delete]	[Copy Reversed]	[Save as Track]	[Activities Setup]

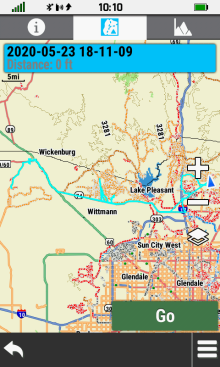

View Activity Map

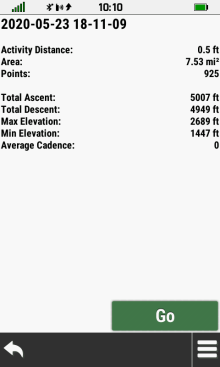

Select desired activity	Open Map Tab	Select [Info Box]	View activity details

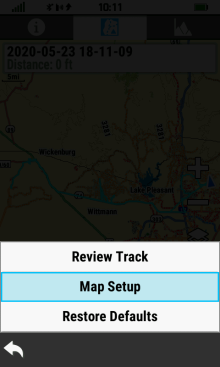

	[Review Track]	[Map Setup]	[Restore Defaults]

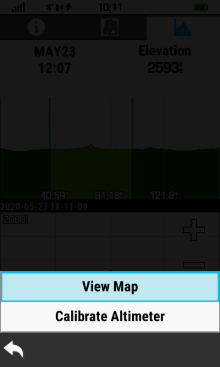

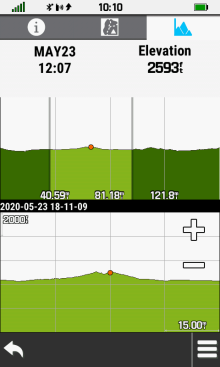

View Activity Plot

Select desired activity	Open Elevation Plot Tab	Select desired plot point	[View Map]

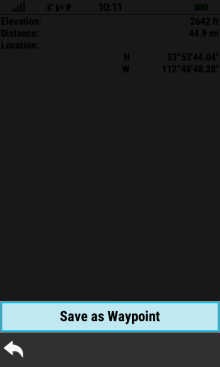

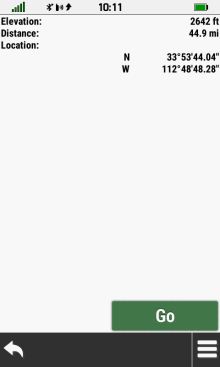

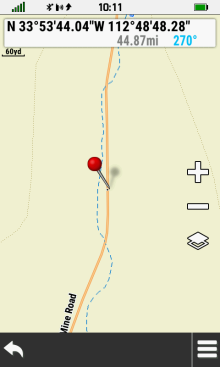

Selected location shown on map	Select [Info Box]	View point details	[Save as Waypoint]

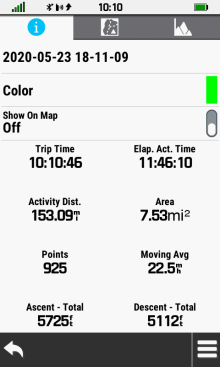

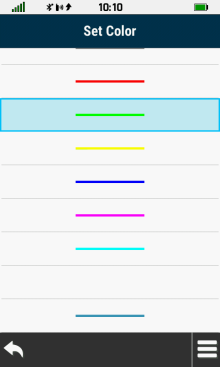

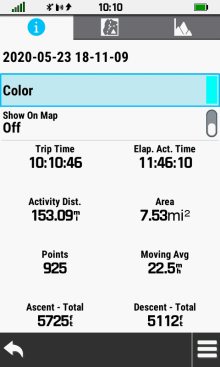

Edit Activity Color

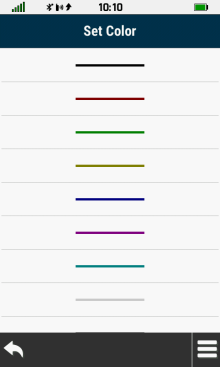

Select [Color]	Scroll available colors	Select desired color	Activity Color is updated





Activity Visibility

Select [Show On Map Off]	Activity will show on map	Select [Show On Map On]	Activity hidden on map

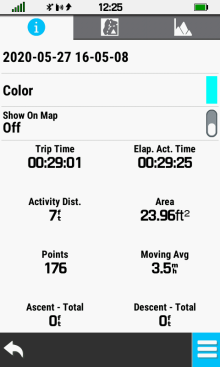

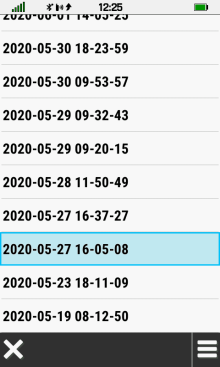

Save as Track

Select desired activity		[Save as Track]	[OK]

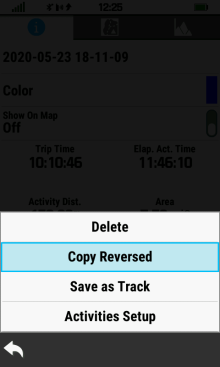

Copy Reversed

• '!' Prefix is automatically added to all Reversed Activities, and can be edited if desired.

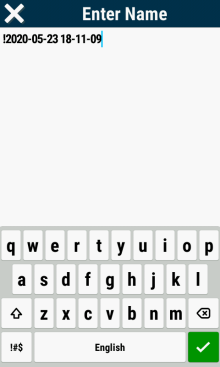

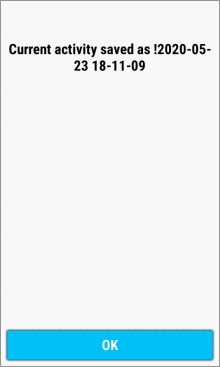

	Select [Copy Reversed]	Edit Activity Name if desired	[OK] Reversed Activity is saved

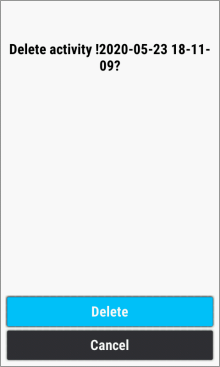

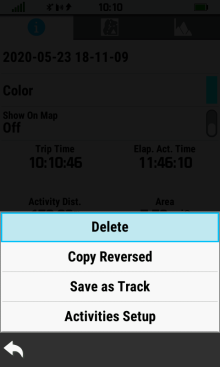

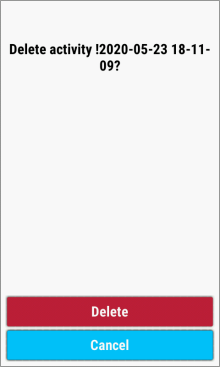

Delete Activity

	Select [Delete]	Select [Delete] to proceed	Select [Cancel] to abort
