Stay Powered
The Garmin GPSMAP 67 is equipped with an internal rechargeable 3100 mAh Li-ion battery.- The GPSMAP 67 can provide 180 hours of power in GPS mode, or 840 hours when using Expedition mode.
- The GPSMAP 67i can provide 165 hours of power with 10 minute tracking enabled, or 425 hours with 30 minute tracking in Expedition mode.
- When necessary, the battery can be charged in the field by connecting a compatible external power supply.
Charging the Battery
- The GPSMAP 67 will charge the internal Li-ion battery while an external power source is connected.
- The back cover may reach external temperatures > 95°F (35°C) during the charging process.
- Completely charging a fully depleted battery may require 10+ hours.
Maximizing Battery Life
- Li-ion batteries can retain their charge for long periods of time between uses.
- When storing the device for longer periods of time, the battery should be charged fully at least once every year.
- Several options are available to extend battery life:
- Turn the Backlight off when not absolutely needed
- Decrease Backlight Brightness
- Reduce Backlight Timeout
- Disable Always On Display
- Disable Wi-Fi
- Disable Bluetooth
- Disable ANT+ Sensors
- Disable the magnetic compass
- Disable Multi-GNSS
- Disable Multi-Band
- Configure Altimeter - Pressure Trending for 'Save When Power On'
- Adjust Recording Controls to 'Auto' or 'Off'
- Set Map Orientation to 'North Up', not 'Track Up'
- Use the Compass, Trip Computer or Active Route pages while navigating instead of the Map page
- Enable
Expedition Mode when permissible
- See also: inReach Battery Life
Battery Display
- The GPSMAP 67 battery icon provides information about the battery charge level, charging status, and current power source.
- Remaining battery capacity is updated dynamically based on current battery load conditions.
Powered On
- Current power information can be viewed in the Status Bar, Status Page, Small Data Fields, and Large Data Field:
 |
 |
 |
 |
|||
|---|---|---|---|---|---|---|
 |
 |
 |
 |
|||
| Remaining Battery Capacity |
Charging Process Active |
Battery Fully Charged |
External Power Source |

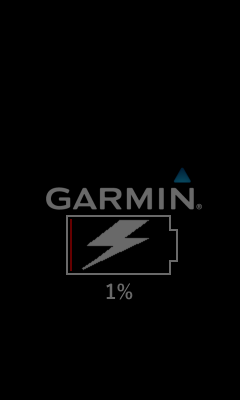

Standby Mode
- The GPSMAP 67 can not charge the battery pack while powered off, but can be put into a 'standby mode' by pressing and holding the power button.
- Connected to an external power source and placed into 'standby mode', the GPSMAP 67 will charge the internal battery to full capacity:
 |
======== |
 |
|
|---|---|---|---|
| Charging Process Active | Battery Fully Charged |
Power Options
- Multiple options are available to help keep your GPSMAP 67 running for as long as you are:
|

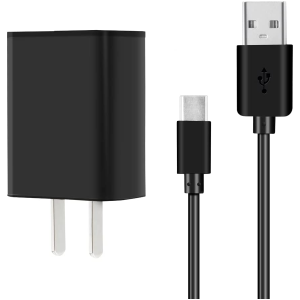

External AC |
||
|---|---|---|
|
|
|
|
|

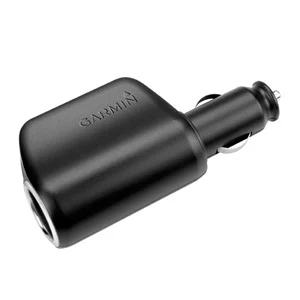

External DC |
||
|
|
|
|
|
Universal DC |
||
|
|
|
|
|

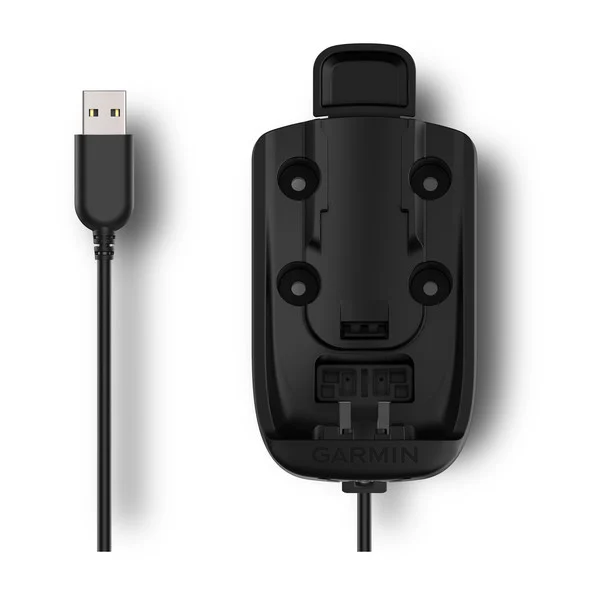

Powered Mount |
||
|
|
|
