Chirp



What is chirp?

The Garmin chirp is a unique wireless beacon designed specifically for geocaching. Affordable, durable and waterproof, chirp can communicate with, and be programmed by compatible Garmin handheld devices. Chirp can store hints, multi-cache coordinates, count visitors and confirm a cache is nearby.

With chirp, setting up and maintaining a multi-cache has never been easier. Using compatible Garmin handheld devices, chirp automatically transmits programmed coordinates so other geocachers can find each stage of your multi-cache, so there’s no need to manually enter numerous sets of complex coordinates – there’s just one simple touch and you’re on your way to the next stage!

Chirp is password protected, so you’re the only one with programming powers. The chirp battery is easy to replace, and can provide power for up to one full year of operation. Chirp is small enough to fit into most cache hides, so when other geocachers arrive near your cache, they’ll be alerted that your cache is nearby, and they’ll be able to access the hints and coordinates you have programmed. And when you return, chirp will tell you how many visitors have been to your cache.

Read the Garmin chirp press release.



chirp Specification

Part Number		010-11092-20
Dimensions		1.3" x 0.9" x 0.3" (3.3 x 2.3 x 0.7cm)
Weight		< 1 oz (28g)
Battery Type		User replaceable CR2032 or BR2032
Battery Life		Up to 12 months
Water Resistance		IPX7 (Water resistant to 32.9ft. or 10m)
Operating Temperature		CR2032: -04°F to 140°F (-20°C to 60°C) / BR2032: -22°F to 176°F (-30°C to 80°C)
Radio Frequency		2.4 GHz ANT+ wireless communication protocol
Range		Up to 32 ft (10m)
Password Protection		Yes



chirp Access

Select [Setup]	Select [Geocaching]	Geocaching setup menu with chirp access



chirp Searching

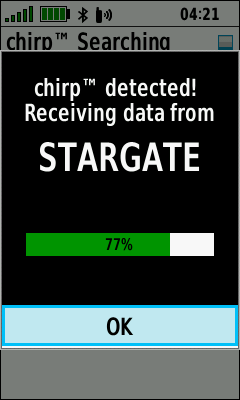

Open Geocaching setup menu	Toggle [chirp Searching] On	chirp Searching enabled	Chirp detected!

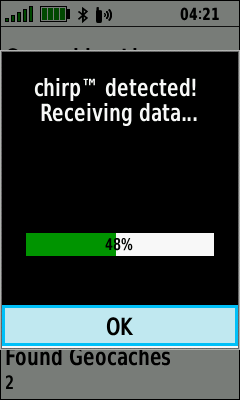

Discover a New chirp

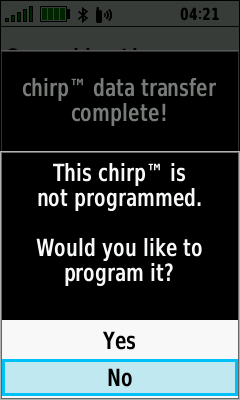

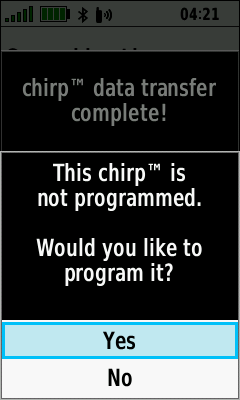

Initiate chirp search	Blank chirp detected	Select [Yes] to program chirp	Select [No] to exit

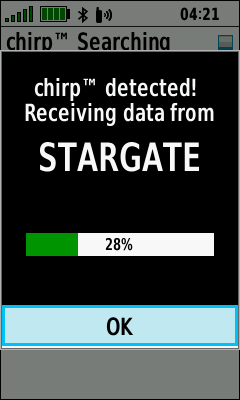

Discover a Programmed chirp

Initiate chirp search	Programmed chirp detected	[OK] exits to Geocaching setup menu	[OK] exits to Geocaching setup menu

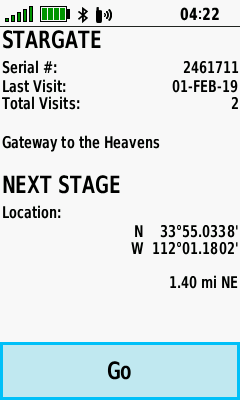

[Show Details] to view chirp details	chirp information displayed	[Go] Begins navigation to chirp coordinates	[Edit] option provided to chirp owner



Access a Programmed chirp

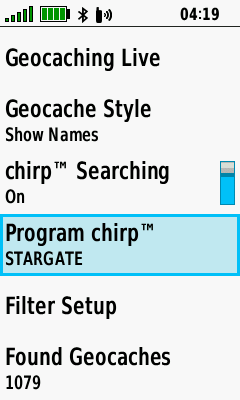

From Geocaching setup menu Select [Program chirp]	Enter last 5 digits of chirp owner unit ID to unlock	Select [Done] when complete	Incorrect PIN warning



Edit a Programmed chirp

Access a Programmed chirp	[Change Name]	Edit Name	[Change Message]
Edit Message	[Change Coordinates]	[Waypoint]	Choose desired Waypoint
[Geocache]	Choose desired Geocache	[Manual Entry]	Edit Coordinates

Program a Blank chirp

• Blank chirp will adopt last 5 digits of the programming GPSr unit ID as PIN for future access
• Programmed chirp will require PIN (last 5 digits of chirp owner GPSr unit ID) to unlock
• Programming chirp with owner GPSr does not require PIN entry
• Programmed chirp without owner GPSr or PIN can not be modified



Send Waypoint

Open Geocaching setup menu	Select [Program chirp]	Select [Send Waypoint]	Make selection from available waypoints

Send Geocache

Open Geocaching setup menu	Select [Program chirp]	Select [Send Geocache]	Make selection from available geocaches

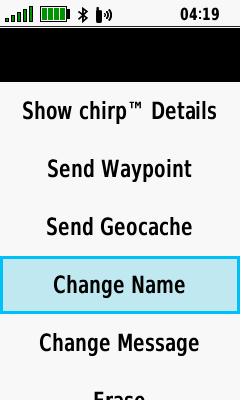

Change Name

Open Geocaching setup menu	Select [Program chirp]	Select [Change Name]	Enter desired name

Change Message

Open Geocaching setup menu	Select [Program chirp]	Select [Change Message]	Enter desired message

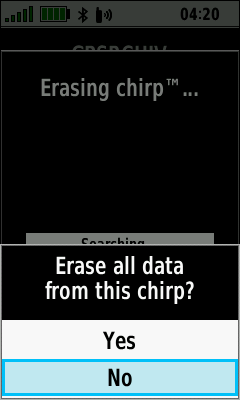

Erase a chirp

Open Geocaching setup menu	Select [Program chirp]	Select [Erase]	Select [No] to abort
Select [Yes] to proceed	Chirp erasure in process	Chirp erasure complete
