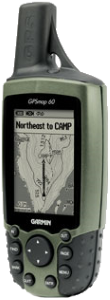

GPSMAP 60
010-00322-10

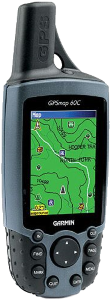

GPSMAP 60C
010-00322-20
GPSMAP 60CS
010-00322-30
GPSMAP 60Cx
010-00421-00

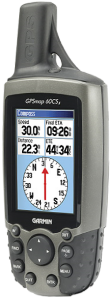

GPSMAP 60CSx
010-00422-00
MTK MT3329 (GPS Software 'M')
|
GPSMAP 60 010-00322-10 |
GPSMAP 60C 010-00322-20 |
GPSMAP 60CS 010-00322-30 |
GPSMAP 60Cx 010-00421-00 |
GPSMAP 60CSx 010-00422-00 |
|
| General | |||||
| Unit Dimensions | 2.4” x 6.1” x 1.3” (6.1 x 15.5 x 3.3 cm) | ||||
| Weight (with batteries) | 7.0 oz (198 g) | 7.5 oz (213 g) | |||
| Display Size | 1.5" x 2.2" (3.8 x 5.6 cm) | ||||
| Display Resolution | 160 x 240 pixels | ||||
| Display Type | 4 level gray LCD | 256 level color TFT | |||
| Touchscreen | No | ||||
| Waterproofing | IPX7 | ||||
| Floats | No | ||||
| Battery | 2 AA (NiMH or Lithium recommended) | ||||
| Battery Life | 28 hours | 30 hours | 20 hours | 18 hours | |
| Integral Battery Charger | No | ||||
| Operating Temperature | 5° to 158°F (-15° to 70°C) | ||||
| GPS Antenna | Quad Helix | ||||
| GPS Chipset | PhaseTrac12 | SiRFstar
III (GPS Software 'S') MTK MT3329 (GPS Software 'M') |
|||
| High Sensitivity GPS Receiver | No | Yes | |||
| GNSS Network | GPS + WAAS/EGNOS | ||||
| Interface | Serial + mini USB | ||||
| Maps and Memory | |||||
| Basemap | Yes | ||||
| Preloaded Map | No | ||||
| Ability to Add Maps | Yes (2025 map segments) | ||||
| Garmin Custom Maps | No | ||||
| Garmin BirdsEye Maps | No | ||||
| Internal Memory | 24 MB | 56 MB | No | ||
| Accepts Data Card | No | Yes (microSD, Max 4GB, Class 4 to 10) | |||
| Custom POIs | Yes | ||||
| Waypoints | 500 | 1000 | |||
| Routes | 50 | ||||
| Track Log | 10,000 points, 20 saved tracks (500 points each) | ||||
| Automatic Routing | Yes (with optional mapping for detailed roads) | ||||
| Sensors | |||||
| Electric Compass | No | Yes | No | Yes | |
| Barometric Altimeter | |||||
| UV Sensor | No | ||||
| Microphone | |||||
| Outdoor Recreational Features | |||||
| Geocaching Friendly | Yes | ||||
| Outdoor GPS Games | |||||
| Flashlight | No | ||||
| Camera | |||||
| Picture Viewer | |||||
| Photo Navigation | |||||
| Hunt/Fish Calendar | Yes | ||||
| Sun/Moon Information | |||||
| Area Calculation | |||||
| Tide Tables | Yes (with optional Bluechart) | ||||
| Radio | No | ||||
| Multimedia | |||||
| Wireless | |||||
| Garmin Connect | No | ||||
| Smart Notifications | |||||
| Live Tracking | |||||
| Wireless Unit to Unit Transfer | |||||
| Connect IQ | |||||
| Active Weather | |||||
