Display

• Choose a directional heading style for the compass display
  • Cardinal Letters
  • Numeric Degrees
  • Mils

	Cardinal Letters		Numeric Degrees		Mils

North Reference

• Select the desired North Reference for the compass
  • True
  • Magnetic
  • Grid
  • User



Setting Compass Magnetic Declination Correction

• What is my Magnetic Declination?

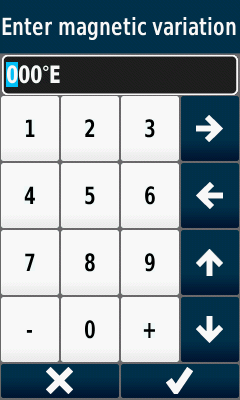

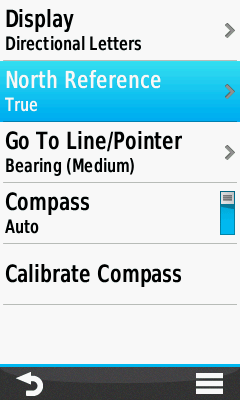

	Select [North Reference]		Select [User]		Enter Magnetic Variation

Go To Line/Pointer

• Select the desired bearing pointer style
  • Bearing (Large)
  • Bearing (Medium)
  • Bearing (Small)
  • Course (CDI)



	Large		Medium		Small		CDI

Compass

• Set the compass mode
  • Auto (switches from electronic compass to GPS compass when traveling at higher rates of speed)
  • Off (disables 3-axis compass)



Calibrate Compass

• Always calibrate the compass outdoors, away from objects that influence magnetic fields (cars, buildings, power lines)
  • After moving long distances
  • After experiencing significant temperature changes
  • After replacing the batteries
• Each step of the calibration process must be performed exactly as shown:

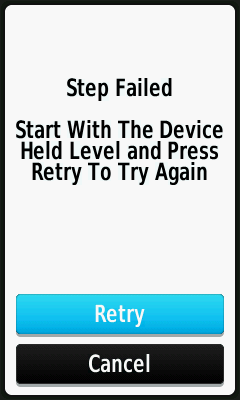

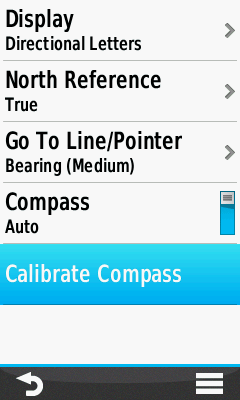

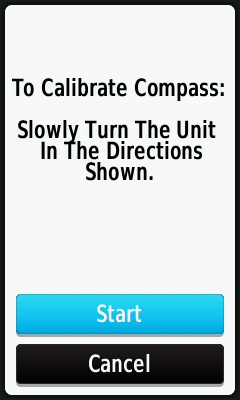

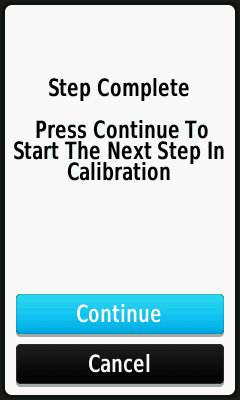

	Select [Calibrate Compass]		Select [Start] to begin		Select [Continue] after completing each step		Select [Retry] if any step is unsuccessful

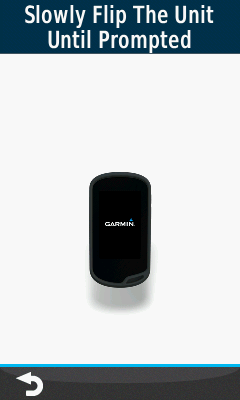

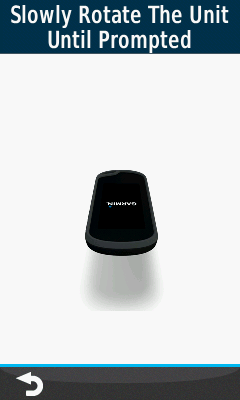

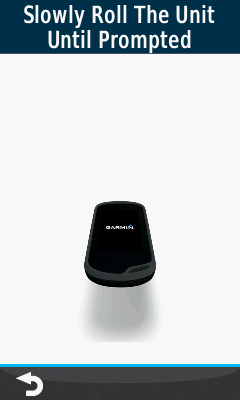

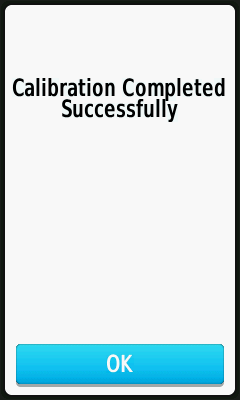

	Step 1 Rotate GPSr as directed		Step 2 Roll GPSr as directed		Step 3 Flip GPSr as directed		Calibration Completed Successfully, Select [OK]
