eTrex 10
010-00970-00

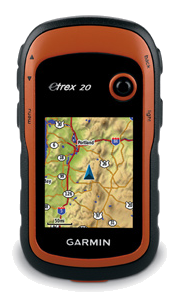

eTrex 20
010-00970-10

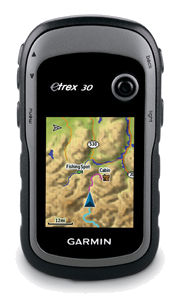

eTrex 30
010-00970-20
| 2.1" x 4.0" x 1.3" (5.4 x 10.3 x 3.3 cm) |
| 5 oz (141.7 g) with batteries |
2.2" diag (5.6 cm)
2.2" diag (5.6 cm)
|
eTrex 10 010-00970-00 |
eTrex 20 010-00970-10 |
eTrex 30 010-00970-20 |
|||
| General | |||||
| Unit Dimensions |
|
||||
| Weight |
|
||||
| Display Size | 1.4" x 1.7" (3.6 x 4.3
cm) 2.2" diag (5.6 cm) |
1.4" x 1.7"
(3.5 x 4.4 cm) 2.2" diag (5.6 cm) |
|||
| Display Resolution | 128 x 160 pixels | 176 x 220 pixels (130 ppi) | |||
| Display Type | transflective, monochrome | transflective, 65-K color TFT | |||
| Touchscreen | No | ||||
| Waterproofing | IPX7 | ||||
| Floats | No | ||||
| Battery | 2 AA | ||||
| Battery Life | 25 hours | 25 hours | 25 hours | ||
| Integral Battery Charger | No | ||||
| Operating Temperature | -4° to 158°F (-20° to 70°C) | ||||
| GPS Antenna | Patch | ||||
| GPS Chipset | STA8088EXG | ||||
| High Sensitivity GPS Receiver | Yes | ||||
| Multi-GNSS | |||||
| GNSS Network | GPS + GLONASS + WAAS/EGNOS | ||||
| Interface | mini USB | ||||
| Maps and Memory | |||||
| Basemap | Yes | ||||
| Preloaded Map | No | ||||
| Ability to Add Maps | No | Yes | |||
| Garmin Custom Maps | |||||
| Garmin BirdsEye Maps | |||||
| Internal Memory | 8 MB | 1.7 GB | |||
| Accepts Data Card | No | Yes (microSD, Max 32GB, Class 4 to 10) | |||
| Custom POIs | Yes | ||||
| Waypoints | 1000 | 2000 | |||
| Routes | 50 | 200 | |||
| Track Log | 10,000 points, 100 saved tracks | 10,000 points, 200 saved tracks | |||
| Automatic Routing | No | Yes (with optional mapping for detailed roads) | |||
| Sensors | |||||
| Electric Compass | No | Yes (tilt-compensated 3-axis) | |||
| Barometric Altimeter | Yes | ||||
| UV Sensor | No | ||||
| Microphone | |||||
| Outdoor Recreational Features | |||||
| Geocaching Friendly | Yes (2,000 Paperless) | Yes (5,000 Paperless) | |||
| Outdoor GPS Games | No | ||||
| Flashlight | |||||
| Camera | |||||
| Picture Viewer | No | Yes | |||
| Photo Navigation | |||||
| Hunt/Fish Calendar | Yes | ||||
| Sun/Moon Information | |||||
| Area Calculation | |||||
| Tide Tables | No | Yes | |||
| Radio | No | ||||
| Multimedia | |||||
| Wireless | |||||
| Garmin Connect | Yes | ||||
| Smart Notifications | No | ||||
| LiveTrack | |||||
| Wireless Unit to Unit Transfer | No | Yes | |||
| Connect IQ | No | ||||
| Active Weather | |||||
