Function - Summit

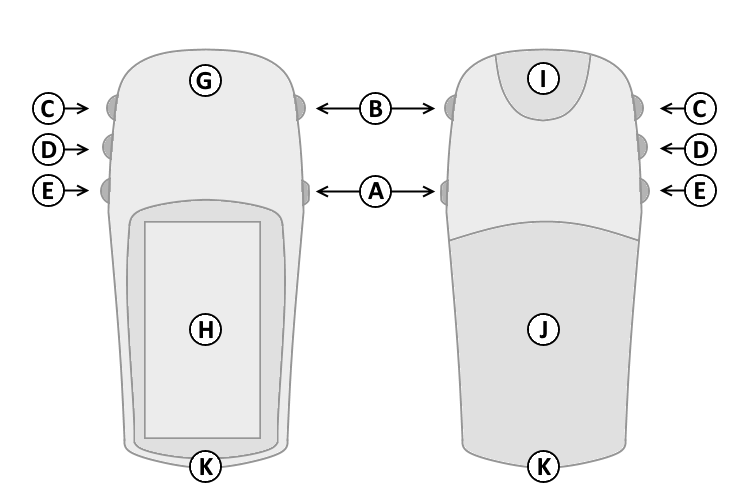

Controls



A. Power
B. Page
C. Up
D. Down
E. Enter/Mark
G. GPS Antenna
H. Monochrome Display
I. Power/Serial Data Port
J. Battery Cover
K. Lanyard Attachment



Button Operation

A. Power Button   D. Down Button
     1. Press and hold to turn unit on/off.        1. Select page and menu options.
     2. Press and release to cycle the display backlight on/off.        2. Zoom In on the Map page.
B. Page Button        3. Cycle through elevation computer data in Elevation page.
     1. Press and release to loop through display pages.        4. Cycle through trip computer data in Pointer page.
     2. Press and release to exit/quit a function.        5. Adjust contrast (lighter) in the Satellite page.
     3. Press and hold to activate electronic compass and   E. Enter/Mark Button
         display Pointer page.        1. Press and release to view option menu for active page.
C. Up Button        2. Press and release to confirm data entry or menu selections.
     1. Select page and menu options.        3. Press and hold to activate Mark Waypoint page.
     2. Zoom Out on the Map page.
     3. Cycle through elevation computer data in Elevation page.
     4. Cycle through trip computer data in Pointer page.
     5. Adjust contrast (darker) in the Satellite page.




Special Key Functions



Pages

Press and release the Page Button (B) to loop through display pages.

SkyView Map Pointer Elevation Menu Mark Waypoint



SkyView

The SkyView page displays (in animation) the eTrex Summit gathering the necessary satellite information to function.

A "Ready to Navigate" message will appear when the receiver has gathered information from a minimum of three satellites.

The current satellite receiver status and estimated positional accuracy are displayed at the top of the SkyView page.

The bottom of the SkyView page displays a signal strength bar to let you know when satellite signals are weak or when you need to move to a better location.

Press Enter (E) and select 'Advanced SkyView' (may require firmware update) to enable Advanced SkyView Mode (displays the position in the sky and signal strength for each satellite the unit is tracking).



Map

The Map page provides a picture of where you are, where you are going (path to destination), where you have been (track log), and waypoint names and symbols.

The eTrex rotates the Map page as you move such that waypoints that are ahead of you are displayed in front of the animated figure.

The North Pointer shows you which direction on the Map page is north.

Press and hold the Up (C) or Down (D) buttons to change the map scale as desired.



Pointer

The Pointer (Navigation) page helps guide you to a destination.

When moving without a destination selected, the upper data field displays your moving direction and speed.

When moving with a destination selected (navigating), the name of the destination waypoint, as well as distance and time to destination are displayed in the upper data field. Simply follow the Compass arrow to find your destination.

Press the Up (C) or Down (D) buttons to cycle the lower data field through available Trip Computer data:

  1. Speed - How fast you are moving.
  2. Average Speed - the Average speed traveled since last trip reset.
  3. Maximum Speed - the Maximum speed traveled since last trip reset.
  4. Heading - the Direction you are traveling.
  5. Bearing - the Compass direction from you current location to a destination.
  6. Elevation - the Measurement of height above mean sea level.
  7. Location - Current position coordinates.
  8. Sunrise - the Time of sunrise at your current location.
  9. Sunset - the Time of sunset at your current location.
  10. Trip Time - Total time traveled since last trip reset.
  11. Trip Odometer - Total distance traveled since last trip reset.



Elevation

The Elevation page displays a graph of elevation changes over distance or time.

The upper data field displays current elevation and rate of ascent/descent.

Press the Up (C) or Down (D) buttons to cycle the lower data field through available elevation data:

  1. Total Ascent - Total distance ascended since last reset.
  2. Total Descent - Total distance descended since last reset.
  3. Average Ascent - Average distance of ascents since last reset.
  4. Average Descent - Average distance of descents since last reset.
  5. Maximum Ascent Rate - Maximum ascent rate in feet per minute since last reset.
  6. Maximum Descent Rate - Maximum descent rate in feet per minute since last reset.
  7. Local Pressure - Current local pressure.
  8. 12 Hour Barometric Pressure Trend - Tracks pressure changes over a 12 hour period.
  9. Maximum Elevation - Highest elevation reached since last reset.
  10. Minimum Elevation - Lowest elevation reached since last reset.



Trip Computer

The Trip Computer page (firmware v3.00 and above) displays displays five data fields.

Each data field is user configurable.

To change data fields, press Enter (E) to open the Options Menu, then use the Up (C) or Down (D) buttons to select the desired data field and choose from available Trip Computer data:

  1. BEARING - the Compass direction from you current location to a destination.
  2. COURSE - the Compass direction from your starting location to a destination.
  3. ELEVATION - the Height above or below sea level.
  4. FINAL DEST - the Last waypoint on your route.
  5. FINAL DIST - the Remaining distance to your final destination.
  6. FINAL ETA - the Estimated time of day you will arrive at your final destination.
  7. FINAL ETE - the Estimated time needed to arrive at your final destination.
  8. HEADING - your Moving direction.
  9. LAT/LON - Current GPS position.
  10. LOCATION - Current position coordinates.
  11. MAX SPEED - the Maximum speed recorded since last reset.
  12. MOVING AVG - Average speed while the unit is moving.
  13. NEXT DEST - the Next waypoint on your route.
  14. NEXT DIST - the Remaining distance to your next waypoint.
  15. NEXT ETA - the Estimated time of day you will arrive at your next waypoint.
  16. NEXT ETE - the Estimated time needed to arrive at the next waypoint on your route.
  17. ODOMETER - Running tally of distance travelled.
  18. OFF COURSE - the Distance left or right you are from the original course (path of travel).
  19. OVER'L SPD - Average speed for unit both moving and stopped since last reset.
  20. SPEED - How fast you are moving.
  21. SUNRISE - the Time of sunrise at your current location.
  22. SUNSET - the Time of sunset at your current location.
  23. TIME OF DAY - the Time for the selected time zone.
  24. TIME-MOVING - Total time unit has been moving since last reset.
  25. TIME-STOP - Total time unit has been stopped since last reset.
  26. TIME-TOTAL - Total time unit has been in operation since last reset.
  27. TO COURSE - the Compass direction you must travel to get back to original course.
  28. TRIP ODOM - Total distance traveled since last reset.
  29. TURN - the Angle difference (in degrees) between the bearing to your destination and your current line of travel. "L" means turn left, "R" means turn right.
  30. VERT SPEED - Your rate of altitude gain/loss over time.
  31. VMG - the Speed at which you are closing on a destination along a desired course.



Menu

The Menu page provides access to advanced features and settings.

The Menu page displays the current date, time, and battery status.

Press the Up (C) or Down (D) buttons to highlight the desired menu selection.

Press Enter (E) to activate the highlighted menu selection:
