Versatile
Range |
|
Graphic Overlay |
|
Navigation Features |

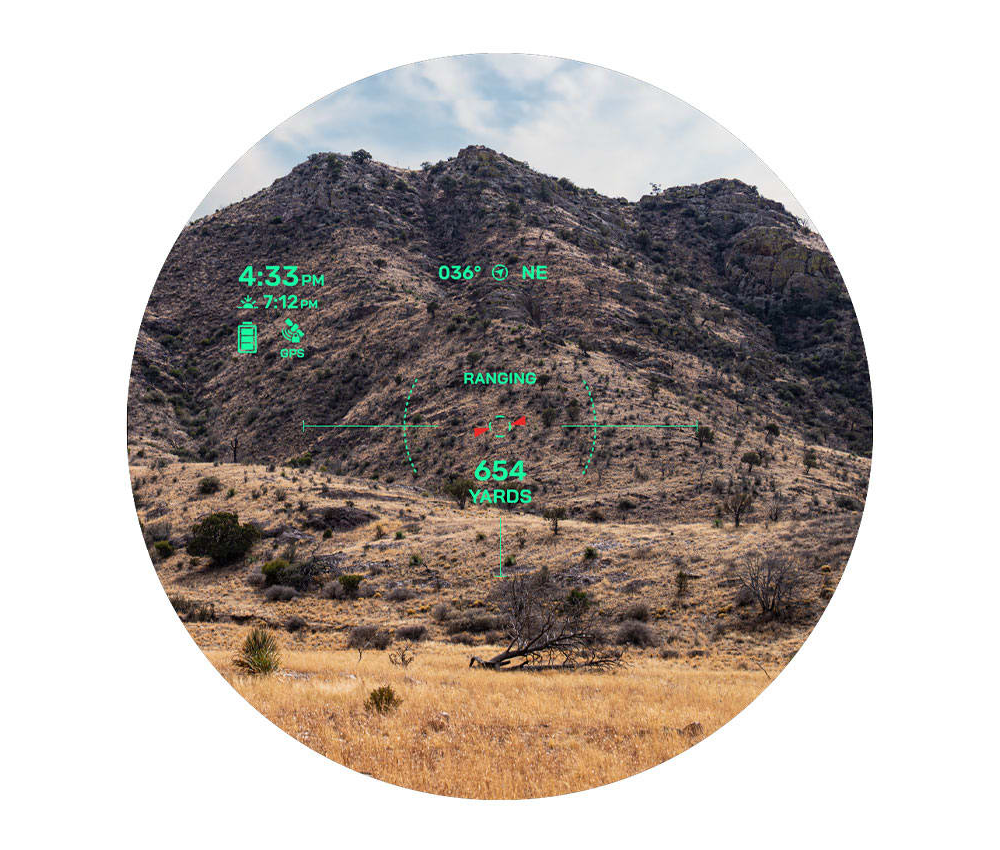

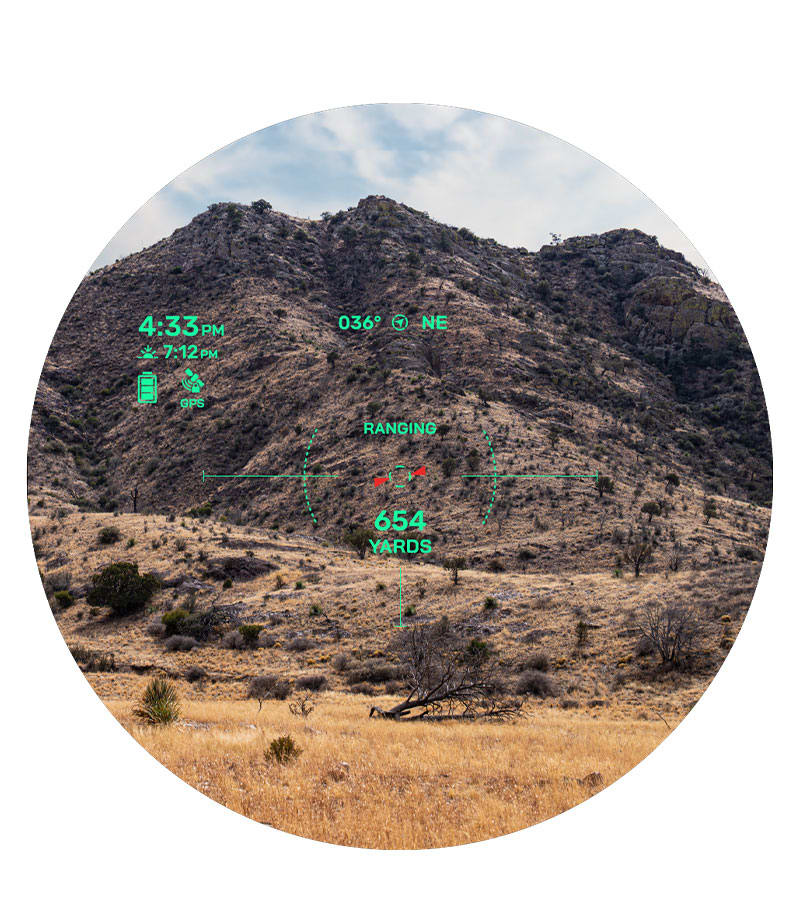

| Use the
7X magnification to range trees out to 2,000 yards and animals
out to 1,500 yards. In optimal low-light conditions, reach all
the way out to 7,600 yards to retro reflective objects. Get
pinpoint accuracy and precision with proprietary precision lock
technology. |
|

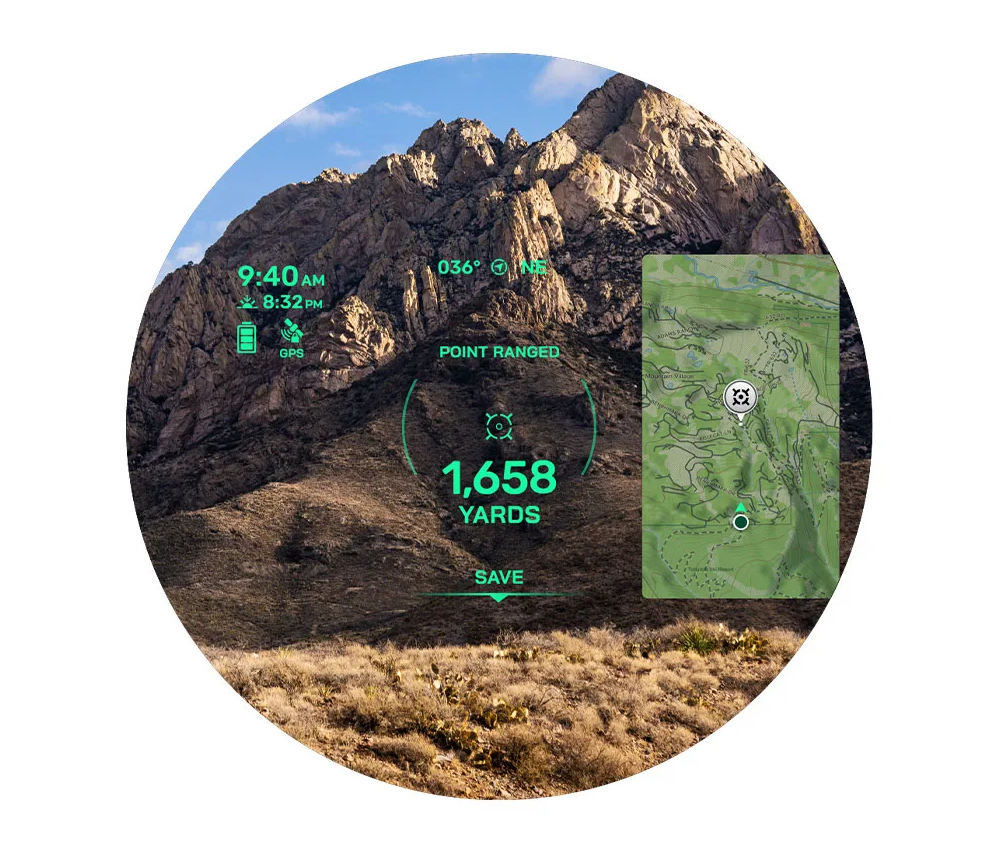

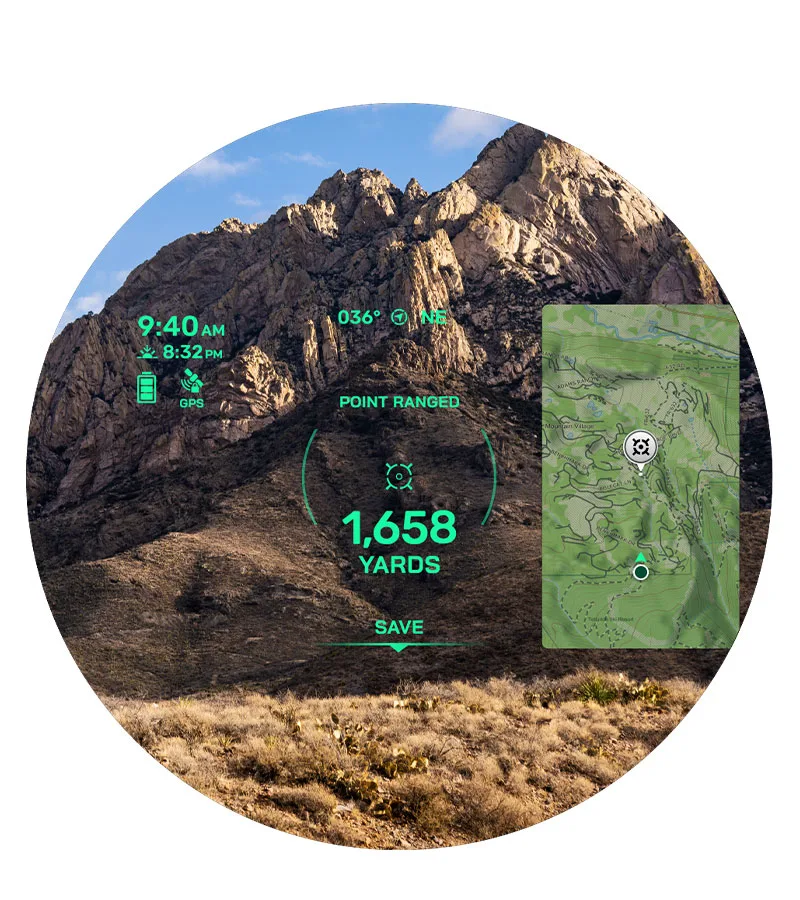

Get a
sharp view through a full-color, high-resolution graphic overlay
that displays distance, location, mapping, ballistics,
navigation and more. |
|

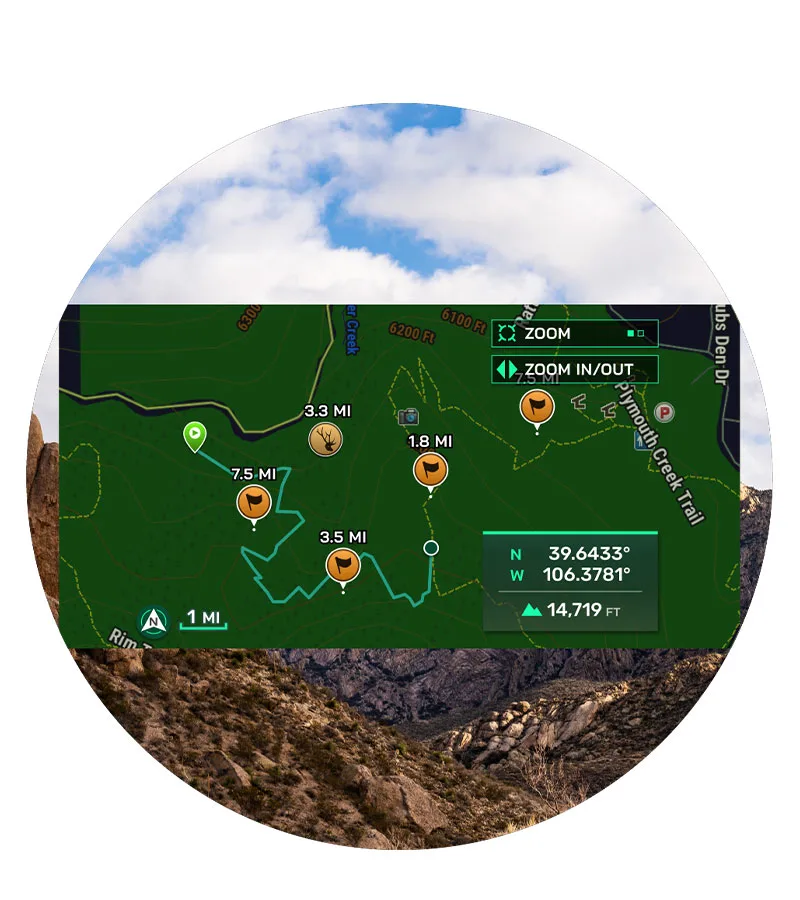

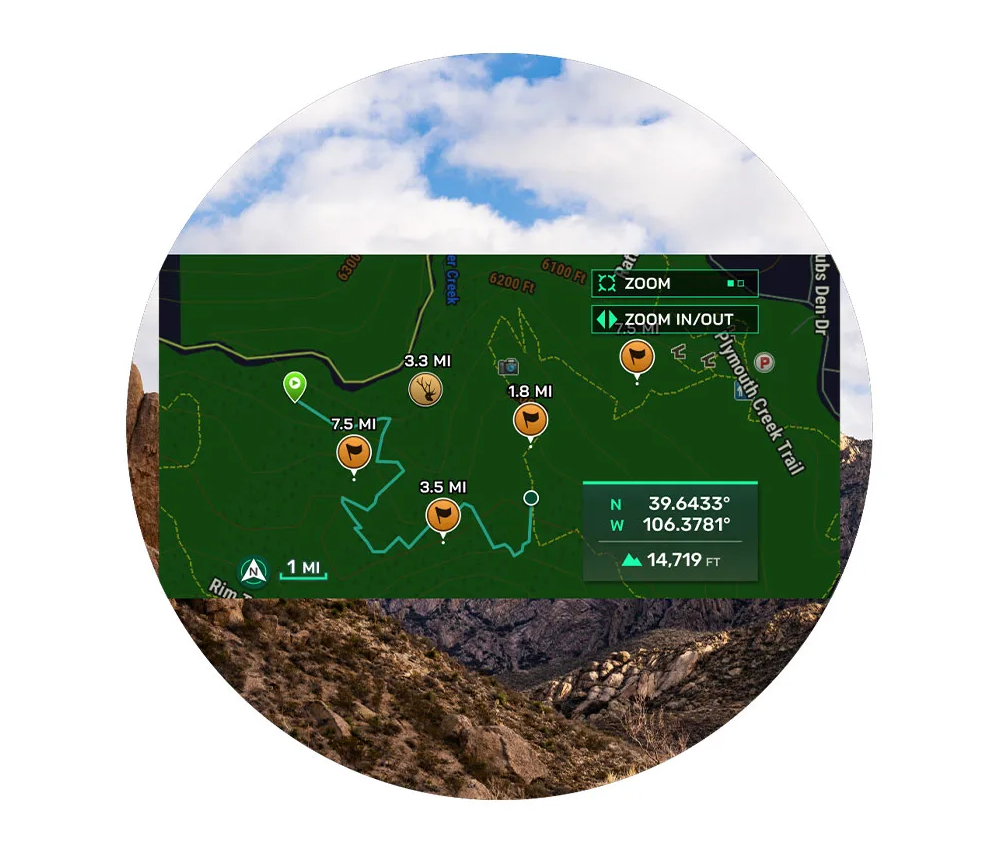

Look
through the device, and let the graphic display overlay guide
you to waypoints you’ve dropped with on-board TopoActive
mapping. Keep your bearings with a 3-axis compass, and see
elevation profiles of your route. You can even see an overhead
perspective of your location on the graphic display overlay. |
| |
|
|
|
|
 |
|
 |
|
 |
|
Advanced Waypoints |
|
Onboard Ballistics |
|
Navigation Ecosystem |
|

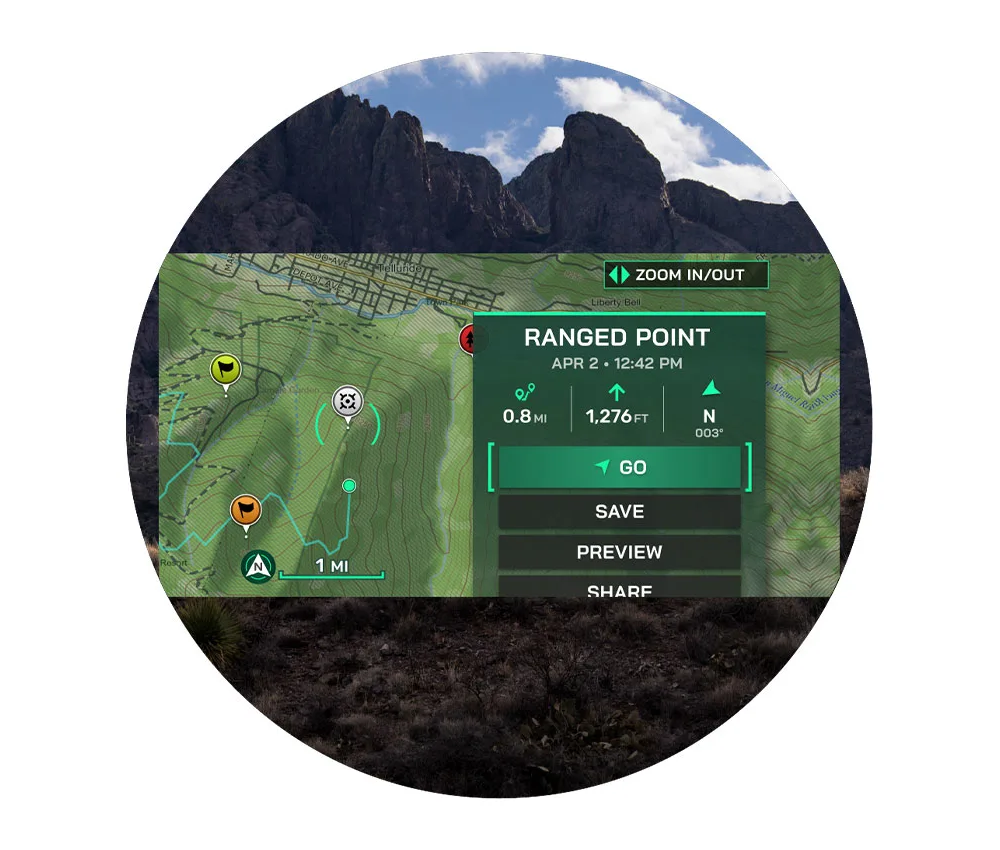

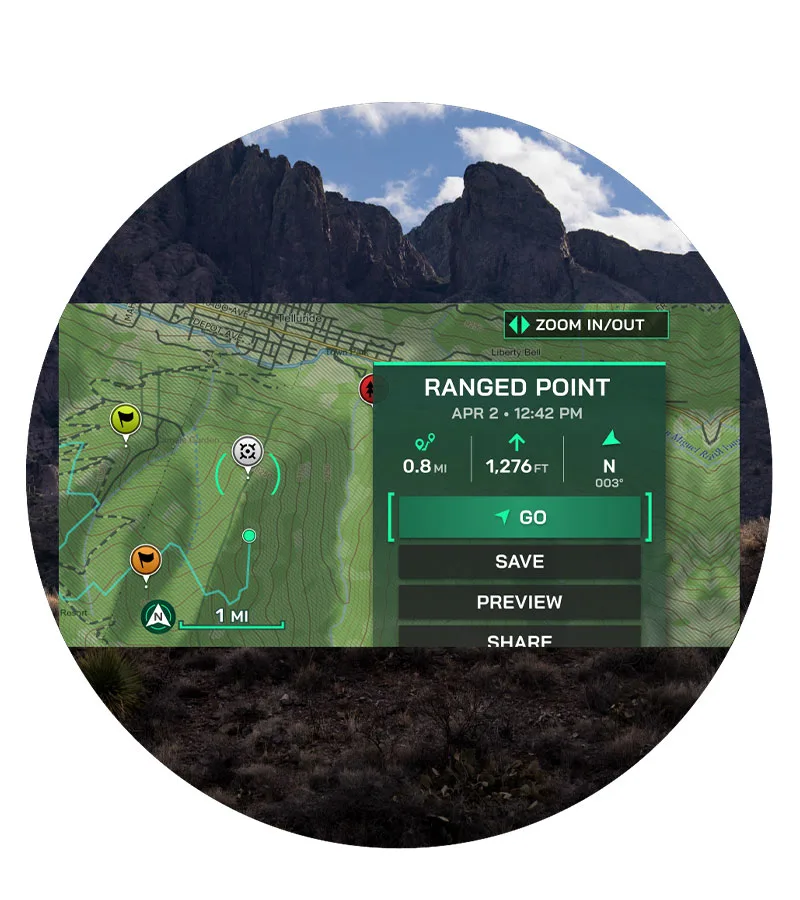

Leverage advanced GPS technology and onboard sensors to drop a
waypoint on objects you’ve ranged with the Laser Locate waypoint
projection feature. Project a waypoint beyond rangeable
distances with the sensor locate feature. If you lose sight of
an object while traveling to it, visual recall on the graphic
overlay will guide you back to it. |
|

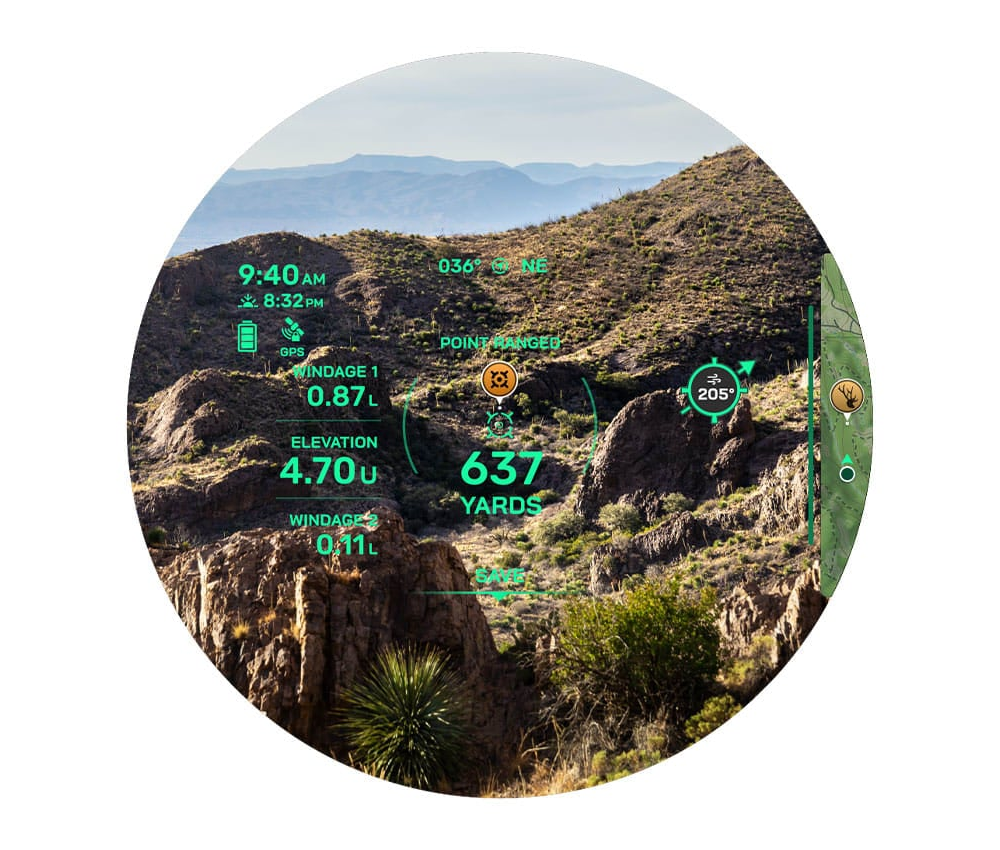

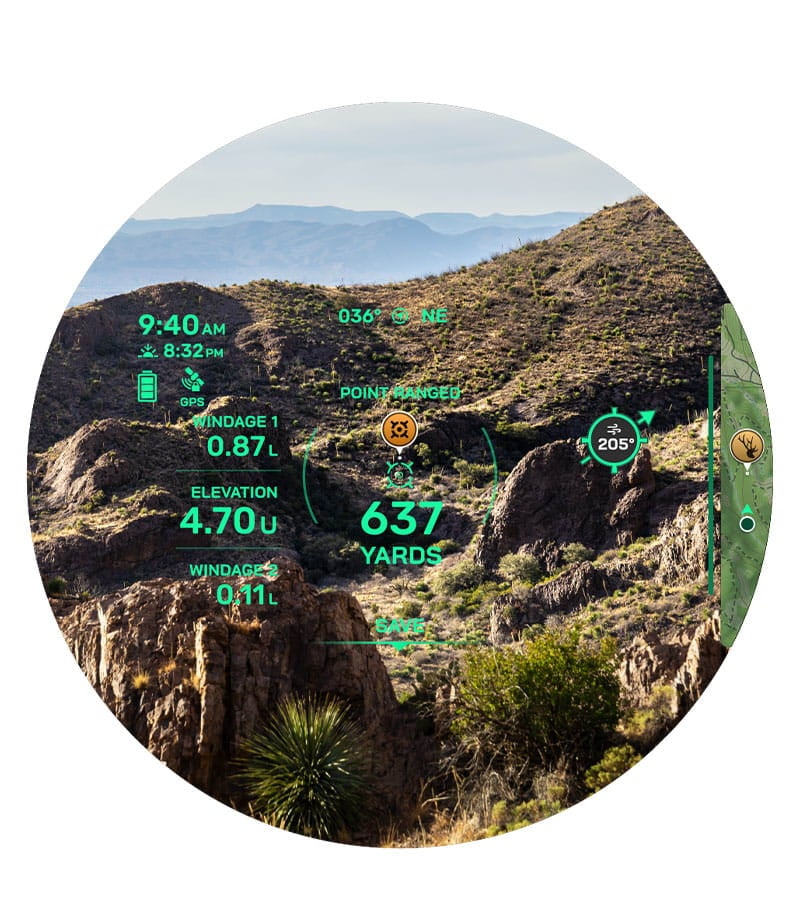

Access
the onboard Applied Ballistics Ultralight solver with the AB
Quantum app, and get the data you need to make the perfect shot.
Archers also get arrow ballistics, such as max arrow height,
angle-compensated range and more. |
|

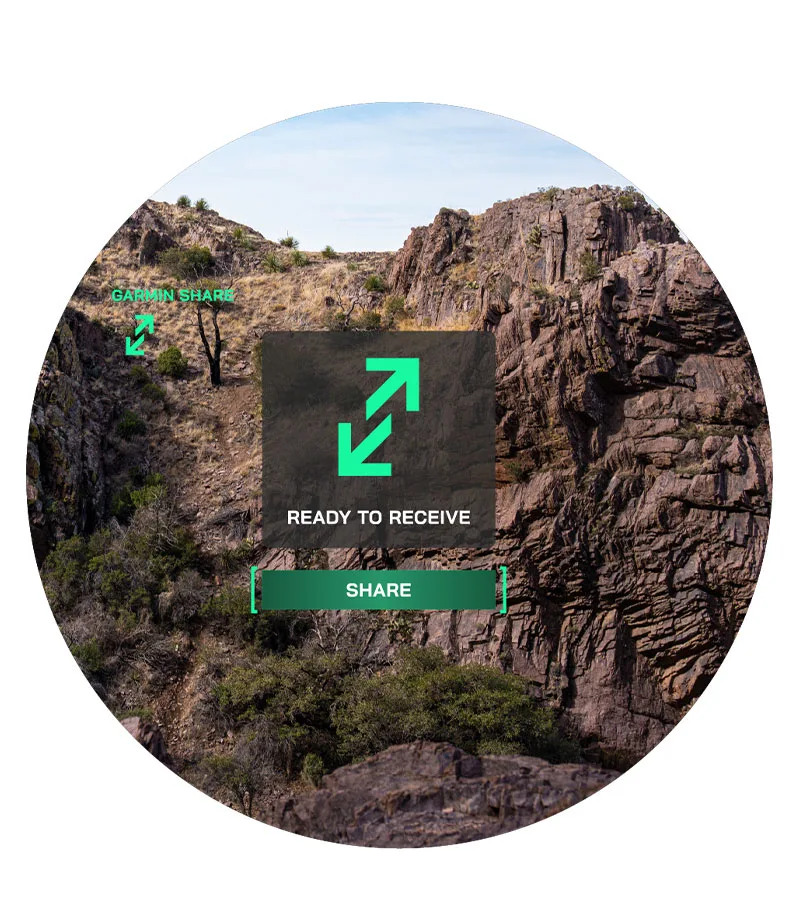

Send waypoints or data to your compatible smartphone and then
share it with your compatible Garmin device so you can close the
distance without using the graphic overlay. Spot something but
your partner can’t find it? This feature also lets you share
waypoints with your partner’s compatible devices. |
|
|
|
|
|
Find the Mark. Trust the Mark. Endless Exploration. |
|
|
 |
Mapping: Navigate with
built-in TopoActive mapping. |
|
 |
Overhead View: See
your position from a bird’s-eye perspective on the
graphic overlay. |
 |
Elevation: See an
elevation profile of where you want to go on the graphic
overlay. |
|
 |
Drop
Waypoints: Use Laser
Locate to drop a waypoint on objects or locations you’ve
ranged. |
 |
Extended Range: Use
the sensor locate feature to project a waypoint beyond
rangeable distances. |
|
 |
Target
Lock Technology: This
feature delivers precise and accurate ranges by
leveraging property signal validation methods. |
 |
Tack-Sharp Glass: Experience accurate color fidelity
and superior light transmission. |
|
 |
Dim the
Display: Automatic display brightness controls for
optimal low-light performance. |
 |
Relocate
Waypoints: The visual recall feature on the graphic
overlay can guide you back to a waypoint while traveling
toward it. |
|
 |
Visual
Recall: Spot something your group can’t find? Use
visual recall to share an animal’s location from a
distance. |
 |
Built to
Last: This rangefinder is built to withstand the
harsh outdoor conditions with an IPX7 water-resistance
rating. |
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
Part Number |
010-02691-00 |
|
Unit Dimensions |
4.94" x 3.53" x 1.99" (12.54 cm x 8.96 cm x 5.06 cm) |
|
Weight |
0.80 lbs (362.88 g) without battery
0.849 lbs (385.1 g) with
batteries |
|
Display Type |
DLP Augmented Reality |
|
Display Size |
Overlaid on Visual Scene |
|
Display Resolution |
960 x 540 |
|
Battery Type |
2 x AAA (Lithium) |
|
Battery Life |
1,400 Ranges (1 sec range, 10 sec display) |
|
Operating Temperature |
-4° F to 140° F (-20° C to 60° C) |
|
Laser Classification |
Class 1 |
|
Laser Beam Divergence |
0.5 x 0.5 mrad |
|
Waterproof |
IPX7 |
|
Memory |
32 GB |
|
Interface |
USB-C |
|
Connectivity |
Bluetooth |
|
Mobile App |
Explore |
|
Magnification |
7x |
|
Objective |
32 mm |
|
Field of View |
7 degrees (365 linear feet at 1,000 yards) |
|
Eye Relief |
0.71" (18 mm) |
|
Exit Pupil Diameter |
4.6 mm |
|
Focus Adjustment |
+/- 4 diopters |
|
Compass |
Yes |
|
Barometer |
Yes |
|
Precision |
+/- 0.1 m |
|
Accuracy |
+/- .25 m (< 1,000 m)
+/- 1.0 m (> 1,000 m) |
|
Distance to Targets (Full Sun) |
Animals: 1,375 m (1,500 yds)
Trees: 1,800 m (2,000 yds)
Retro Reflective: 5,000 m (5,500 yds) |
|
Distance to Targets (Optimal Conditions) |
Animals: 2,775 m (3,000 yds)
Trees: 3,600 m (4,000 yds)
Retro Reflective: 7,000 m (7,500 yds) |
|
Laser Locate |
Yes |
|
Sensor Locate |
Yes |
|
Onboard Mapping |
Yes |
|
Visual Recall |
Yes |
|
Applied Ballistics Solver |
Ultralight, access via AB Quantum app |
|
Archery Ballistics |
Yes |
|
Angle Compensated Distance |
Yes |
|
Garmin Share |
Yes |
|
Stores Locations, Tracks and Courses |
Yes |
|
Measures Distance Between Two Points |
Yes |
|
Area Calculation |
Yes |
|
Carrying Case |
Yes (Included) |
|
|
|
|
|
