Xero C2

Overview  Specifications Documents Media Update History

Overview

Capture Precision. Execute Perfection.

In ballistics there is no room for error. The Xero C2 chronograph is the source you can trust. It builds on the success of its predecessor with a faster shot processor and improved features for an experience you won’t find anywhere else.

Measure projectile speeds from 100 fps to 5,000 fps.      The compact design fits in your back pocket and is easy to set up.    View live data on your paired Garmin smartwatch.      Pair with the Shotview smartphone app.    Rifle-mountable design.      Tracks up to 10 shots per second with rapid-fire support.

What You'll Love.

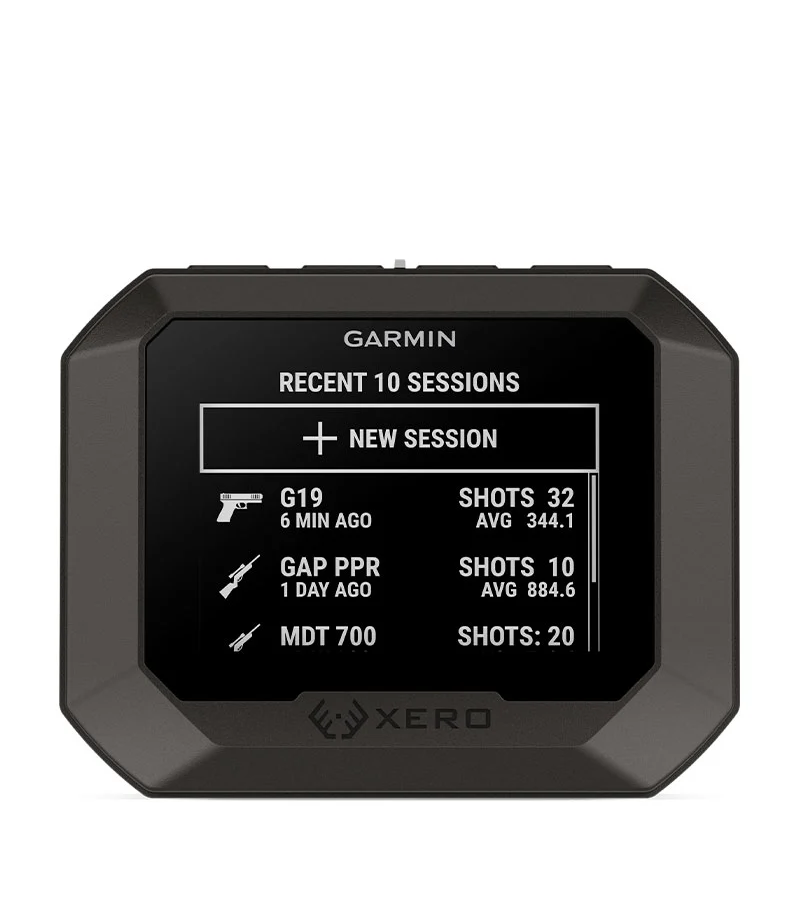

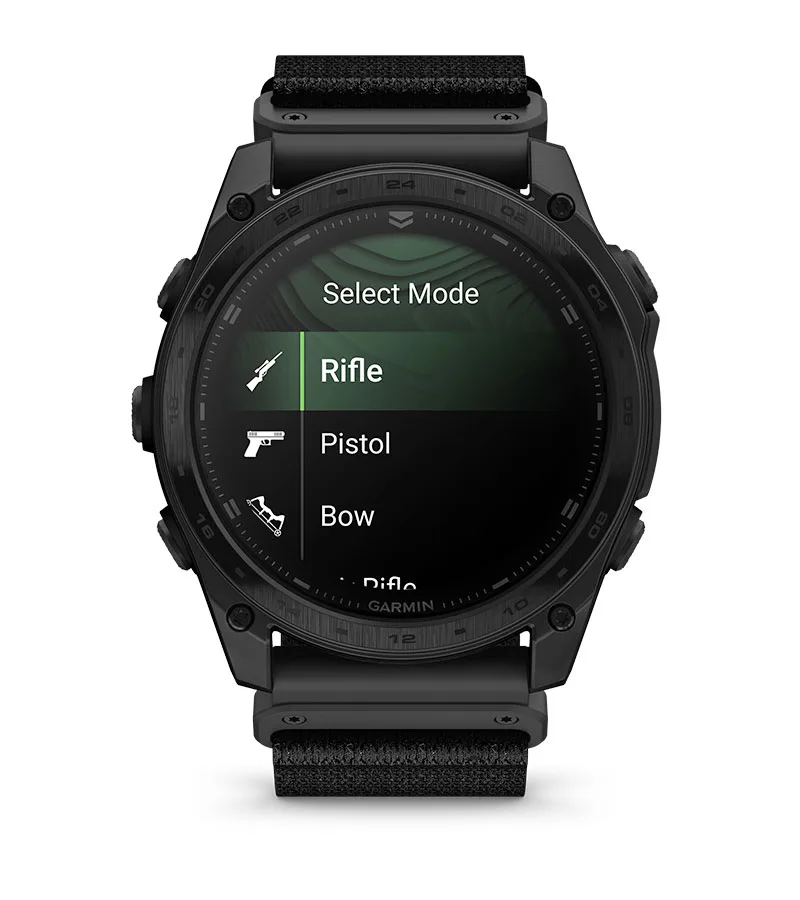

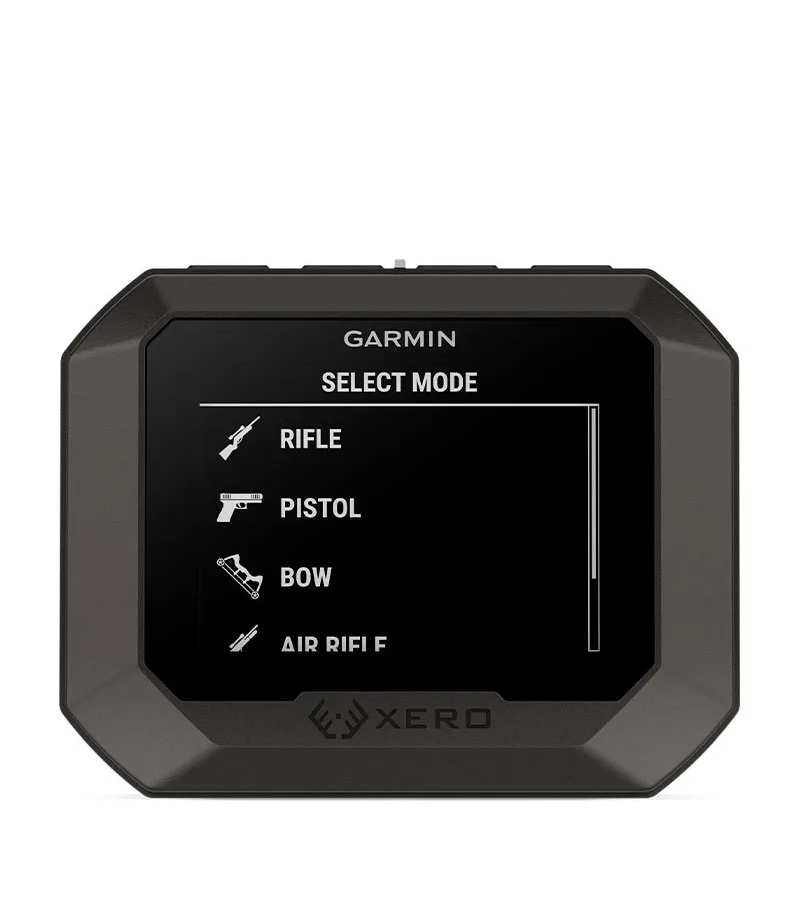

Versatile and Reliable Performance		Resume Your Session		Smartwatch Integration
The chronograph will reliably pick up your shots, thanks to the accurate sensor. The device can measure projectile speeds from 100 fps to 5,000 fps for bullets, arrows, slugs, airsoft BBs and more.		Shoot different firearms while the barrel cools off, or test multiple bows or arrows with the resume sessions feature - which keeps data separate for each.		With smartwatch integration, you get easy access to your data while you maintain your shooting position. Connect your compatible Garmin smartwatch to access session controls, view live data and import muzzle velocity into the onboard Applied Ballistics solver.

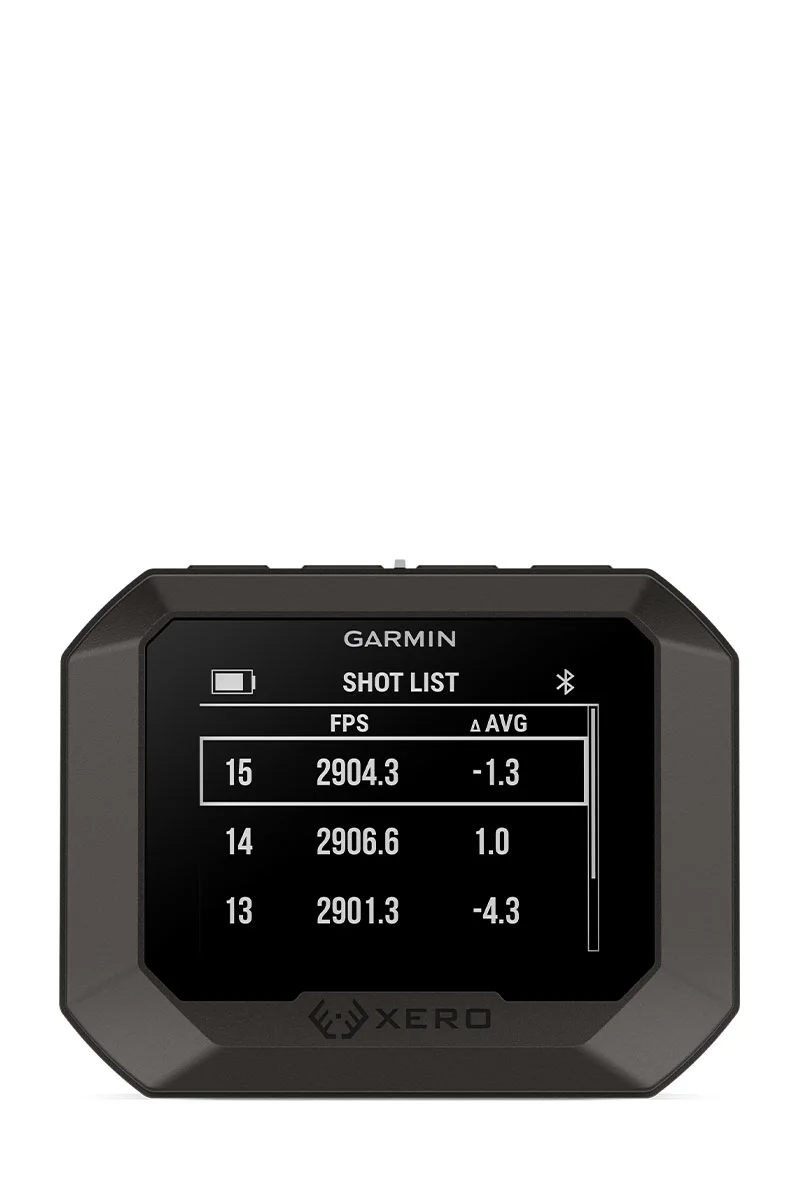

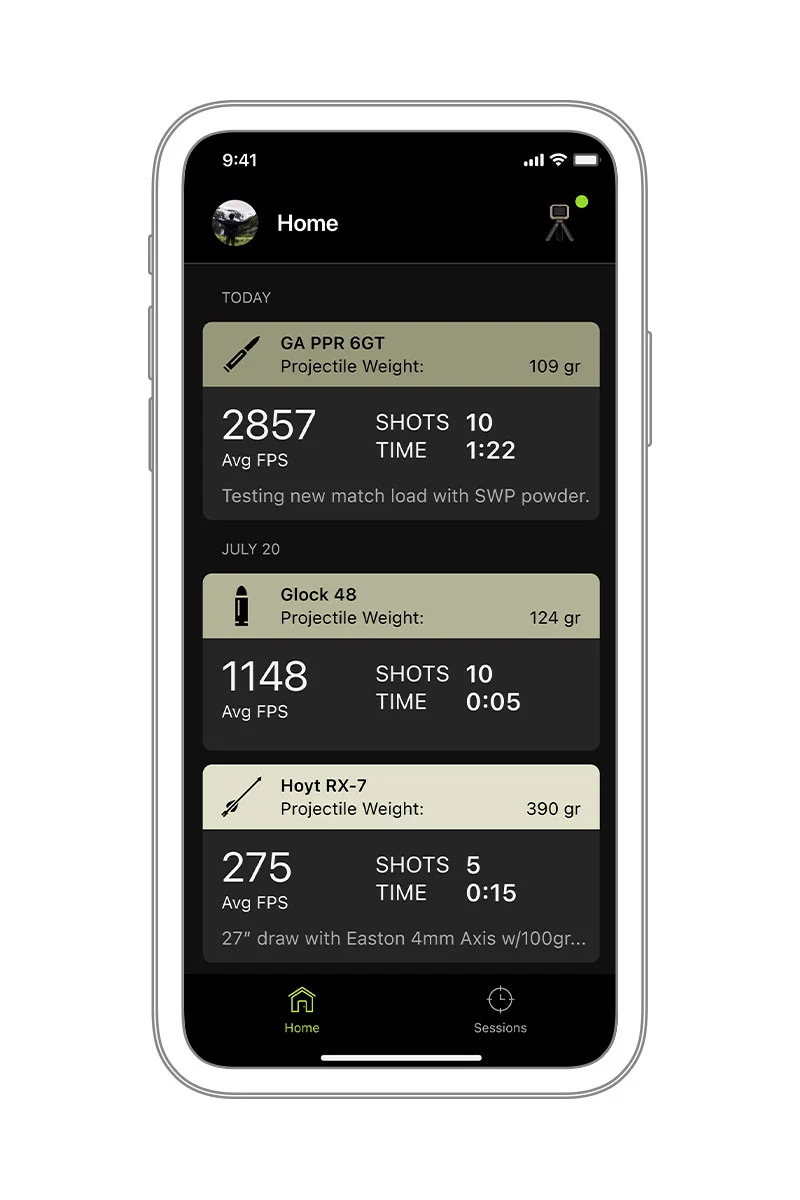

Rapid-Fire Support		ShotView App		Built to Endure
The faster processing speed supports rapid fire of up to 10 shots per second, depending on projectile velocity.		Keep track of your shots, measure deviation, manage sessions, view live data and more when paired with the ShotView app on your smartphone.		Reinforced housing is designed to withstand recoil when mounted to your rifle and is water-resistant with an IPX7 water rating.

Hone Your Craft With Precise Data.
AB Integration: The Xero C2 chronograph works with the Applied Ballistics app to pull muzzle velocity straight into the AB Quantum app.      Easy to Operate: Indoor and outdoor operation is simple, thanks to the backlit display and button-operated design.   Simple Setup: Turn it on. Set it up. Point it in the direction of fire, and shoot. Yeah, really.     Rechargeable Battery: With battery life up to 2,000 shots or up to 6 hours, you can take your time at the range.   Suppressor Support: The device picks up shots from suppressed firearms and firearms with muzzle brakes or compensators.     Multiple Device Support: Start a session on one device, and continue it on another device with the ShotView app.
Specifications
Part Number	010-03953-00
Unit Dimensions	5.1" x 4.5" x 5.5" (13.0 cm x 11.5 cm x 13.8 cm) with tripod 3.03" x 2.38" x 1.36" (7.7 cm x 6.0 cm x 3.4 cm) without tripod
Weight	6.3 oz (178.2 g) with tripod 4.3 oz (123.2 g) without tripod
Display Type	Sunlight-visible, transflective, monochrome
Display Size	1.7" x 1.3" (4.4 cm x 3.3 cm), 2.2" Diag (5.5 cm)
Display Resolution	320 x 240
Battery Type	Internal rechargeable lithium-ion (non replaceable)
Battery Life	6 hours (2000 shots)
Operating Temperature	14° F to 131° F (-10° C to 55° C)
Waterproof	IPX7
Memory	200 sessions (100 shots per round)
Interface	USB-C
Connectivity	Bluetooth
Mobile App	ShotView
Tripod Compatibility	1/4-20
Projectile Tracking	Airsoft: 1000 FPS Air Rifle: 2000 FPS Bow and Crossbow: 600 FPS Pistol: 5000 FPS Rifle: 5000 FPS Other: 5000 FPS
Calculates	Extreme Spread Kinetic Energy at Muzzle Power Factor Standard Deviation String Average
Device + ShotView App	Delete Shots In String Exclude Shot from Average and Standard Deviation Calculations
ShotView App	Add Individual Shot Notes Add Session Notes Mark Shots with Clean/Cold Bore
Documents
Xero C2 Owners Manual
Media
20JAN26 - Make the perfect shot with the Xero C2 chronograph from Garmin
Xero C2 Video Archive
Update History
006-Bxxxx-00
x.yz  (ddMMMyy)
TBD
