Xero A1

Overview  Specifications Documents Media Update History

Overview

Leave The Guesswork Behind

You’ve never seen a bow sight like this before. It measures the angle-compensated distance to your target and provides an LED pin for the shot.

A bow sight with a mounted digital laser range finder? Yeah, we did that.     LED pins mean that you get pinpoint accuracy without the obstruction of physical pins. Sunrise to sunset, your aim points will be the perfect brightness.     Get precise angle-compensated distance to game up to 100 yards away or up to 300 yards on reflective targets.   One-year battery life means more time hunting and more confidence in your shot.

Take the perfect shot.

Laser Range Finder		Led Pins		Level Indicators

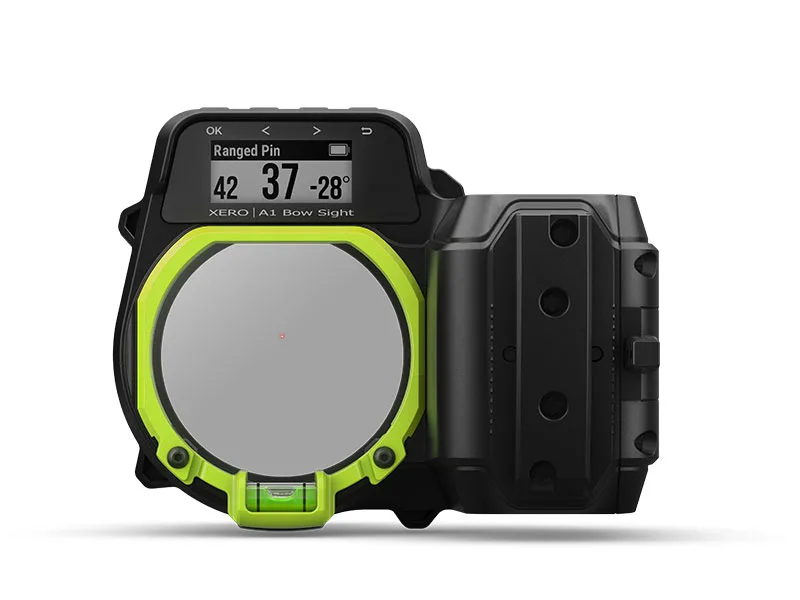

Get instant angle-compensated distance to game up to 100 yards away or up to 300 yards away on reflective targets, at rest or full draw.		Clearly see bright LED pins over your target, unobstructed by physical pins. These pins automatically adjust brightness according to conditions.		Eliminate cant from your shot with built-in level indicators that appear as blinking pins on your sight.
Made to get the shot.

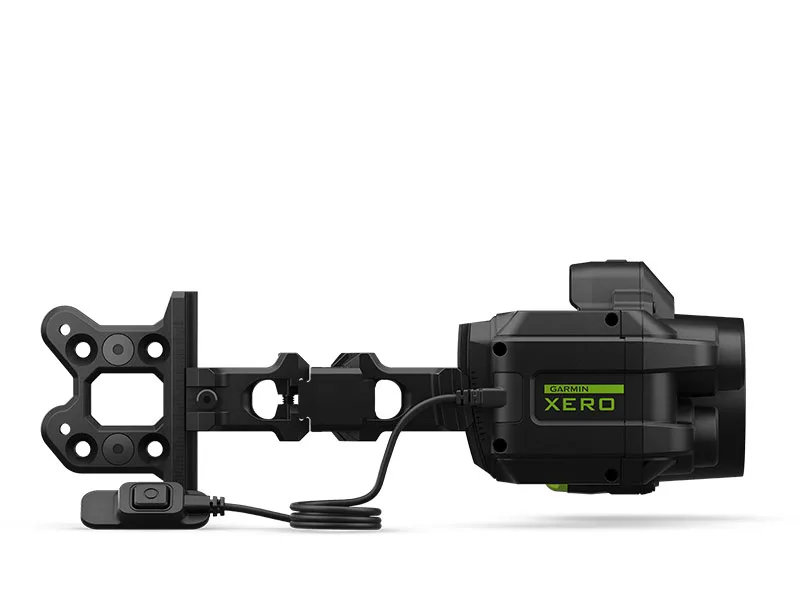

Silent Button Trigger		Practice Makes Perfect		Battery Life

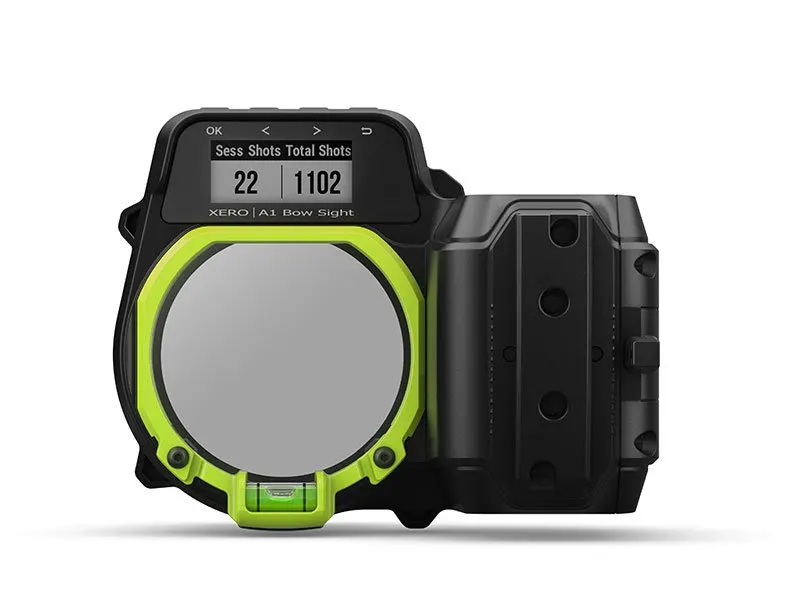

Mount the button in the best location for your grip so one finger can silently activate the laser range finder to give you the distance and exact aim point you need for the shot.		Record your performance during practice shooting sessions, and review your stats for various ranges and sessions over time.		Get up to 1 year of battery life - about 25,000 ranges - from 2 lithium AAA batteries, so you can go from target practice to hunting season without missing a beat.

Specifications
Part Number	010-01781-00 (RH), 010-01781-01 (LH)
Unit Dimensions	3.9" x 3.1" x 3.8" (10 cm x 7.9 cm x 9.7 cm)
Weight	14.7 oz (418 g)
Display Type	Sunlight-visible, transflective, memory in pixel (MIP)
Display Size	1.00" x 0.42" (2.5 cm x 1.1 cm), 2.0" Diag (5.0 cm)
Display Resolution	160 x 68
Battery Type	2 x AAA
Battery Life	1 Year (lithium)
Operating Temperature	-4° F to 140° F (-20° C to 60° C)
Laser Classification	Class 1
Waterproof	IPX7
Interface	micro-USB
Colored Pins	1 color (red)
Pin Diameter	.007" and larger
Pin Brightness	Ambient or Manual Control
Ranging Distance	100 yds (Game), 300 yds (Target)
Glass Lens Coating	Target side is anti-reflective, water repellant and easy clean Archer side is 20% reflective, water repellant and easy clean
Light Projection	No visible light is ever projected toward the target
Silent Button Trigger	Yes
Shot Counter	Yes
Customizable Fixed Pins	Yes
Angle Compensated Distance	Yes
Auto Brightness	Yes
Documents
Xero A1 Owners Manual
Media
10JAN18 - Garmin introduces Xero, a groundbreaking auto-ranging bow sight
Xero A1 Video Archive
Update History
006-B2641-00
3.70
Minor changes.
3.60
Added support for decimal precision on the level page. Added support for enabling 5 quick trigger taps to exit stalk mode. Fixed issue where the maximum allowed manual range would stop short of the maximum calibrated range.
3.40
Added support for German language files.
3.30
Fixed issue where a pin would not be displayed when targeting close to the max range. Fixed issue where the wrong maximum estimated range was displayed while manually adjusting the pin stack.
3.20
Added support for stalk mode. Stalk mode allows the device to remain on, but deactivates the trigger key to prevent errant presses. Stalk mode can be enabled by holding the power key. Added ability to hold left and right keys while adjusting a manual range. Fixed possible issue with no range given for steep angle cases. Fixed possible lockup.
3.00
Added level indicator that can be viewed along with the ranged pin. Added ability to zero out the level. Added support for new statistics mode. This mode will collect data during practice sessions to assist in the archer's accuracy training. Added support for new competition tracker. When this option is enabled, shot dynamics will be saved for each shot. This shot data can then be found in a file on the device. Added ability to move the user's entire pin stack. Fixed possible issue where fixed pins would be mistakenly deleted. Improved functionality of laser range finder.
2.90
Fixed a potential lock up.
2.80
Improved short range and steep angle pin calculations. Improved setup of new arrow profiles for A1i units.
2.70
Fixed private laser location transfers. Improved shot detection. Improved reticle behavior/settings.
2.60
Fixed an issue with fixed pin setup for XERO A1 devices. Improved shot odometer.
2.50
Fixed shot metric loop. Changed software update banner.
2.40
N/A
2.30
N/A
2.20
N/A
2.10
N/A
