Mounting Your Tread in an Automobile



NOTICE: Before mounting the device, check the local laws pertaining to windshield mounting.

WARNING: Do not use the suction cup mount on a motorcycle.

WARNING: See the Important Safety and Product Information guide in the product box for product warnings and other important information.

NOTE: The suction cup mount and automotive power cable are not included with all device models. Go to garmin.com to purchase optional accessories.

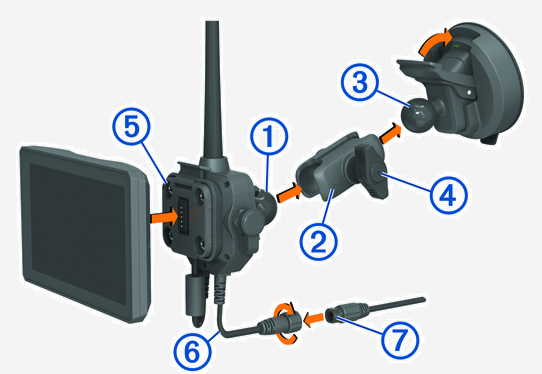

  1. Align the ball on the Group Ride mount with the double-socket arm .

    Device and power cable connecting to the automotive mount with callouts
  2. Align the ball on the suction cup with the double-socket arm.
  3. Tighten the knob slightly.
  4. Remove the clear plastic from the suction cup.
  5. Clean and dry your windshield and the suction cup with a lint-free cloth.
  6. Press the suction cup to the windshield, and flip the lever back toward the windshield.
  7. If necessary, rotate the Group Ride mount so the antenna faces up, adjust the mount for better viewing and operation, and tighten the knob.
  8. Fit the bottom of your device into the Group Ride mount.
  9. Press the device into the Group Ride mount until it snaps into place.
  10. Connect the Group Ride power cable to the connector on the automotive power cable .
  11. Tighten the collar around the connected power cables.
  12. Plug the other end of the automotive power cable into a power outlet in your vehicle.
