Mounting Your Tread Base Edition in an Automobile



NOTICE: Before mounting the device, check the local laws pertaining to windshield mounting.

WARNING: Do not use the suction cup mount on a motorcycle.

WARNING: See the Important Safety and Product Information guide in the product box for product warnings and other important information.

NOTE: The automobile mount is not included with all device models. Go to garmin.com to purchase optional accessories.

  1. Plug the automotive power cable into the port on the device.

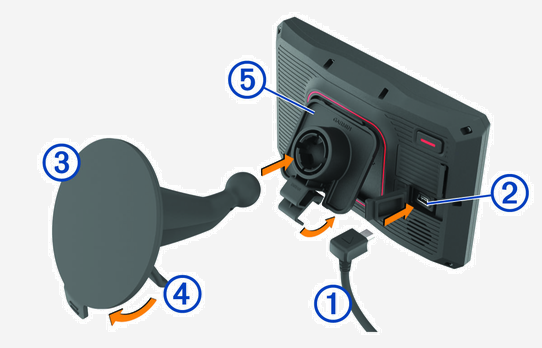

    Device and power cable connecting to the automotive mount with callouts
  2. Remove the clear plastic from the suction cup .
  3. Clean and dry your windshield and the suction cup with a lint-free cloth.
  4. Press the suction cup to the windshield, and flip the lever back toward the windshield.
  5. Snap the cradle onto the suction cup arm.
  6. Fit the bottom of your device into the cradle.
  7. Press the device into the cradle until it snaps into place.
  8. Plug the other end of the automotive power cable into a power outlet.
