Mounting the Device on a Roll Bar



  1. Using a flat head screwdriver or 9/32 in. (7 mm) nut driver, loosen the bolt on the roll bar mount until the ring separates.

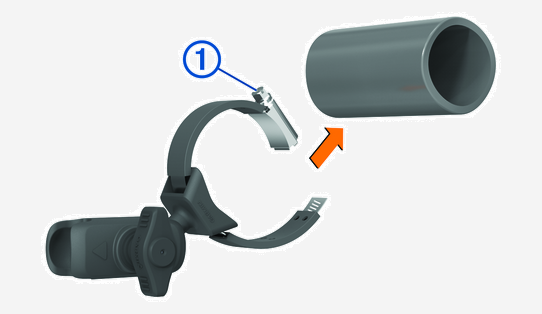

    Roll bar mount assembly with a callout
  2. Place the mount around the roll bar.
  3. Tighten the bolt on the mount until the ring is secure.
  4. Insert the ball on the Group Ride mount into the double-socket arm .

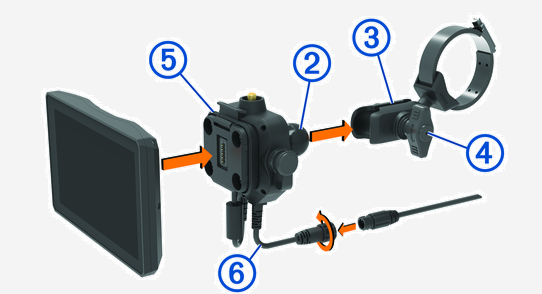

    Device and power cable connecting to the roll bar mount with callouts
  5. Tighten the knob slightly.
  6. If necessary, rotate the Group Ride mount so the Garmin logo faces up, and adjust the mount for better viewing and operation.
  7. Tighten the knob to secure the mount.
  8. Press the device into the Group Ride mount until it snaps into place.
  9. Connect the Group Ride power cable to the connector on the vehicle wiring harness.
  10. Tighten the collar around the connected power cables.
  11. Route the power cable along a suitable path in your vehicle, and secure it using the included zip ties.
