Complete System Wiring

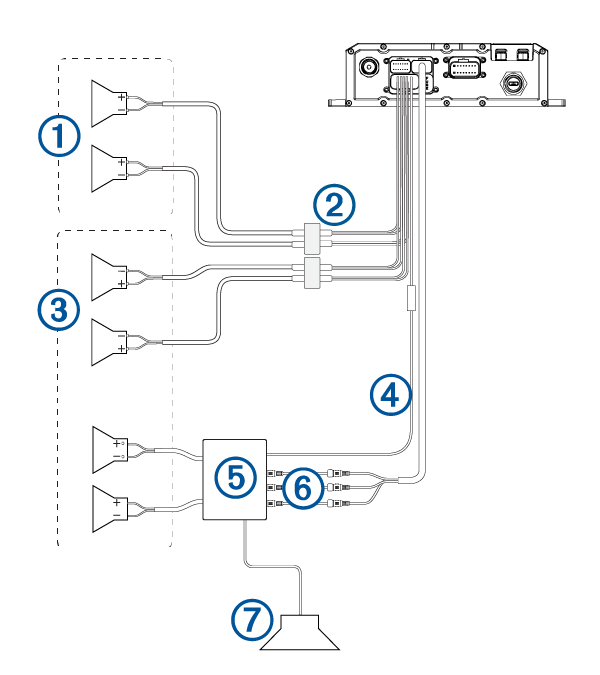

This diagram illustrates a system installation with an external amplifier and subwoofer connected to the stereo using a line out.

NOTE: You can also connect speakers to the speaker wires for the internal stereo amplifier while using an external amplifier connected to the line out. Adjusting the volume affects speakers connected to the internal amplifier and speakers connected to the line out. This may result in uneven volume levels.

Zone 2 speakers

Water-tight connection

Zone 1 speakers

Amplifier-on signal wire

Powered amplifier

Line out and subwoofer out

Subwoofer
