Mounting the Device on a Roll Bar



WARNING: Both the device and its mount contain magnets. Under certain circumstances, magnets may cause interference with some internal medical devices and electronic devices, including pacemakers, insulin pumps, or hard drives in laptop computers. Keep the device away from medical devices and electronic devices.

  1. Loosen the knob on the roll bar mount.

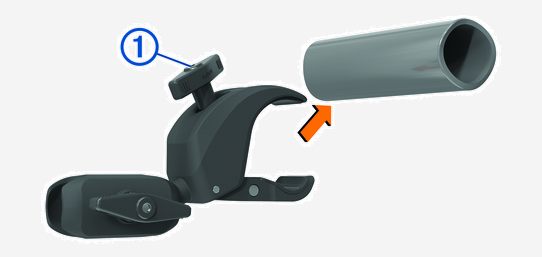

    Roll bar mount assembly with a callout
  2. Place the mount around the roll bar.
  3. Tighten the knob on the mount until the clamp is secure.
  4. Insert the ball on the Group Ride mount into the double-socket arm .

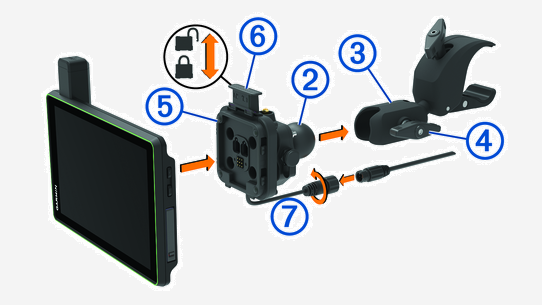

    Device and power cable connecting to the roll bar mount with callouts
  5. Tighten the knob slightly.
  6. If necessary, adjust the Group Ride mount for better viewing and operation.
  7. Tighten the knob to secure the mount.
  8. Place the device onto the magnetic mount, and push the lock down to secure the device to the mount.
  9. Connect the Group Ride power cable to the connector on the vehicle wiring harness.
  10. Tighten the collar around the connected power cables.
  11. Route the power cable along a suitable path in your vehicle, and secure it using the included zip ties.
