Group Ride Radio
- Enhance your riding
experience with location sharing and voice communication within your
riding group.
- Use the included push-to-talk fist mic or a
compatible Bluetooth helmet or headset for hands-free communication.
Radio Operation
- Using the Radio
- To use the Group Ride Radio, you must first
connect a compatible
GPSr and an antenna to the Group Ride Mount.
- You can then use the GPSr radio page to create
radio presets, select a radio channel, and configure squelch codes.
- The GPSr will configure radio settings
automatically when you join or create a group ride.
- Radio Range
- The Group Ride Radio includes a VHF antenna that
provides an operational range between ½ and 8 miles.

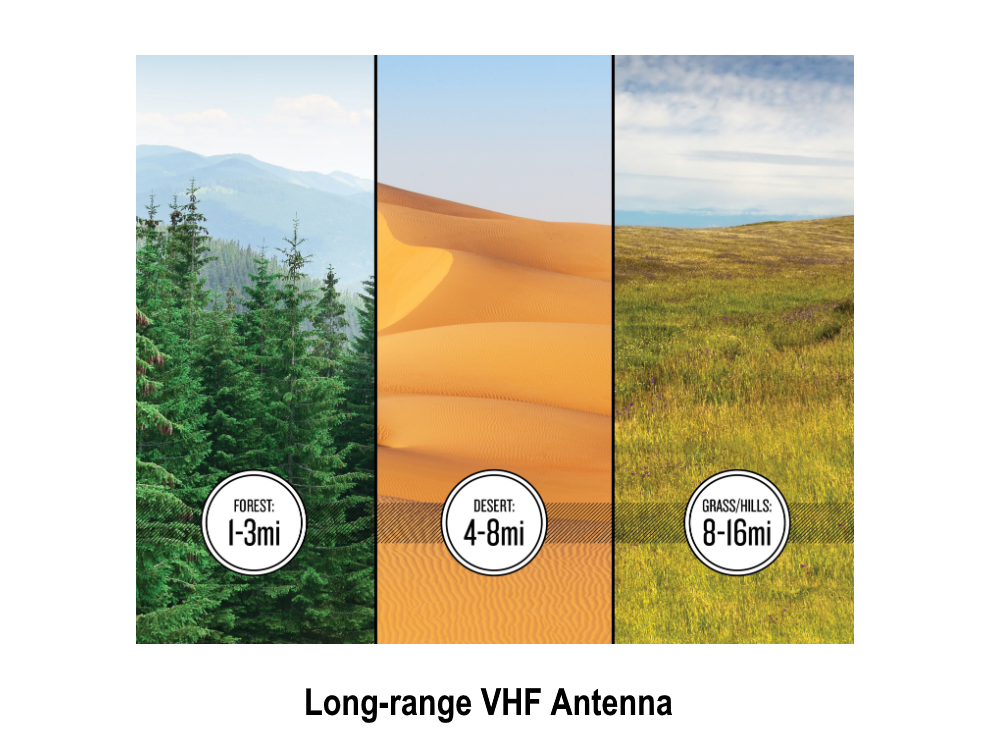

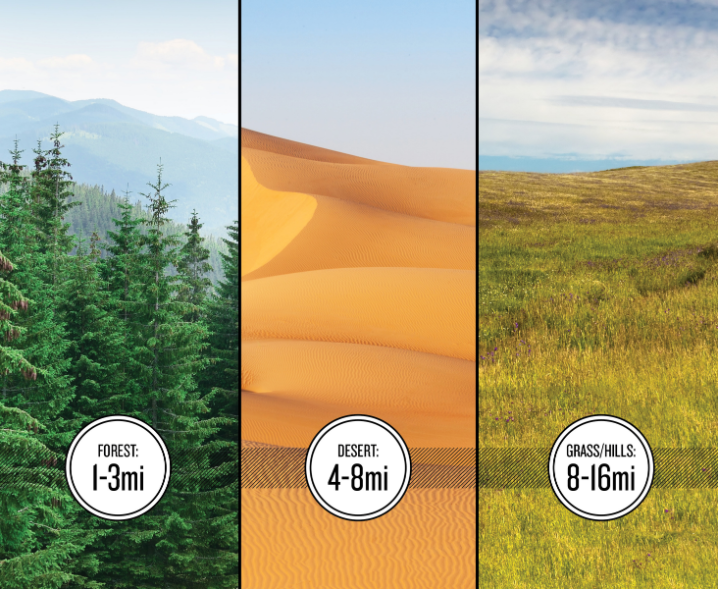

- An availble Long-range VHF antenna can extend
the Group Ride Radio operational range up to 16 miles.
- Radio performance will vary with antenna
selection and installation, local terrain, and other line-of-sight
limitations.
|
|
Standard VHF Antenna |
Long-range VHF Antenna |
- Legal Restrictions
- Always verify country, state, county, or
city laws regarding the use of radio communication products before using
the radio.
- Certain frequencies may be illegal to use
in the state or country where you intend to use the radio.
- Using the radio in a prohibited location
may result in the device being inoperable until it is moved to an
authorized location.
- It is the responsibility of the user of
the Group Ride Radio to know the specific regulations for their
state/country.
Radio Frequencies
- MURS
- The Group Ride Radio operates within
Multi-Use Radio Service (MURS) frequencies.
- MURS is a private, two-way short-distance voice
and data radio communications service.
- This service operates on five VHF channels in
the 151 - 154 MHz spectrum range.
- MURS users must cooperate in using the five
channels to reduce interference to other users.
- No user has priority over any other user, but
all users must yield to emergency communications.
- The usable range between two radios
can vary depending on antenna height, terrain and weather.
- Maximum allowable output power for any MURS
radio is two watts.
- Preset Channels
- MURS radios operate on the
following five channels/frequencies:
Channel |
Frequency |
Bandwidth |
Max Power |
1 |
151.820 MHz |
11.25 kHz |
2 W |
2 |
151.880 MHz |
11.25 kHz |
2 W |
3 |
151.940 MHz |
11.25 kHz |
2 W |
4 |
154.570 MHz |
20.00 kHz |
2 W |
5 |
154.600 MHz |
20.00 kHz |
2 W |
- Group Ride
- Select to automatically
configure the radio for the channel and code specified for the active
Group Ride.
- Custom Channels
- The Group Ride Radio allows the operator to
create up to six user defined custom channel configurations.
- Apply commonly used squelch tones/codes
(see below) to each custom channel for quick and easy access in the
field.
- Manual Mode
- Allows the operator to manually configure
the channel and squelch tone/code combination as desired.
- Squelch
- Open Squelch
- Select a value from 0 to 12 to reduce unwanted static noise (0 = Off, 12 = maximum)
- Squelch Tones/Codes
- Squelch tones/codes allow you to mute other users on the same channel so you hear only the radios you
want to hear.
- Squelch tones/codes do not make your
conversation private (anyone on the same channel can still hear your
conversation).
- Calls on the same channel that are
not using
the same squelch code or squelch tone will be ignored.
- The Group Ride Radio supports the following squelch
tone/code systems:
- Licensing
- Operating on MURS frequencies is subject
to the rules specified in
47 C.F.R. Part 95 Subpart J.
- MURS is licensed by rule, meaning an
individual license is not required to operate a MURS radio.
- A station identification announcement is
not required when transmitting over MURS frequencies.
- A MURS transmitter may be operated in
locations where the FCC regulates radio communications.
- There are no age restrictions regarding
who may operate a MURS transmitter.
Software Updates
- Procedure
- The Group Ride Radio software version is checked each time it is
connected to a host device.
- When a newer software version is available, the host device will
apply the Group Ride Radio update automatically.
- Update History
Version |
Date |
Notes |
|
3.01 |
04DEC21 |
- Fixed an issue with group ride tracking.
- Improved Group Ride Caller ID reliability.
|
2.90 |
23SEP21 |
- Fixed an issue with group ride tracking.
|
2.20 |
17MAR21 |
- Improved Group Ride Caller ID reliability.
|
