Extended Functionality

• The Rino 75x provides access to 14 Dashboards.
• Dashboards allow you to show more features and functions when and where you need them.
• Provides at-a-glance information and added controls, you can multi-task without having to exit the current application.
• Dashboards can be enabled for each Main Menu page, the Status page, and the Map, Compass and Trip Computer pages.
• Dashboard availability may vary with each application.

Selecting Dashboards

• Choose from available dashboards to enhance your Rino 75x functionality:

Enable Dashboard

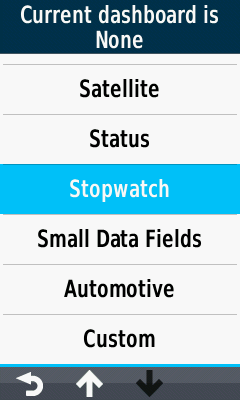

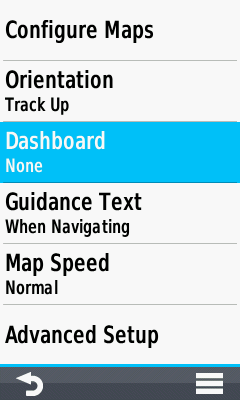

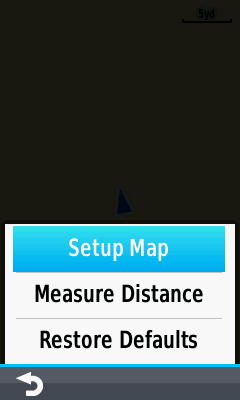

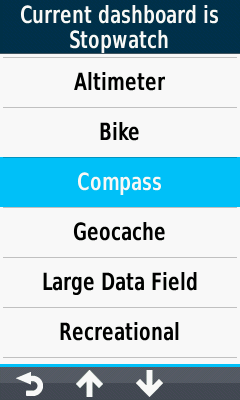

	Map page without active dashboard		[Setup Map]		Select [Dashboard]		Choose desired dashboard

Change Dashboard

• Use Enable Dashboard method or...

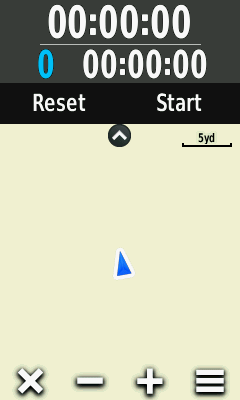

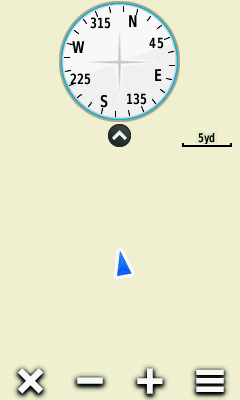

	Press and Hold active dashboard		Choose desired dashboard		Selected dashboard is enabled

Custom Dashboard

• Configure desired dashboards based on current navigation status:

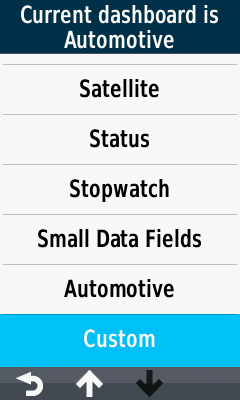

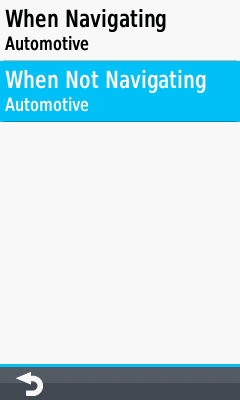

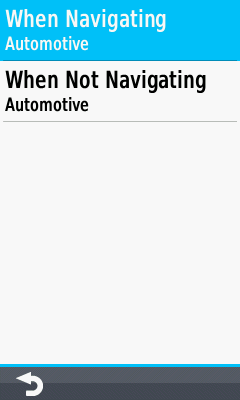

	Select [Custom]		Choose desired dashboard for [When Navigating]		Choose desired dashboard for [When Not Navigating]

Available Dashboards

• Select desired Dashboard to view more information

Altimeter	Automotive	Bike	Compass
Contacts	Favorites	Geocaching	Large Data Field
Radio	Recreational	Satellite	Small Data Fields
	Status	Stopwatch
