Heart Rate Monitor

Overview


Train more effectively with a Garmin Heart Rate Monitor. When you carry the sensor around your chest during an activity, your heart rate is wirelessly transmitted to your compatible GPSr. So you know immediately how intensively you train. The belt is made of a soft material and offers high wearing comfort. The size is adjustable so that the belt rests securely against the body during the activity. After the first pairing with your compatible GPSr, the Heart Rate Monitor is detected automatically each time. In addition, the Heart Rate Monitor is optimized for busy places like fitness studios or road racing so only your GPSr receives the data signal from your Heart Rate Monitor.





Heart Rate Monitor Specification
Battery Type

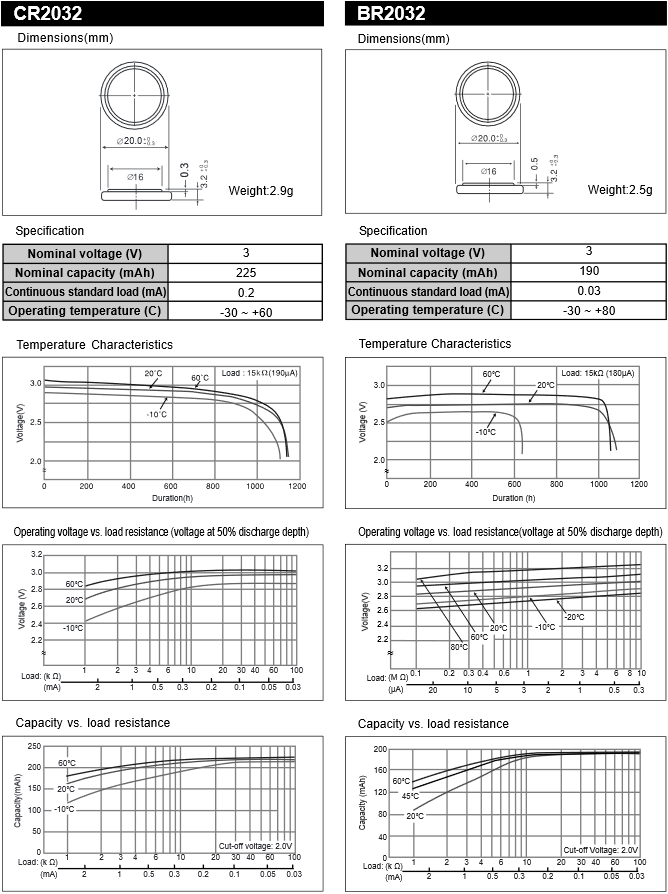

User replaceable CR2032 or BR2032



Battery Life
Up to 36 months (standard HR sensor)
Up to 54 months (premium HR sensor)
(avg. one hour use per day)



Water Resistance
Water resistant to 32.9ft. (10m)
(does not transmit HR data while swimming)



Operating Temperature
CR2032: -04°F to 140°F (-20°C to 60°C)
BR2032: -22°F to 176°F (-30°C to 80°C)
====================
 		==
 		========================================
Radio Frequency
2.4 GHz ANT+ wireless communication protocol





Getting Started


Out of the box, the Heart Rate monitor is very easy to use. All you need to do is install the battery, wrap the sensor around your chest, and connect your GPSr. The Heart Rate monitor automatically starts sending data after you put it on.

Connect to HR Monitor

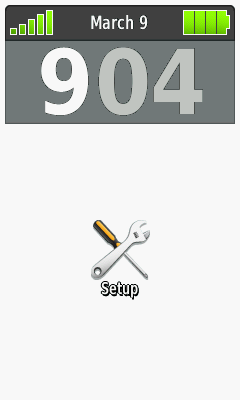

Select [Setup]

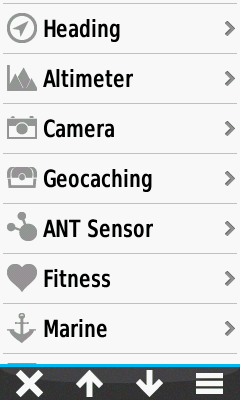

Scroll menu to

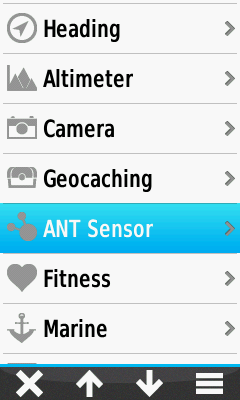

[ANT Sensor]
Select [ANT Sensor]
Select [HR Monitor]

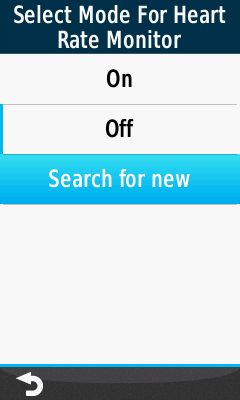

Select [Search for new]
HR Monitor

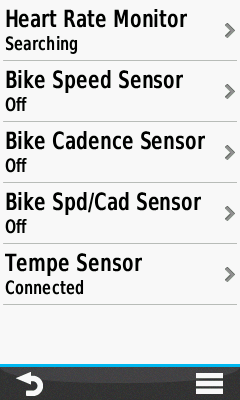

'Searching...'
HR Monitor
'Connected.'







Enable HR Monitor







Select [Setup]
Scroll menu to
[ANT Sensor]
Select [ANT Sensor]
Select [HR Monitor]

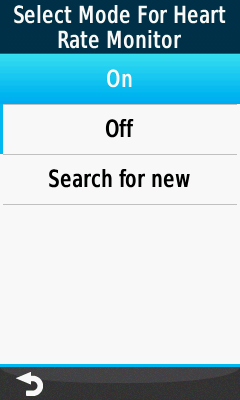

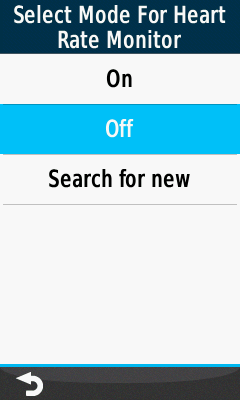

Select [On]
HR Monitor
'Searching...'
HR Monitor

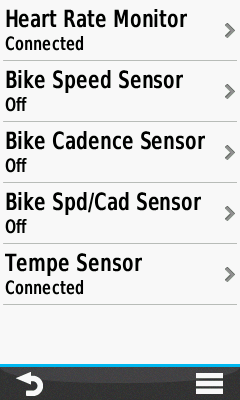

'Connected.'













Disable HR Monitor







Select [Setup]
Scroll menu to

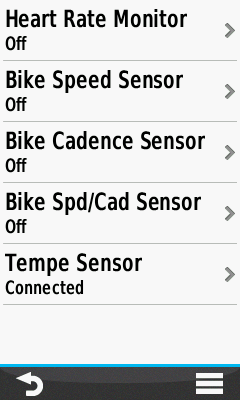

[ANT Sensor]
Select [ANT Sensor]
Select [HR Monitor]

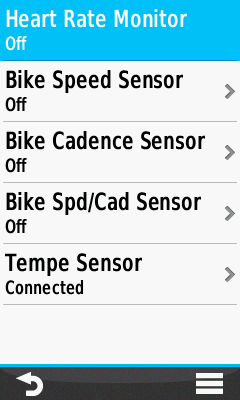

Select [Off]
HR Monitor Disabled















View HR Monitor Data

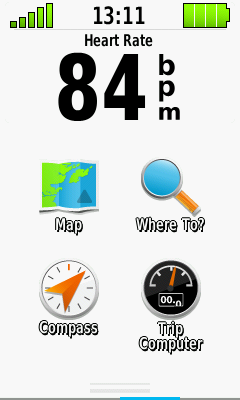

HR data displayed
in large data field
HR data displayed
in small data field

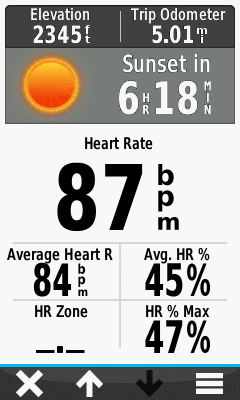

HR data displayed
in Trip Computer













Heart Rate Zone Calculations


Zone % of Maximum Heart Rate Perceived Exertion Benefits
1 50 - 60 %
  • Relaxed, easy pace
  • Rhythmic breathing
  • Beginning-level aerobic training
  • Reduces stress
2 60 - 70 %
  • Comfortable pace
  • Slightly deeper breathing
  • Conversation possible
  • Basic cardiovascular training
  • Good recovery pace
3 70 - 80 %
  • Moderate pace
  • More difficult to hold conversation
  • Improved aerobic capacity
  • Optimal cardiovascular training
4 80 - 90 %
  • Fast pace
  • A bit uncomfortable
  • Forceful breathing
  • Improved anaerobic capacity and threshold
  • Improved speed
5 90 - 100 %
  • Sprinting pace
  • Unsustainable for long period of time
  • Labored breathing
  • Anaerobic and muscular endurance
  • Increased power







BaseCamp and HR Monitor


With Track Log set to Record and a Heart Rate monitor connected, the Oregon 6xx will include heart rate data with each waypoint saved. Saved Track Logs can be imported into BaseCamp for analysis.

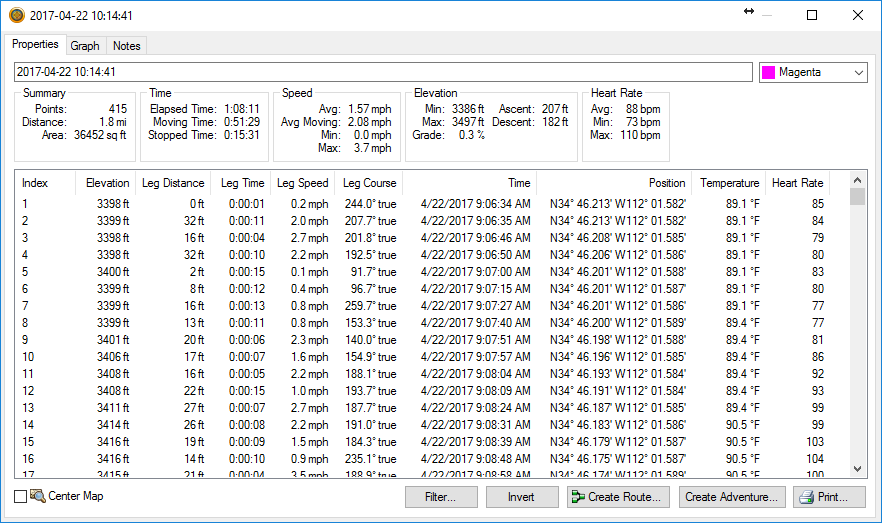

Saved Track Log Properties Tab includes recorded heart rate data for each track point

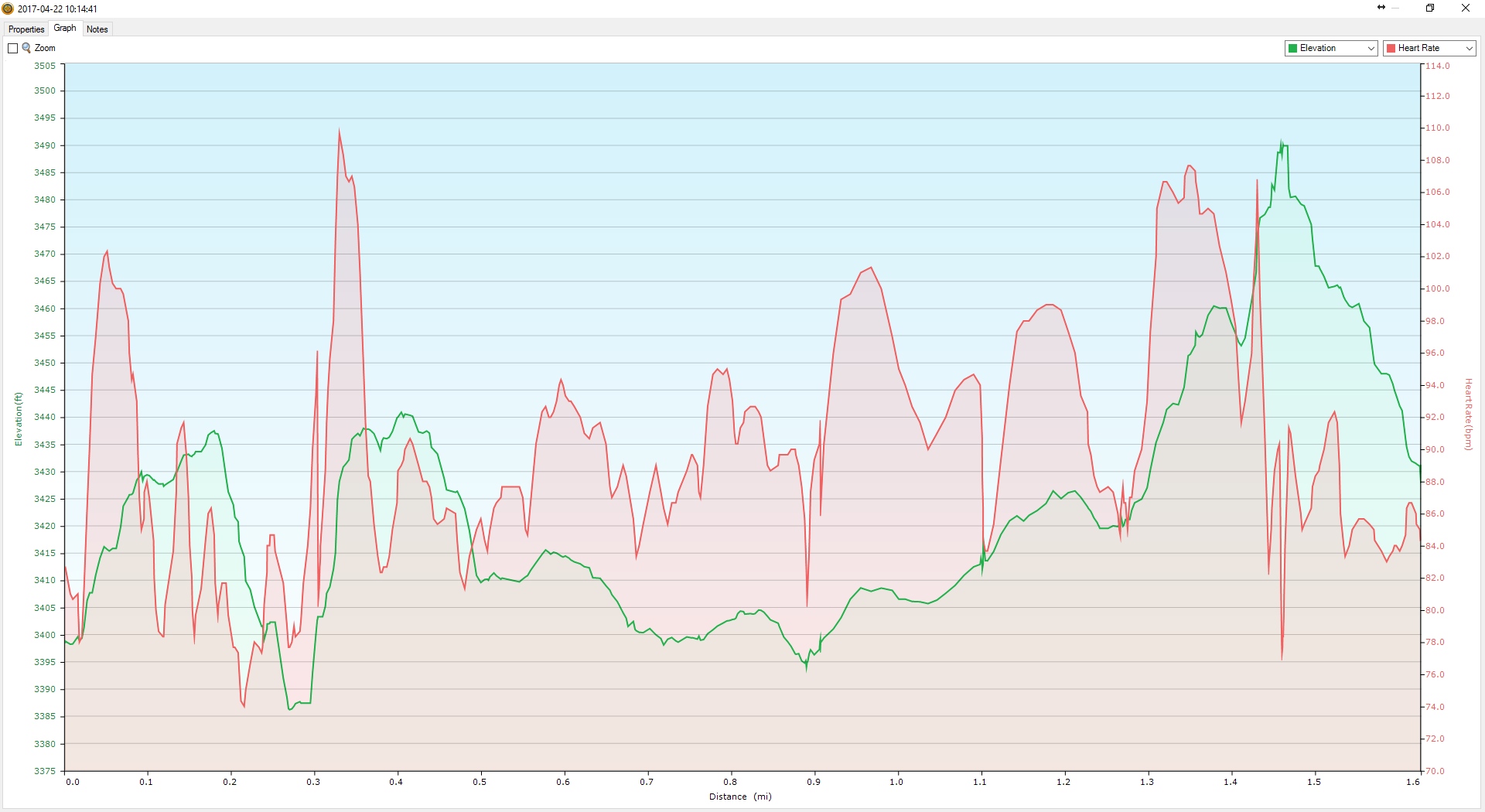

Saved Track Log Graph Tab displays heart rate data over time/distance
