Overview |
|
|

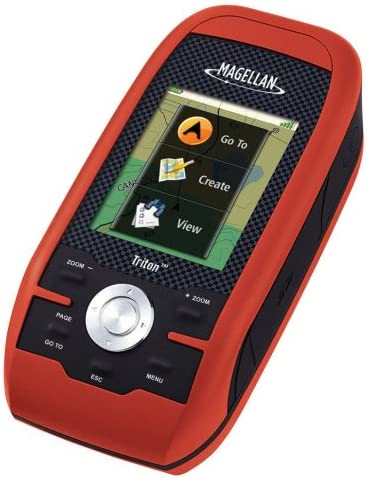

The new Magellan Triton 400 is built tough, with the
latest hardware - yet its simple software interface is a
snap to operate. Amazingly easy to use, Triton 400 is
perfect for the first-time GPS user. And the full-color
display, SD-card compatibility, enhanced features, fast
signal acquisition, reliable signal lock and precision
positioning make Triton 400 an excellent choice for the
advanced navigator.
The smartly designed
interface with simple menus and intuitive button and
scroll pad control make navigation fun and effortless.
The full-color crystal clear display shows all your maps
and navigation information in brilliant, easy-to-view
graphics. Instantly see all your maps, locations and
saved tracks and waypoints with just a click or two.
Unlike other complicated devices that require you to
scroll through page after page, Triton 400 gets you to
the information you want with a few keystrokes.
SD-card compatibility maximizes your navigation
capability. Add an unlimited amount of marine
cartography, topographic maps and other content to
navigate all your outdoor adventures. Plus, Triton is
the first handheld GPS to offer compatibility with
National Geographic maps. These highly detailed
nation-wide topographic maps are based on USGS 1:24.000
series quads, offer seamless scalability with
customizable multi-layer overlays and much more.
Exclusive VantagePoint software enables easy management
of maps, user generated content, updates and upgrades on
your PC. View saved routes and tracks. Customize them
for future trips or create new ones.
Triton is
designed for precision navigation, offering the fastest
GPS positioning acquisition in the industry with the
SiRFstar III chipset. An integrated high-sensitivity
antenna provides reliable signal reception even in heavy
cloud cover, canyons or deep woods. Built-in signal
augmentation reception (WAAS/EGNOS) provides 3-meter
accuracy.
Rugged and waterproof, your Triton 400
is built to withstand intense use, accidental impacts
and immersion in one meter of water for up to 30 minutes
(IPX-7). It's ready to guide you on any adventure.
The advanced features are also easy to use. View the
elevation profile for the trail ahead (or any route) or
even the track you just traveled. See the precise time
of sunrise/sunset any day of the year. Get a calculation
of the best hunting and fishing time. And much more.
Triton is built on the experience of hundreds of
thousands of GPS users and nearly 20 years of precision
positioning technology from Magellan. Triton 400: escape
to the outdoors today! |
|
|
|
|
|
|
Features |
|
|
- Amazing ease-of-use - Reinventing
handheld GPS, simple menus, instant access buttons,
intuitive keypad and crystal clear graphics let you navigate
without the need for a Ph.D.
- Full-color 2.2" display - The large
display shows maps, simple menus, navigation screens and
other data in brilliant color
- SD-card compatibility - An invaluable
feature enables you to use an unlimited amount of map data
for topographic and marine navigation. Store tracks, routes,
geocaches and more
- Add detailed maps - Upload optional
marine cartography, topographic maps, and more, including
the highly-detailed and feature-packed National Geographic
TOPO! State series and Weekend Explorer 3D maps to your OWN
SD cards
- Built-in maps - Basemap of the 48
contiguous United States, Alaska, and Canada (major
highways, city centers, bodies of water and more) plus
worldwide geographic boundaries
- Compass screen - See your direction of
travel, distance and position of destination, heading,
bearing, speed and more on the beautiful graphic compass
- 3-meter accuracy - SiRFstar III chipset
and integrated multidirectional antennae offer superior GPS
accuracy using the Wide Area Augmentation System (WAAS)
|
|
|
|
|
|
Specifications |
|
|
|
Part Number |
980-0002-001 |
|
Unit Dimensions |
2.16" x 4.65" x 1.22" (5.5 cm x 11.8 cm x 3.1 cm) |
|
Display Size |
2.2" (5.59 cm) Diagonal QVGA (240x320) |
|
Display Type |
Color Transflective (LED Backlight) |
|
Touch Screen |
No |
|
Weight |
6.6 oz (187 g) with batteries |
|
Battery Type |
AA x 2 |
|
Battery Life |
10 hours |
|
Waterproof |
Yes (IPX7) |
|
Floats |
No |
|
High Sensitivity Receiver |
Yes (SiRFstar III) |
|
GNSS Antenna |
Patch |
|
External Antenna |
No |
|
GNSS Constellations |
GPS +
WAAS/EGNOS |
|
Accuracy |
< 7 meters (GPS), 3 - 5 meters (WAAS/EGNOS) |
|
Position Update Rate |
1 Hz |
|
First Fix Cold |
< 2 minutes |
|
First Fix Warm |
< 1 minute |
|
First Fix Hot |
< 20 seconds |
|
CPU |
266 MHz |
|
Interface |
USB 1.1 |
|
Memory |
10 MB |
|
Data Card |
Yes (Secure Digital, 4 GB Max) |
|
Basemap |
Yes |
|
Detailed Maps |
Yes |
|
Add Maps |
Yes |
|
Turn by Turn Routing |
Yes (requires Magellan Street Map) |
|
Elevation Profile |
No |
|
Area Calculation |
Yes |
|
Waypoints |
Yes (500) |
|
Routes |
Yes (20) |
|
Trails |
Yes (5,000 track points) |
|
Track Log |
Yes |
|
Geocaches |
Yes |
|
Altimeter |
GPS |
|
Barometer |
No |
|
Compass |
GPS |
|
Flashlight |
No |
|
Microphone |
No |
|
Speaker |
No |
|
Audio Jack |
No |
|
Camera |
No |
|
Photo Viewer |
No |
|
Voice Recorder |
No |
|
Digital Music Player |
No |
|
NMEA (0183) Data |
Yes |
|
Operating Temperature |
14°F to 140°F (-10°C to 60°C) |
|
|
|
|
|
Documents |
|
|
|
Magellan Triton
400 User Manual (2007) |
|
Magellan Triton
400 User Manual (2009) |
|
Magellan Triton Series User Manual Addendum (2009) |
|
Magellan Triton
400 Data Sheet (2007) |
|
Magellan
Triton Series Features |
|
|
|
|
|
Media |
|
|
|
Press Release - Magellan Reinvents Handheld GPS with New Triton
Handheld Series |
|
Press Release - Magellan Announces Partnership with National
Park Foundation |
|
Press Release - Magellan First to Bring National Geographic Maps
to Handheld GPS Receivers |
|
Press Release - Magellan Launches VantagePoint - Enabling GPS
Users to Manage and Expand Their Navigation Experience |
|
Press Release - Magellan Announces New Triton Software with
Improved North American Basemap |
|
|
|
|
|
Update History |
|
|
|
1.78
(20AUG09) |
- Access to Main Menu From Any Navigation Page - The
ability to access the Main Menu (Go To, Create, View) from
any Navigation Page.
- Improved Track Management - The ability to Start, Stop,
Resume Track from the contextual menu.
- Improved Route Management - The ability to Go To Next or
Go To Previous point while in an active route.
- User Grid Coordinate System (Based on Additional
Coordinate Systems) - Added customizable User Grid
functionality based on additional coordinate system,
including Lambert Conic, Stereograph, Oblique Mercator, UTM,
and Polyconic.
- Area Calculation - The ability to calculate an area
based on active track, saved trails, and saved routes.
|
|
|
|
1.72
(29MAY09) |
- Added optional Navigation Fields to Map screen for
Triton 300/400/500 devices.
- Added Quick Info on Map screen.
- Contextual menu improvement.
- Power Saving - reduce backlight if battery level is 50%
or lower.
- Electronic Compass User Calibration UI improvement.
- Move low-level settings (e.g., time zone and power timer
settings) from the Profiles to Settings.
- Add additional settings to Profile.
- New Coordinate and Elevation Entry UI.
- New Strip Compass Navigation screen.
- New Road Navigation screen.
- User Grid (Trans. Mercator only).
- Coordinate Fields display on the Info pages.
- User Object Selection improvement.
- Option to clear active track after trail was created.
- Option to turn ON/OFF Navigation Screens.
|
|
|
|
|
