Map Page Data Field Comparison





Q. Does the Map page on the GPSMAP 62/64/78 series with only two date fields enabled provide more usable map viewing space than the newer GPSMAP 67 with four data fields displayed?

A. No. Not even close. Here's why:


By the Numbers

• The GPSMAP 62/64/78 series full Map page resolution is 160 x 240 (38,400 pixels).
• The GPSMAP 67 series full Map page resolution is 240 x 376 (90,240 pixels), a 135% increase over the GPSMAP 62/64/78.
• With two data fields visible on a GPSMAP 62/64/78, the Map page resolution is reduced to 160 x 196 (31,360 pixels).
• With four data fields visible on a GPSMAP 67, the Map page resolution is reduced to 240 x 248 (59,520 pixels), a 89% increase over the GPSMAP 62/64/78.

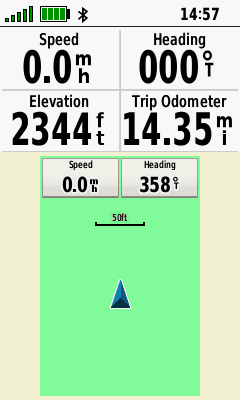

• GPSMAP 62/64/78 Map page transposed over a GPSMAP 67 Map page for comparison:





Scale and Resolution

• Map data such as waypoints and POIs are always displayed on the Map page at a fixed size, giving the GPSMAP 67 a clear advantage.
• All remaining map information is scaled based on the selected Map page zoom level.

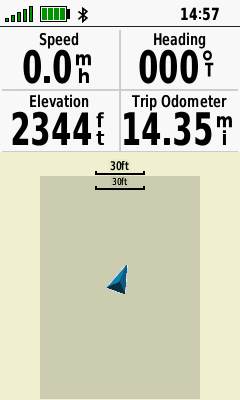

• Notice when a GPSMAP 62/64/78 Map page is transposed over a GPSMAP 67 Map page, both scales use the same number of pixels:





The Grand Illusion

• The GPSMAP 62/64/78 series use a 2.6" (1.43" x 2.15") display at 110 ppi.
• The GPSMAP 67 series are equipped with a 3.0" (1.5" x 2.5") display at 155 ppi.
• When rendering the Map page, the GPSr does not care about the actual physical dimensions of the screen, it only cares about pixel count.
• While a GPSMAP 62/64/78 Map page with two data fields enabled allows more of the screen to display map data compared to a GPSMAP 67 with four data fields enabled, the GPSMAP 67 Map page still shows 89% more map information than a GPSMAP 62/64/78:
