Keyboard

• Marking a waypoint.
• Saving a track log.
• Entering coordinates.
• Logging a geocache.
• Searching POI's.
• Sending an inReach Message.
• Text entry on the GPSMAP 66sr is accomplished using the keypad configurations illustrated below.
• Use the D-PAD to select the desired letter, number or symbol, then press (Enter) to confirm.
• Select [Done] and press (Enter) when complete.

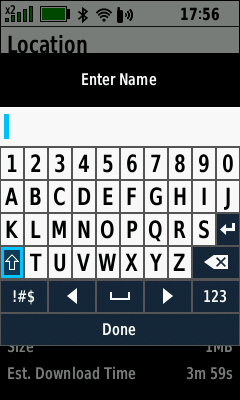

Keyboard Selection

• Select keys shown to change keyboard layout and case.
• Press (Menu) > [Keyboard Language] to change keyboard language.
• Tip: Use (+) (-) buttons to move cursor left or right in text input string.
• Tip: Press (Page) button to shift between upper case and lower case.
• Tip: Press (Mark) button to cycle between available keyboards.

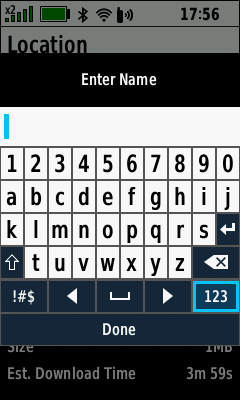

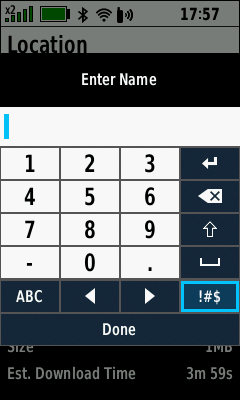

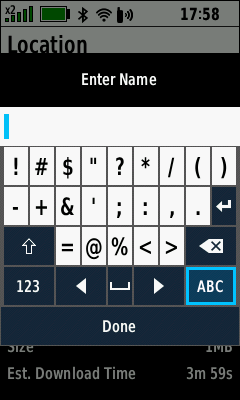

Upper case	Lower case	Numbers	Symbols
Change Case	Select Numbers	Select Symbols	Select Letters

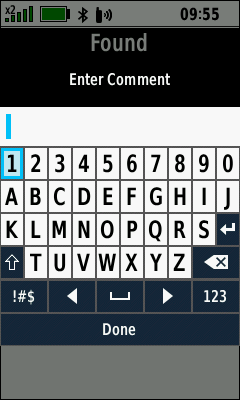

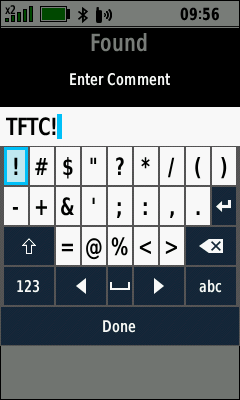

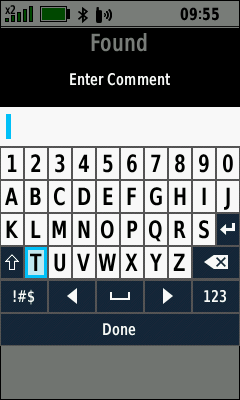

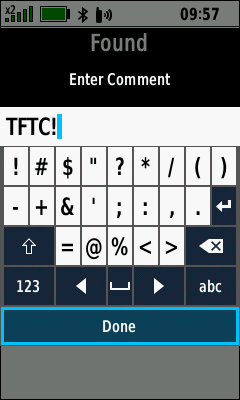

Enter Text

Use D-PAD to select desired characters	Press (Enter) to confirm each selection	Repeat as desired	Select [Done] when finished

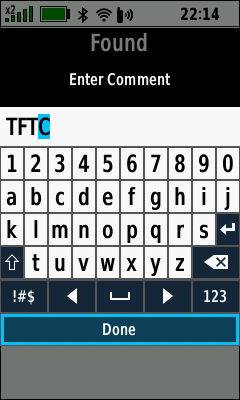

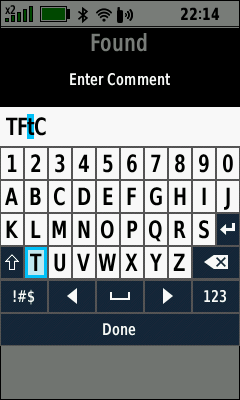

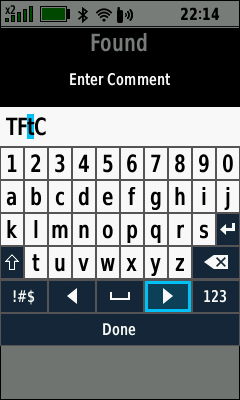

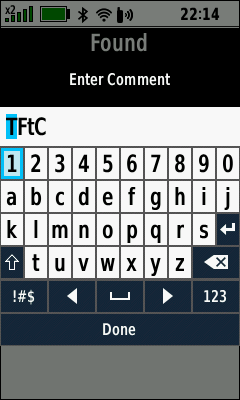

Edit Text

Current text is displayed	Use to position cursor	Make desired corrections	Select [Done] when finished

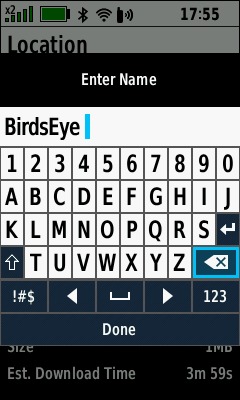

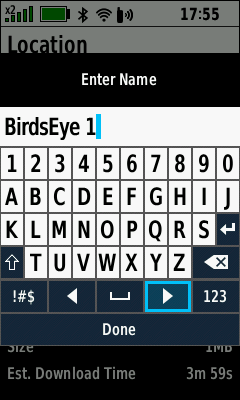

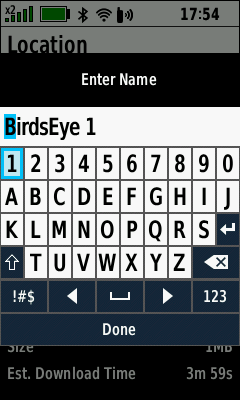

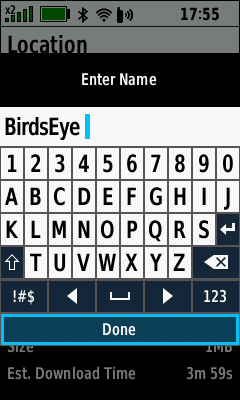

Delete Text



Current text is displayed	Use to position cursor	Select to delete each character	Select [Done] when finished

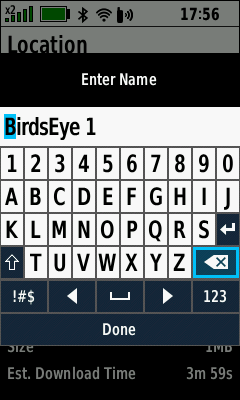

Delete Line



Current text is displayed	Select or to remove all text	All text is deleted	Enter new text as desired

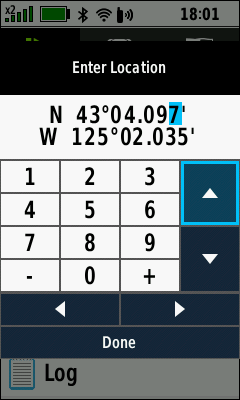

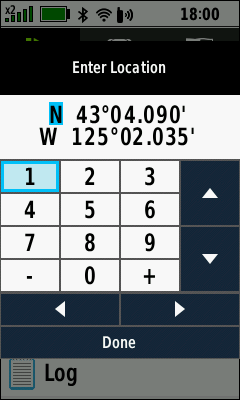

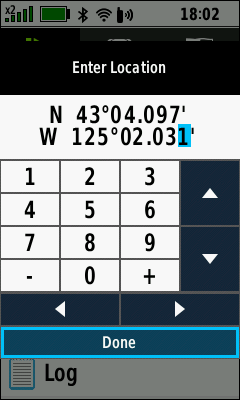

Enter Coordinates



Current coordinates are displayed	Use to position cursor	Use to change values	Select [Done] when finished

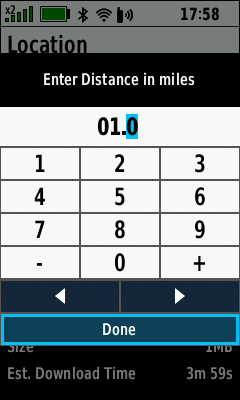

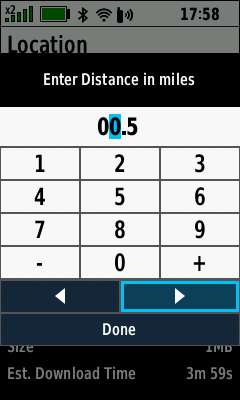

Enter Distance



Current distance is displayed	Use to position cursor	Enter desired values	Select [Done] when finished
