Dashboards
Extended Functionality
- The GPSMAP 66 series provide a total of 9
Dashboards.
- Dashboards allow you to show more features and functions when and where you need them.
- Provides at-a-glance information and added controls, you can multi-task without having to exit the current
page.
- Dashboards can be enabled for the Map, Compass and Trip Computer
pages.
Selecting Dashboards
- Choose from available dashboards to enhance your
GPSMAP 66 experience:

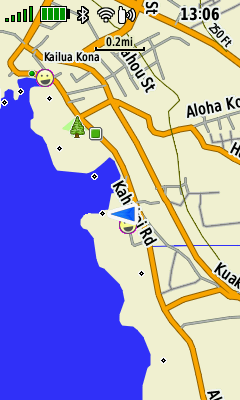

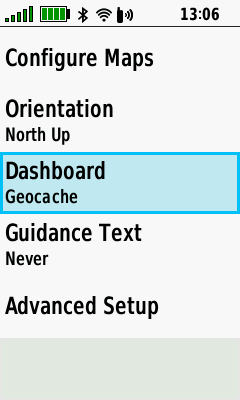

Enable Dashboard
|
|
|
|

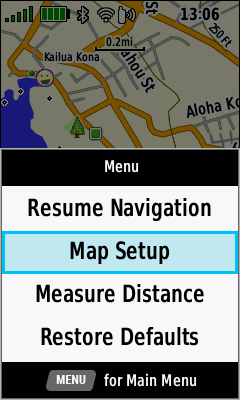

Press (Menu) |
Select [Map Setup] |
Select [Dashboard] |
Choose desired Dashboard |
|
|
|
|
|
|
|
|
Press (Quit) |

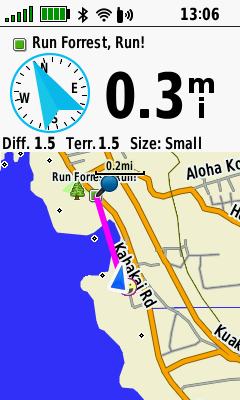

Selected Dashboard
is displayed |
|
|

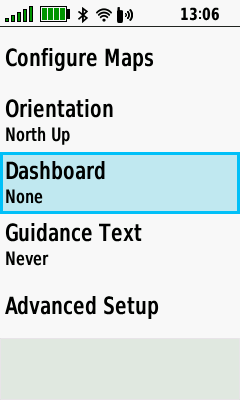

Disable Dashboard
|
|
|
|
Press (Menu) |
Select [Map Setup] |
Select [Dashboard] |
Choose [None] |
|
|
|
|
|
|
|
|
Press (Quit) |
Dashboard is
no longer displayed |
|
|

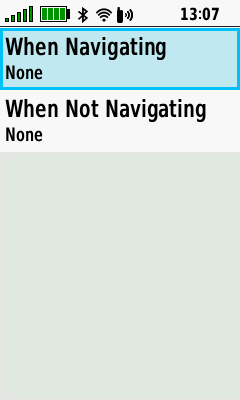

Custom Dashboard
- Configure desired dashboards based on current
navigation status:
|
|
|
|
Press (Menu) |
Select [Map Setup] |
Select [Dashboard] |
Choose [Custom] |
|
|
|
|
|
|
|
|
Select [When Navigating]
and choose a Dashboard |
Select [When Not Navigating]
and choose a Dashboard |
Custom Dashboards
are enabled |
|
Available Dashboards
|
|
|
|
|
|
|
|
|
|
Altimeter
|
|
Automotive
|
|
Compass |
|
|
|
|
|
|
|
|
|
|
Geocache
|
|
Large Data Field
|
|
Satellite
|
|
|
|
|
|
|
|
|
|
|
Small Data Fields
|
|
Status
|
|
Stopwatch
|
