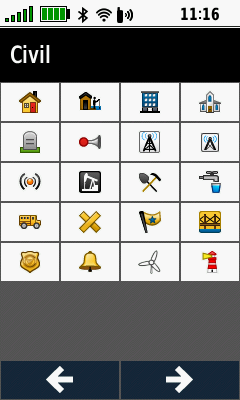

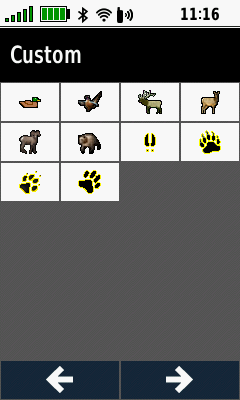

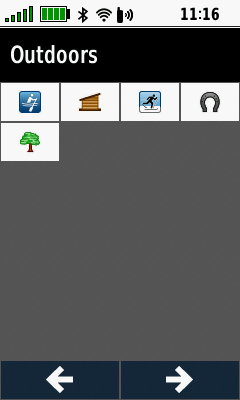

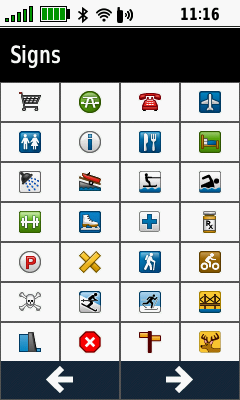

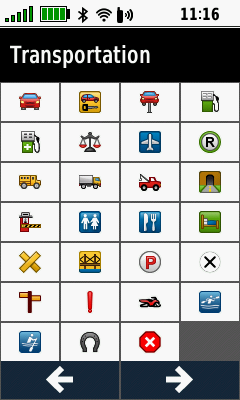

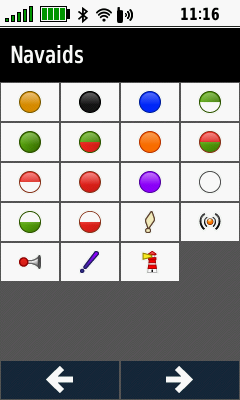

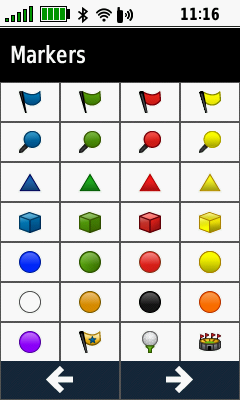

Waypoint Symbols





















Waypoint List

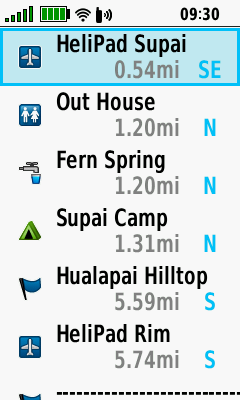

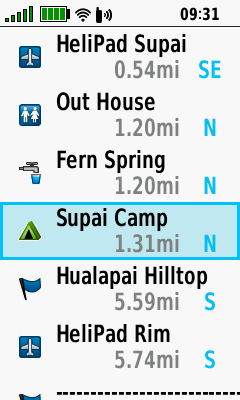

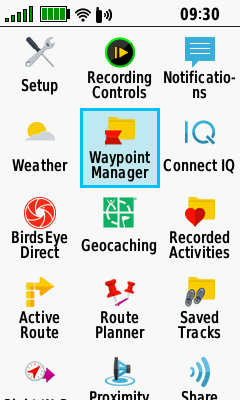

Select Waypoint

Open
Waypoint Manager		 Waypoint Manager lists
waypoints by proximity		 Select desired waypoint Press (Menu) for

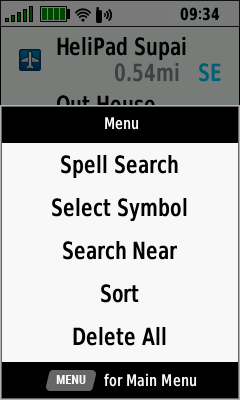

Search Options

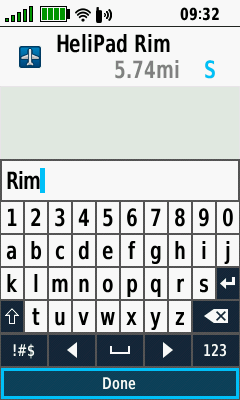

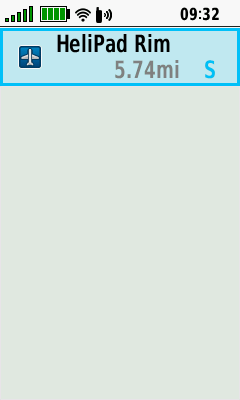

Spell Search

Press (Menu) and
Select [Spell Search]		 Enter desired
search term		 Select [Done] Waypoints with search
term listed by proximity

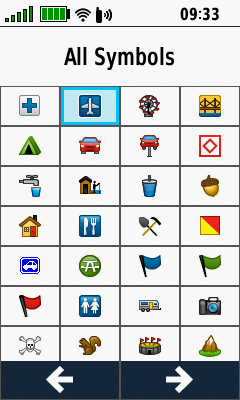

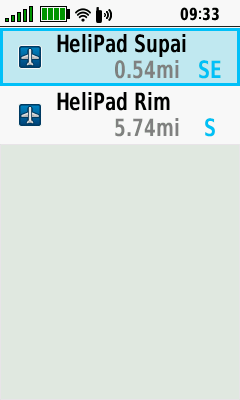

Select Symbol

Press (Menu) and
Select [Select Symbol]		 Choose desired symbol Press (Enter) Waypoints with selected
symbol listed by proximity

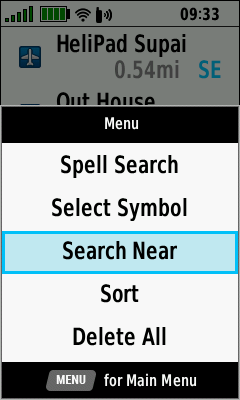

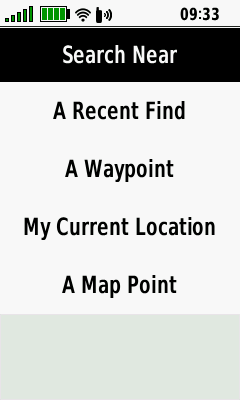

Search Near


Press (Menu) and
Select [Search Near]		 Choose desired
search near option

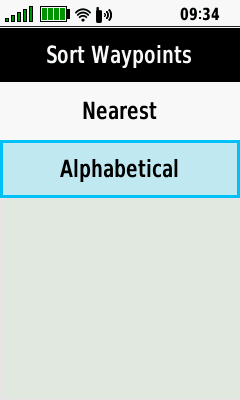

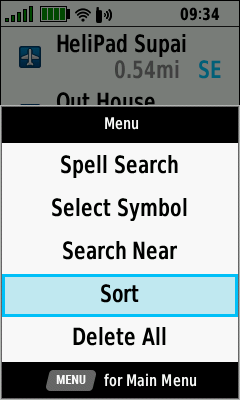

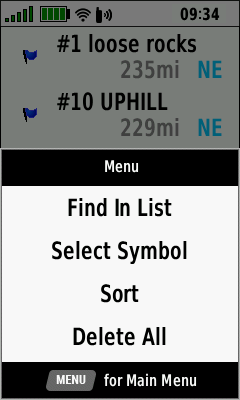

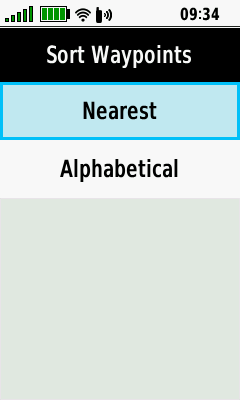

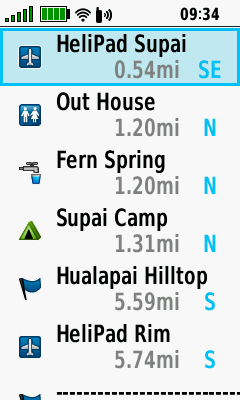

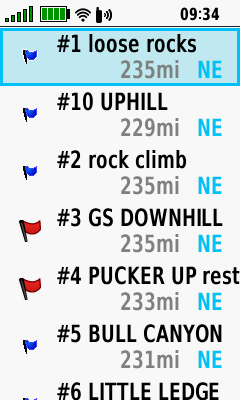

Sort

Press (Menu) and
Select [Sort]		 Select [Nearest] Waypoints listed by
proximity		 [Sort > Nearest]
option menu





Select [Alphabetical] Waypoints listed
alphabetically		 [Sort > Alphabetical]
option menu

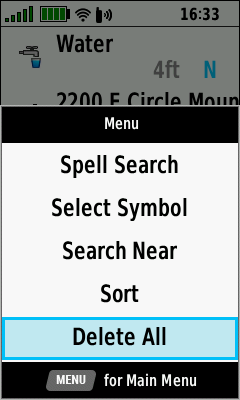

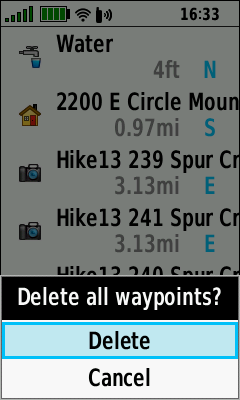

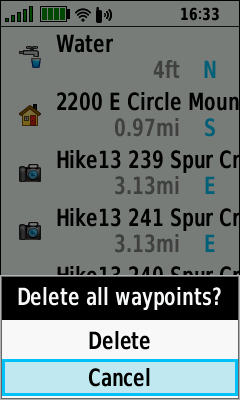

Delete All

Press (Menu) and
Select [Delete All]		 Select [Delete] to
Delete All Waypoints		 Select [Cancel] to
Abort




Waypoint Menu

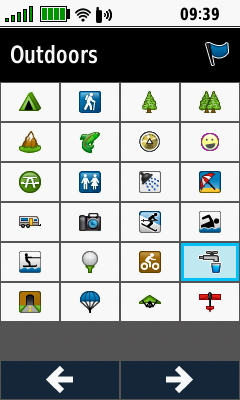

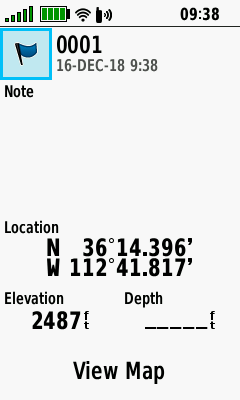

Edit Symbol


Select [Symbol]
Press (Enter)		 Select desired
waypoint symbol		 Waypoint symbol
is updated

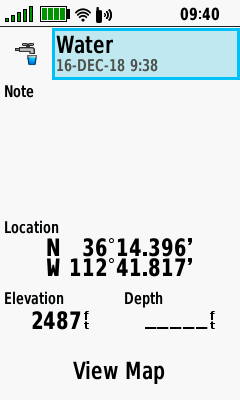

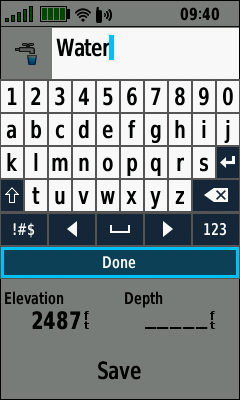

Edit Name


Select [Name]
Press (Enter)		 Enter waypoint name
Select [Done] and
Press (Enter)		 Waypoint name
is updated

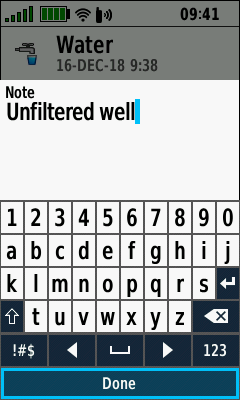

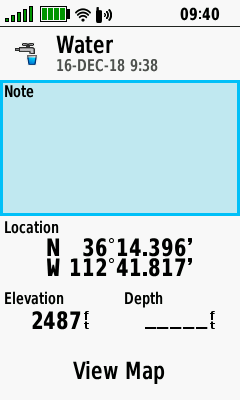

Edit Note


Select [Note]
Press (Enter)		 Enter waypoint note
Select [Done] and
Press (Enter)		 Waypoint note
is updated

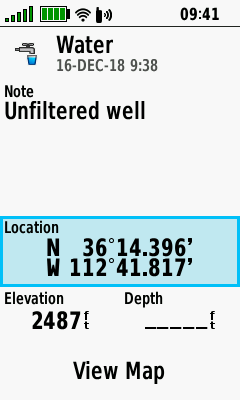

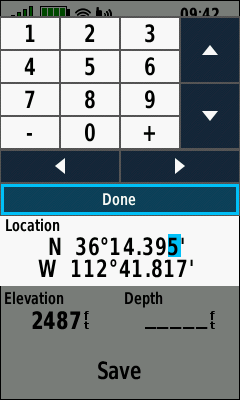

Edit Location


Select [Location]
Press (Enter)		 Edit coordinates
Select [Done] and
Press (Enter)		 Waypoint location
updated

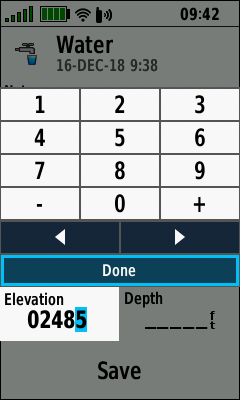

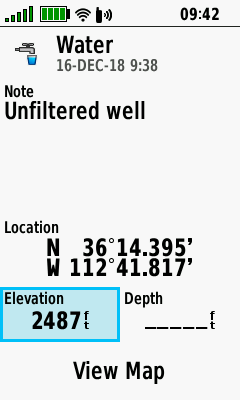

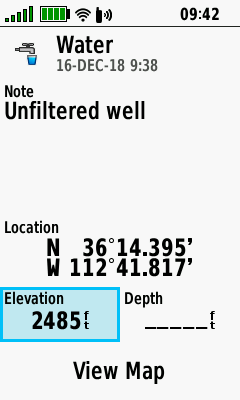

Edit Elevation


Select [Elevation]
Press (Enter)		 Enter elevation value
Select [Done] and
Press (Enter)		 Waypoint elevation
is updated

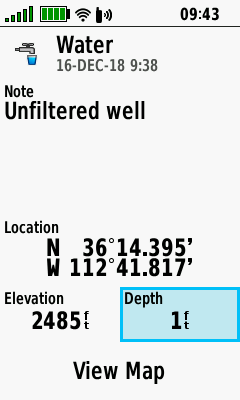

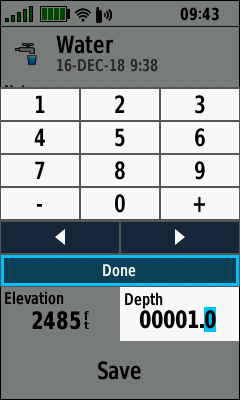

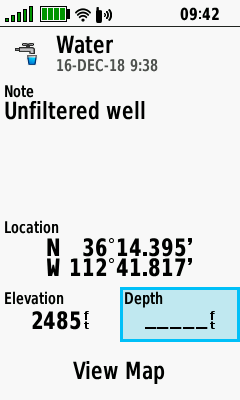

Edit Depth


Select [Depth]
Press (Enter)		 Enter depth value
Select [Done] and
Press (Enter)		 Waypoint depth
is updated

View Map

Select [View Map]
Press (Enter)		 Waypoint displayed
on Map page		 Press (Menu) and

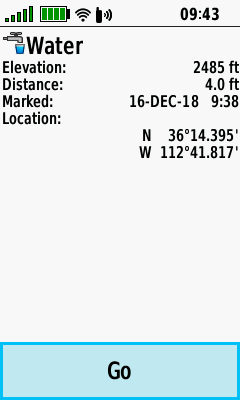

Select [Review Point]		 Waypoint details
are displayed

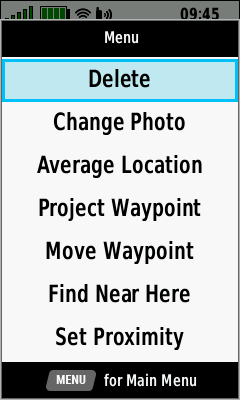

Option Menu

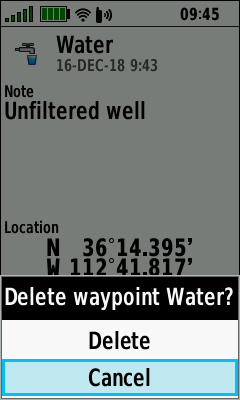

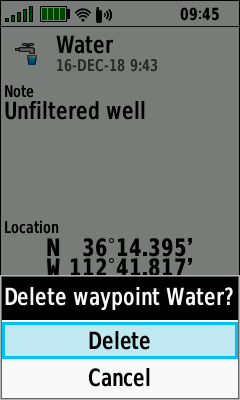

Delete Waypoint
Press (Menu) and
Select [Delete]		 Select [Delete] to proceed Select [Cancel] to abort

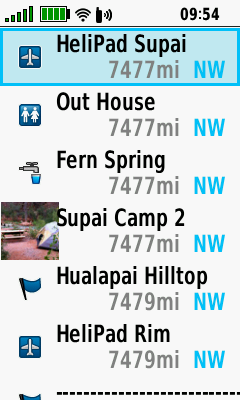

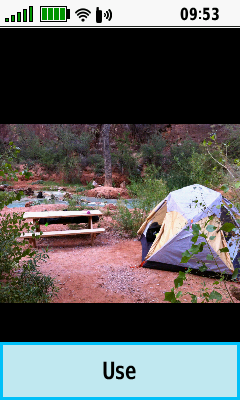

Change Photo

Press (Menu) and
Select [Change Photo]		 Select desired photo
and Press (Enter)		 Select [Use] and
Press (Enter)		 Waypoint displayed using
selected photo

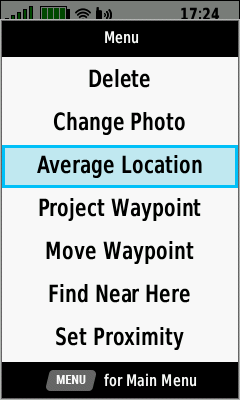

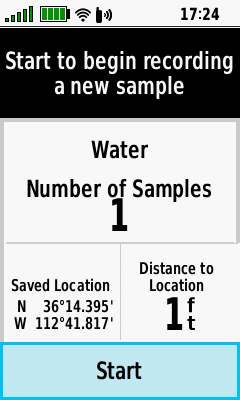

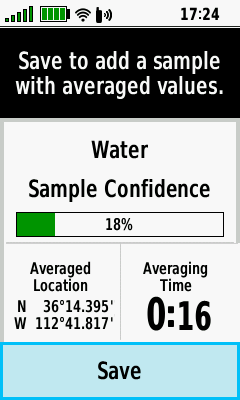

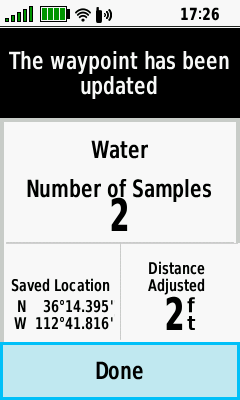

Average Location

Press (Menu) and
Select [Average Location]		 Select [Start] and
Press (Enter) to begin		 Select [Yes] and
Press (Enter) to proceed		 Confidence level will
fluctuate during
sampling process






Select [Save] and
Press (Enter) when
confidence level
value is acceptable		 Waypoint coordinates and
sample count are updated
Select [Done] and
Press (Enter) to complete

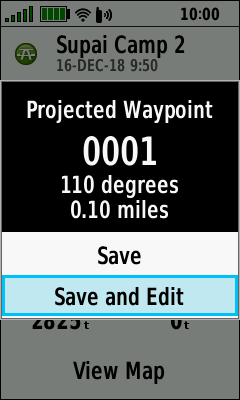

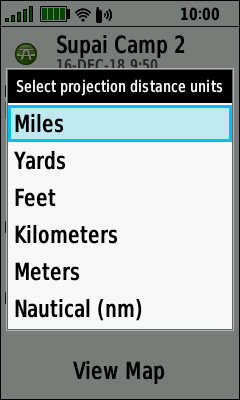

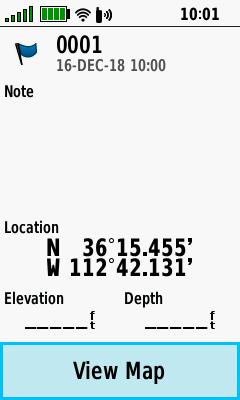

Project Waypoint

Press (Menu) and
Select [Project Waypoint]		 Enter desired bearing
Select [Done] and
Press (Enter)		 Select desired
distance units		 Enter desired distance
Select [Done] and
Press (Enter)




Select [Save] to return
to waypoint list		 Select [Save and Edit] to
view projected waypoint		 Projected waypoint details

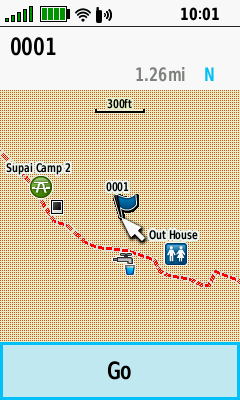

Select [View Map] and
Press (Enter)		 Projected waypoint map
Select [Go] and
Press (Enter) to
begin navigation

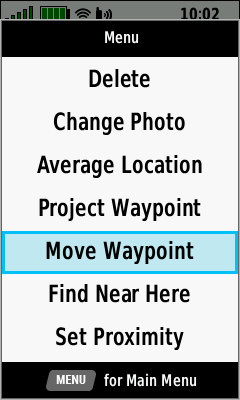

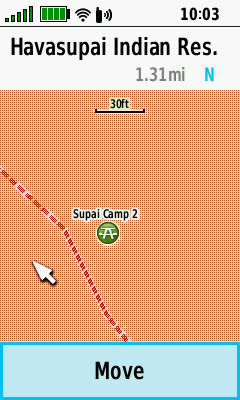

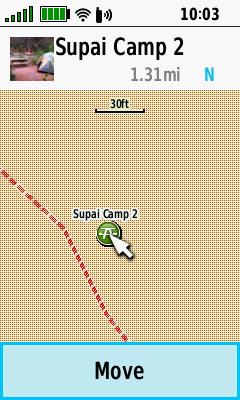

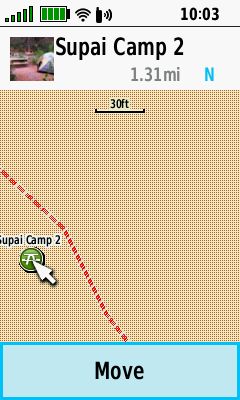

Move Waypoint

Press (Menu) and
Select [Move Waypoint]		 Select [Move] and
Press (Enter)		 Use D-PAD to move
pointer to new location		 Press (Enter) to
relocate waypoint

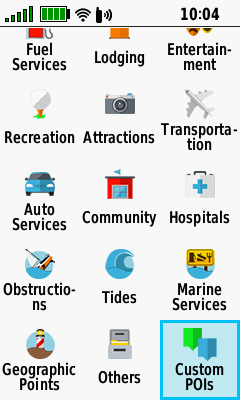

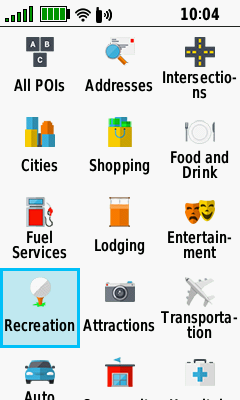

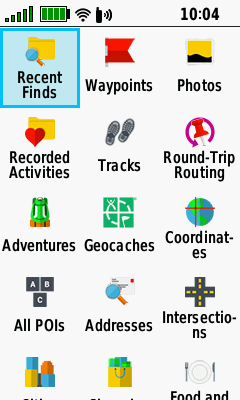

Find Near Here

Press (Menu) and
Select [Find Near Here]		 Select from available waypoint's and POI's

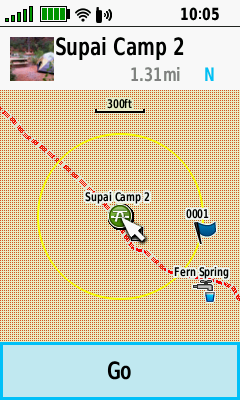

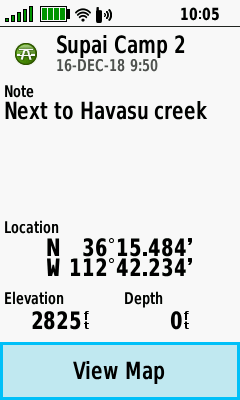

Set Proximity

Press (Menu) and
Select [Set Proximity]		 Enter desired radius
Select [Done] and
Press (Enter)		 Select [View Map] and
Press (Enter)		 Proximity ring displayed
around waypoint

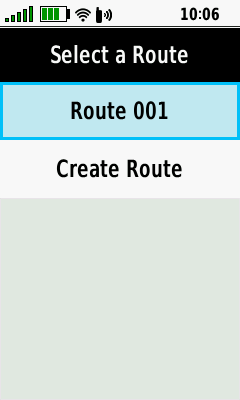

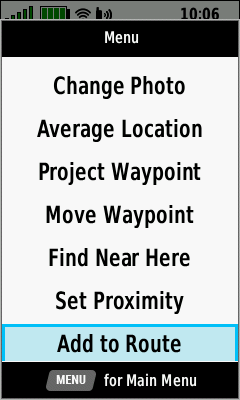

Add to Route
Press (Menu) and
Select [Add to Route]		 Select desired route, or
create a new route		 Waypoint successfully
added to selected route

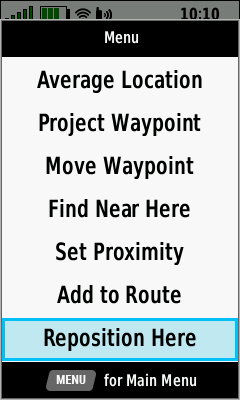

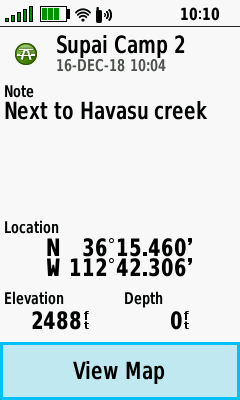

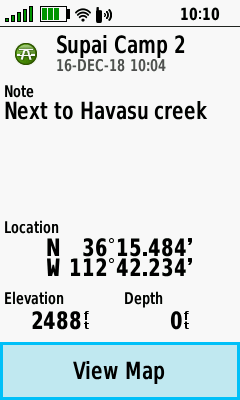

Reposition Here
Press (Menu) and
Select [Reposition Here]		 Original waypoint location Updated waypoint location
(current GPSr position)
