• Use the Satellite application to view:
  • GNSS coordinates
  • GNSS elevation
  • GNSS accuracy
  • GNSS satellite locations
  • GNSS satellite signal strength
  • Current device heading

Satellite Information

• There's more information available on the Satellite page beyond current location, accuracy and elevation.

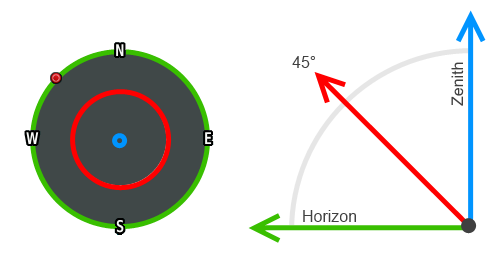

Satellite Map

• Determine satellite location relative to your current position:



• Zenith: Satellites located directly overhead provide better accuracy when calculating vertical position.
• Elevation: Most visible satellites are found midway in the sky and are best used to determine horizontal position.
• Horizon: Satellites near the horizon are more sensitive to geographic obstructions and therefore less reliable.
• : Dynamic heading indicator displayed when configured for 'North Up'.

Signal Strength

• Satellite signal acquisition sequence and signal:noise ratio status:

		=====		=====		=====		=====		=====
	A		B		C		D		E		F

• A: Searching for an available L1/E1 satellite signal.
• B: L1/E1 signal located, downloading data.
• C: L1/E1 data contributing to location calculation.
• D: Searching for an available L5/E5a satellite signal.
• E: L5/E5a signal located, downloading data.
• F: L5/E5a data contributing to location calculation.

Satellite Page Display

• Multi-GNSS, GPS only, Demo Mode and Multi-Band can be enabled/disabled in [Setup > System > Satellite].
• Press D-PAD    to alternate display between available satellite constellations while Multi-GNSS is enabled.

GPS only North Up Single Color Multi-Band Off	GPS only Track Up Multicolor Multi-Band On	Multi-GNSS Track Up Single Color Multi-Band Off	Multi-GNSS North Up Multicolor Multi-Band On

Option Menu

• Press (MENU) to open the Satellite page option menu:


• Use Demo Mode - Disables GPS and enables Demo Mode.
• Set Location On Map - Choose desired location for GPS simulation.
• Autolocate Position - Clears existing satellite almanac and begins a new search for available signals.

• Use Satellite System - Disables Demo Mode and enables GPS.

• Track Up - The satellite map compass will display the current heading centered at the top of the screen.
• North Up - The satellite map compass is locked 'north up' with serving as a dynamic heading indicator.

• Single Color - All satellite icons and signals are displayed using the default color.
• Multicolor - Each satellite icon and signal set is displayed using a unique color.
