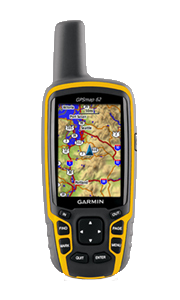

GPSMAP 62
010-00868-00

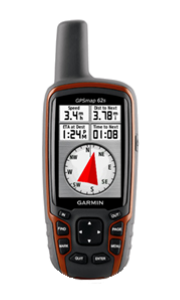

GPSMAP 62s
010-00868-01

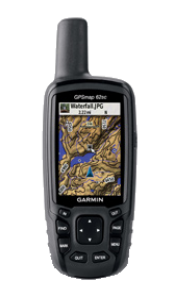

GPSMAP 62sc
010-00868-20

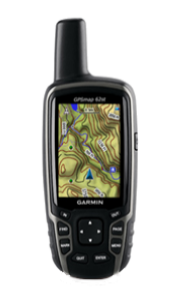

GPSMAP 62st
010-00868-02

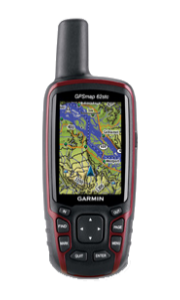

GPSMAP 62stc
010-00868-21
|
GPSMAP 62 010-00868-00 |
GPSMAP 62s 010-00868-01 |
GPSMAP 62sc 010-00868-20 |
GPSMAP 62st 010-00868-02 |
GPSMAP 62stc 010-00868-21 |
|
| General | |||||
| Unit Dimensions | 2.4” x 6.3” x 1.4” (6.1 x 16.0 x 3.6 cm) | ||||
| Weight | 9.2 oz (260 g) with batteries | ||||
| Display Size | 1.43" x 2.15" (3.6 x 5.5 cm) | ||||
| Display Resolution | 160 x 240 pixels (110 ppi) | ||||
| Display Type | 2.6" 65K color TFT | ||||
| Touchscreen | No | ||||
| Waterproofing | IPX7 | ||||
| Floats | No | ||||
| Battery | 2 AA (NiMH or Lithium recommended) | ||||
| Battery Life | 20 hours | 16 hours | 20 hours | 16 hours | |
| Integral Battery Charger | No | ||||
| GPS Antenna | Quad Helix | ||||
| GPS Chipset | STM Cartesio ST2062 | ||||
| High Sensitivity GPS Receiver | Yes | ||||
| GNSS Networks | GPS + WAAS/EGNOS | ||||
| Interface | mini USB | ||||
| Operating Temperature | 5° to 158°F (-15° to 70°C) | ||||
| Maps and Memory | |||||
| Basemap | Yes | ||||
| Preloaded Map | No | Yes (topographic 100K) | |||
| Ability to Add Maps | Yes (3,000 map segments) | ||||
| Garmin Custom Maps | Yes (100 custom map tiles) | ||||
| Garmin BirdsEye Maps | Yes (250 BirdsEye imagery files) | ||||
| Internal Memory | 1.7 GB | 3.5 GB | |||
| Accepts Data Card | No | Yes (microSD, Max 32GB, Class 4 to 10) | |||
| Custom POIs | Yes | ||||
| Waypoints | 2,000 | ||||
| Routes | 200 | ||||
| Track Log | 10,000 points, 200 saved tracks, 2,000 archive tracks | ||||
| Automatic Routing | Yes (with optional mapping for detailed roads) | ||||
| Sensors | |||||
| Electric Compass | No | Yes (tilt-compensated 3-axis) | |||
| Barometric Altimeter | Yes | ||||
| UV Sensor | No | ||||
| Microphone | |||||
| Outdoor Recreational Features | |||||
| Geocaching Friendly | Yes (Paperless) - 5,000 geocaches | ||||
| Outdoor GPS Games | No | ||||
| Flashlight | |||||
| Camera | No | 5 megapixel, auto focus, digital zoom | No | 5 megapixel, auto focus, digital zoom | |
| Picture Viewer | Yes | ||||
| Photo Navigation | |||||
| Hunt/Fish Calendar | |||||
| Sun/Moon Information | |||||
| Area Calculation | |||||
| Tide Tables | Yes (with optional Bluechart) | ||||
| Radio | No | ||||
| Multimedia | |||||
| Wireless | |||||
| Garmin Connect | Yes | ||||
| Smart Notifications | No | ||||
| LiveTrack | |||||
| Wireless Unit to Unit Transfer | No | Yes | |||
| Connect IQ | No | ||||
| Active Weather | |||||
