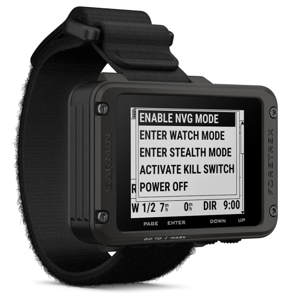

Foretrex 801
010-02759-00

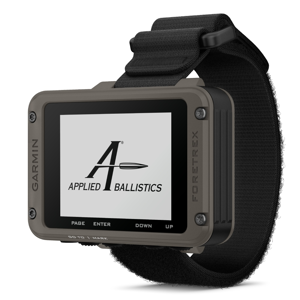

Foretrex 901
010-02760-00
|
Foretrex 801 010-02759-00 |
Foretrex 901 010-02760-00 |
|
| General | ||
| Unit Dimensions | 2.9” x 1.9” x 0.9” (7.3 x 4.8 x 2.2 cm) | |
| Weight | 3.8 oz (107 g) with batteries | |
| Display Size | 2.2" (5.58 cm) diagonal | |
| Display Resolution | 320 x 240 pixels (185 ppi) | |
| Display Type | sunlight readable, monochrome, transflective memory-in-pixel (MIP) | |
| Touchscreen | No | |
| Waterproofing | IPX7 | |
| Rugged Design | MIL STD 810G | |
| Floats | No | |
| Wrist Strap | QuickFit Watch Band (26 mm) - UltraFit Nylon Strap (26 mm) | |
| Battery | 2 AAA (NiMH or Lithium recommended) | |
| Battery Life | 100 hours (GPS Mode) - 1000 hours (Expedition Mode) | |
| Integral Battery Charger | No | |
| GNSS Antenna | Patch | |
| GNSS Chipset | - | |
| High Sensitivity GNSS Receiver | Yes | |
| Multi-GNSS | ||
| Multi-Band | ||
| GNSS Network | GPS (L1+L5) + GLONASS (L1) + Galileo (E1+E5a) | |
| Interface | USB-C | |
| Operating Temperature | -4° to 140°F (-20° to 60°C) | |
| Maps and Memory | ||
| Basemap | No | |
| Preloaded Map | ||
| Ability to Add Maps | ||
| Garmin Custom Maps | ||
| Garmin Satellite Imagery | ||
| Internal Memory | - | |
| Accepts Data Card | No | |
| Custom POIs | No | |
| Waypoints | 500 | |
| Tracks | 100 (500 points each) | |
| Routes | 50 (250 points each) | |
| Track Log (GPX) | 500 points | |
| Track Log (FIT) | 10,000 points | |
| Sensors | ||
| Electric Compass | Yes (tilt-compensated 3-axis) | |
| Barometric Altimeter | Yes | |
| Outdoor Recreational Features | ||
| Automatic Routing | No | |
| Point-to-Point Routing | Yes | |
| TracBack | ||
| Jumpmaster | ||
| Geocaching Friendly | No | |
| Outdoor GPS Games | ||
| Flashlight | ||
| Hunt/Fish Calendar | Yes | |
| Sun/Moon Information | ||
| Area Calculation | ||
| Tide Tables | No | |
| Tactical Features | ||
| Stealth Mode | Yes | |
| Night Vision Mode | ||
| Dual Grid Coordinates | ||
| Kill Switch | ||
| Ballistics Solver | No | Yes |
| AB Synapse | ||
| inReach | ||
| inReach SOS Rescue | No | |
| inReach Tracking | ||
| inReach Weather | ||
| inReach Messaging | ||
| inReach Remote | Yes | |
| Wireless | ||
| Garmin Connect | Yes | |
| Garmin Explore | ||
| Garmin Messenger | No | |
| Smart Notifications | Yes | |
| Wireless Unit to Unit Transfer | ||
| Live Tracking | No | |
| Connect IQ Applications | ||
| Active Weather | ||
| Applied Ballistics | Yes | |
| Vectronix | ||
| HRM | ||
| Tempe | ||
| XERO Locations | ||
| Speed | No | |
| Cadence | ||
| VIRB Remote | ||
| RINEX Logging | ||
