Overview |
|
|

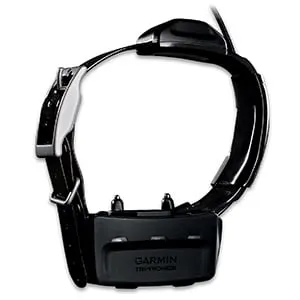

The TT 10 track and train dog device is a high-sensitivity GPS
tracker that uses 18 levels of momentary or continuous
stimulation plus LED beacons and audible tones activated from
the Alpha 100.
Rugged and water resistant to 10 m, the TT
10 uses a braided steel VHF antenna to send its position data to
the Alpha 100 (not compatible with Astro). TT 10 units, when
sold separately, ship with a black collar strap. Replacement
straps are available in multiple colors (sold separately). |
|
|
|
|
|
Specifications |
|
|
|
Unit Dimensions |
3.5" x 1.75" x 1.85" (8.9 cm x 4.4 cm x 4.7 cm) |
|
Collar Length |
27" long; 1" wide Polyurethane-coated nylon with nickel-plated
square buckle and collar keeper
The standard adjustable
collar strap fits dog neck sizes: 12" (30.5 cm) to 22.5" (57.2
cm)
A collar for smaller dogs, 10.5” (26.7 cm) to 22.5” (57.2
cm), is sold separately |
|
Weight |
7.0 oz (200 g) for transmitter and antenna; 9.8 oz (280 g)
total weight |
|
Battery Type |
Rechargeable, replaceable lithium-ion |
|
Battery Life |
24 hours with a 2.5 second update rate; 48 hours with a 2 minute
update rate |
|
Waterproof |
10 m (33 ft) |
|
High Sensitivity Receiver |
Yes |
|
GNSS |
GPS |
|
Range |
5 miles |
|
Frequency Mode |
MURS |
|
|
|
|
|
Documents |
|
|
|
Garmin Alpha 100 TT 10 Owners Manual |
|
Garmin Alpha 100 TT 10 Quick Start Guide |
|
Garmin Dog Collar Compatibility |
|
Garmin Dog
Collar Video Archive |
|
|
|
|
|
Firmware History (1545) |
|
|
Changes made from version 2.90 to 3.00:
Added support for
a new battery pack. |
Changes made from version 2.70 to 2.90:
Adds support for
latest version of field-replaceable battery pack. |
Changes made from version 2.60 to 2.70:
Improved
indication of treed state. |
Changes made from version 2.40 to 2.60:
Report updated
version number after successful software update. |
Changes made from version 2.40 to 2.50:
Improve operation
of Collar Light.
Go to tracking mode if powered on in pairing
mode but no pairing is completed within 2 minutes.
Indicate
pairing mode with a periodic beep. |
Changes made from version 2.30 to 2.40:
Improved Collar
Light visibility. |
|
|
|
|
