Overview |
|
|

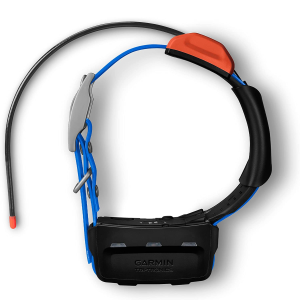

The T 5X dog collar has a top-mounted, high-sensitivity GPS and
GLONASS receiver, so you can track your dog from up to 9 miles
away. It features a rugged design - water-resistant to 10 meters
(1 ATM) - so it’s tough enough to run wherever your dog runs.
Plus, with up to 80 hours of battery life and sleep mode to
remotely put the device to sleep, you can focus on the hunt
instead of the next charge.
LED beacon lights, activated
from your compatible handheld, help keep track of your dog in
the field. Visible up to 100 yards away, the lights work in
low-light conditions and at night.
T 5X ships with a 1”
blue collar strap. Replacement straps are available in multiple
colors (sold separately). |
|
|
|
|
|
Specifications |
|
|
|
Unit Dimensions |
3.5" x 1.75” x 1.85" (8.9 x 4.4 x 4.7 cm) |
|
Collar Size |
Minimum of 9.5” (24 cm) in circumference x 1” (2.54 cm) |
|
Weight |
6.6 oz (188.0 g) for transmitter and antenna (without collar);
9.3 oz (265.0 g) total weight (with collar) |
|
Battery Type |
rechargeable lithium-ion pack; user replaceable |
|
Battery Life |
80 hours |
|
Waterproof |
1 ATM (10 meters) |
|
High Sensitivity Receiver |
Yes |
|
GNSS |
GPS +
GLONASS |
|
Range |
9 miles |
|
LED Beacon Lights |
Yes |
|
Rescue Mode |
Yes |
|
Sleep Mode |
Yes (Alpha products only) |
|
Frequency Mode |
MURS |
|
|
|
|
|
Documents |
|
|
|
Garmin T5 mini T5X Quick Start Manual |
|
Garmin Dog Collar Compatibility |
|
Garmin Dog
Collar Video Archive |
|
|
|
|
|
Firmware History (4200) |
|
|
Changes made from version 2.49 to 2.51:
Fixed several known bugs.
General software improvements. |
Changes made from version 2.45 to 2.49:
Bug fixes and improvements. |
Changes made from version 2.10 to 2.45:
Remove support
for WebUpdater. Use Garmin Express for all updates moving
forward.
Fix device not turning on or charging.
NOTE:
Devices in this state can be fixed by holding the power button
for ~20sec. |
Changes made from version 2.35 to 2.44:
Improved 'Wake' from 'Sleep Mode' time. |
Changes made from version 2.33 to 2.35:
Improve Bark Detection.
Fix long mass storage enumeration times.
Removed Bark Detection showing on T5X. |
Changes made from version 2.30 to 2.33:
Bug fixes and improvements. |
Changes made from version 2.28 to 2.30:
General UX improvements.
GPS acquire time improvement.
Remote sleep/wake improvements. |
Changes made from version 2.25 to 2.28:
Reliability improvements.
Fixes to reduce the risk of a fatal error to the device. |
Changes made to version 2.25:
Improve GPS signal calculation.
Allow remote sleep even if collar doesn't currently have GPS fix.
Optimize fit file size.
Minor bug fixes. |
|
|
|
|
