Overview

When teamed up with the Garmin Astro 220, this system will have you hunting in no time.

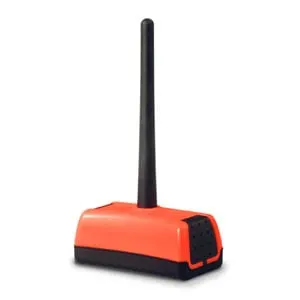

The Garmin DC 20, in combination with the Garmin Astro 220, pinpoints your dog's position every 5 seconds and runs for 17 hours. You can extend the battery life of the Garmin DC 20 by changing the position transmit rate from 5 to 10 or 30 seconds, enabling the Garmin DC 20 to work up to 36 hours in the field on one charge. You will know if your dog is pointing, sitting, moving or treeing. Where it's at. Where it's been. How fast it's moving and how far it's gone.

The Garmin Astro DC 20 can be added to the Astro 220 Receiver in seconds and is ready to work right out of the box. The dog tracking system additional collar comes with a harness or it may be attached to a standard 1" wide collar.

Rugged IPX7 waterproof standards means the unit can withstand accidental submersion up to 1 meter for up to 30 minutes.

Specifications

Unit Dimensions 3.25" x 1.75" x 1.5" (8.3 x 4.4 x 3.8 cm)
Weight 6.0 oz (170 g) with battery pack
Battery Type Li-Ion rechargeable
Battery Life 17, 24, or 36 hours - (user adjustable transmit rate of 5, 10 or 30 seconds)
Waterproof IPX7
High Sensitivity Receiver Yes
GNSS GPS
Range 5 miles
Frequency Mode MURS

Documents

Garmin Astro 220 DC 20 Owners Manual
Garmin Dog Collar Compatibility
Garmin Dog Collar Video Archive

Firmware History (1400)

Changes made from version 4.00 to 4.10:
    Prevent potential range issue with the radio.
Changes made from version 3.90 to 4.00:
    Changes to support manufacturing.
Changes made from version 3.80 to 3.90:
    Changes to support manufacturing.
Changes made from version 3.70 to 3.80:
    Changes to support manufacturing.
Changes made from version 3.60 to 3.70:
    DC40 occasionally failed to fully power down when disconnected from a charger. This release fixes the problem.
Changes made from version 3.50 to 3.60:
    Communication settings retained during software upgrade.
Changes made from version 3.40 to 3.50:
    Improved GPS performance.
    Added triple blink to indicate a high quality GPS fix.
Changes made from version 3.00 to 3.40:
    Added support for DC40.
    Increased battery life.
Changes made from version 2.90 to 3.00:
    Force LED on when power button is pressed to provide instant feedback that the button is pressed.
Changes made from version 2.80 to 2.90:
    Changes for factory testing.
Changes made from version 2.70 to 2.80:
    Changes for factory testing.
Changes made from version 2.60 to 2.70:
    Changes for factory testing.
Changes made from version 2.50 to 2.60:
    Further improved battery monitoring.
Changes made from version 2.40 to 2.50:
    Improved low battery monitoring.
Changes made from version 2.30 to 2.40:
    Modified to never show 'sitting' status when dog type is set to 'pointing dog'.
Changes made from version 2.20 to 2.30:
    Eliminates the recording of an invalid detailed track point when power is turned off.
