Status Page


• The Oregon 6x0 Status page can be accessed at any time by briefly pressing the power button.
• The Status Page is not available while the power button is configured to capture screen images.
• Setting the Backlight Slider to 0% removes the need to tap the screen twice to make menu selections (first touch enables backlight).
• A dashboard can be enabled if desired.

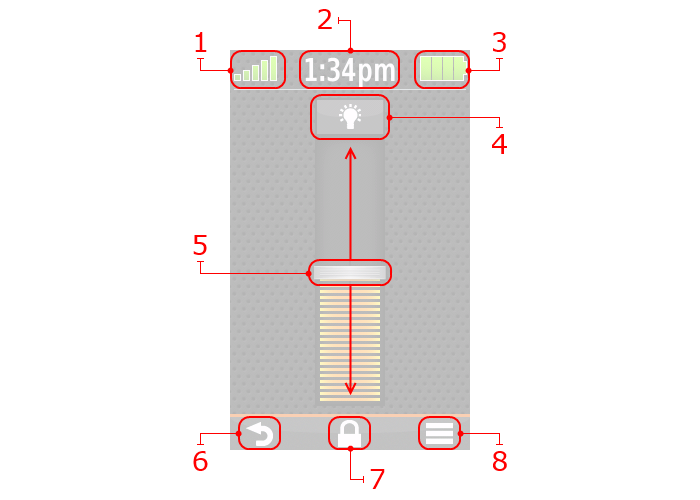

• The following controls and information are available from the Oregon 6x0 Status page display:


1. Satellite Signal Strength
2. Touch here to cycle between Date and Time for the current location
3. Power Supply Status
4. Select to cycle the backlight between 100% > 0% > 50%
5. Move the Backlight Slider to adjust screen brightness between 0% and 100%
6. Select to exit the Status page and return to the active application
7. Select to unlock the screen and return to the active application
8. Select to select and enable or disable the active dashboard
