Ever get tired of backing all the way out of the current application to find the setup menu, having to search for the setting you want to change, and then trying to find your way back where you were when you realized you needed to change the setting?

Do you wish you could have easy one touch access to just the menu items and setup options you need, without all those tedious key presses?

Have you ever needed to work through multiple setup items just to make your GPSr behave the way you want it too? Wouldn't it be great if you could activate multi-function macros with a single touch?

With the Oregon 6x0 there is no need to dig several layers deep into complex setup menu structures. Oregon 6x0 users can create simple one function shortcuts or complex multi-function macros for quick and easy access from any main menu, drawer or dashboard!


Access favorite shortcuts remotely with Favorites dashboard.

View Shortcuts

Access available shortcuts on your Oregon 6x0

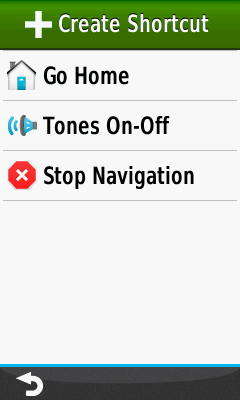

	Select [Setup]		Scroll menu to [Shortcuts]		Select [Shortcuts]		Shortcut Menu

Set Home Location

Assign a waypoint to the [Go Home] shortcut

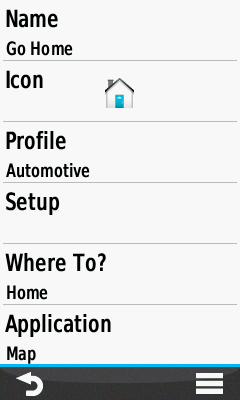

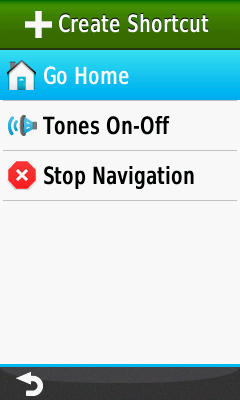

	Access Shortcut Menu Select [Go Home]		[Go Home] shortcut menu		Select [Edit]		[Go Home] editing menu

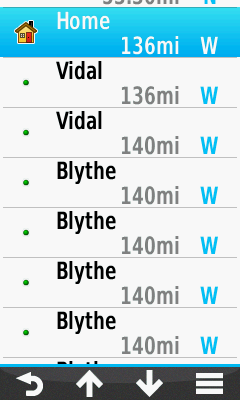

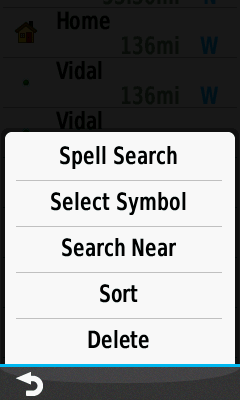

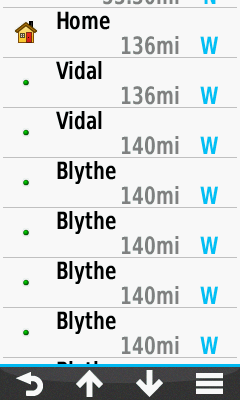

	Select [Where To?]		Waypoint menu		Waypoint menu options		Select desired waypoint

Create New Shortcut

This example creates a shortcut to enable chirp™ searching and return to the main menu

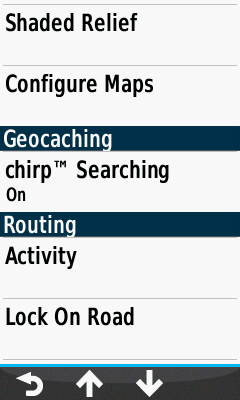

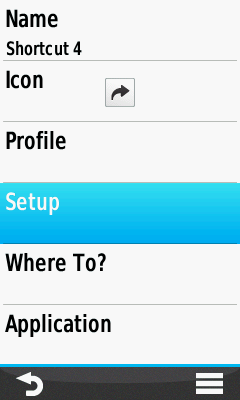

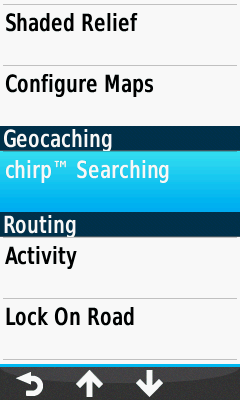

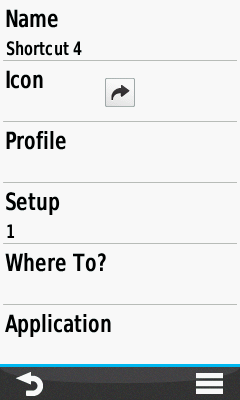

	Select [Create Shortcut]		New Shortcut menu		Select [Setup]		Select [chirp™ Searching]

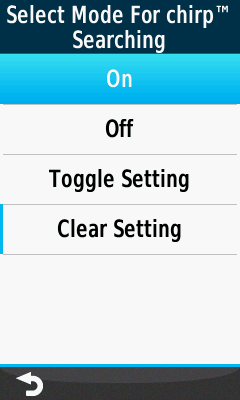

	Select [On]		chirp™ Searching status updated to reflect selection		Setup count is adjusted		Select [Application]

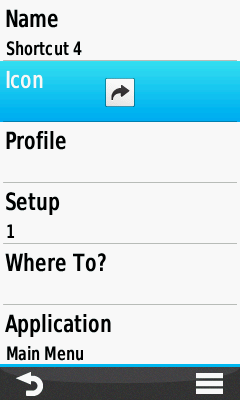

	Choose [Main Menu]		Application status is updated		Select [Icon]		Choose desired icon

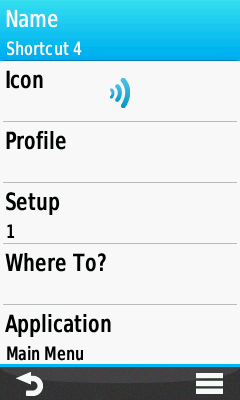

	Icon status is updated		Select [Name]		Current name displayed		Hold to clear name

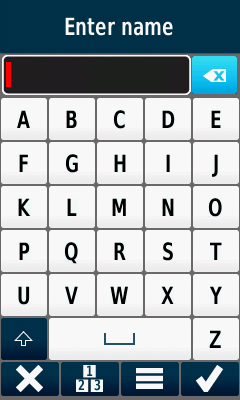

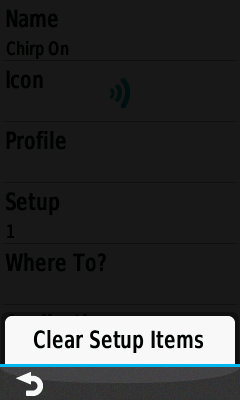

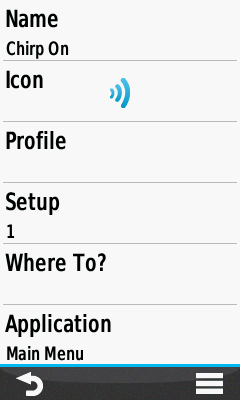

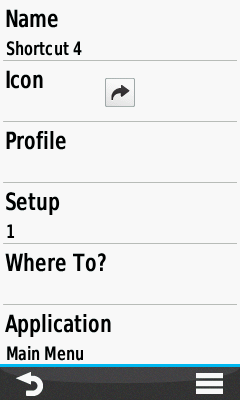

	Enter desired name		Shortcut name is updated		New shortcut is complete		Use this option to clear all setup items and start over

Manage Shortcut

Edit, delete, add or remove existing shortcuts from available menus

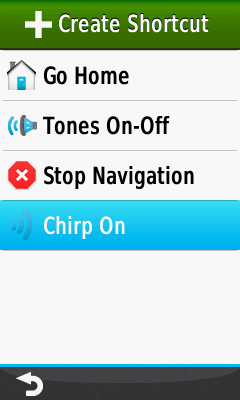

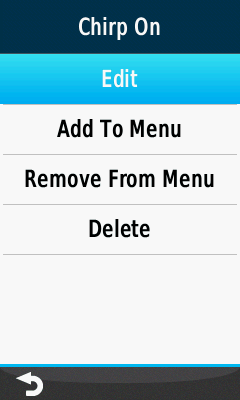

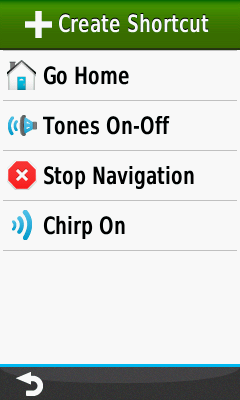

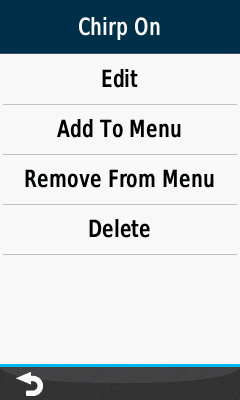

	Access Shortcut Menu		Select desired shortcut		Shortcut management menu		Select [Edit]

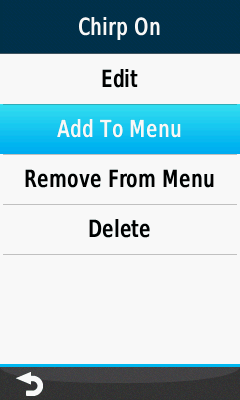

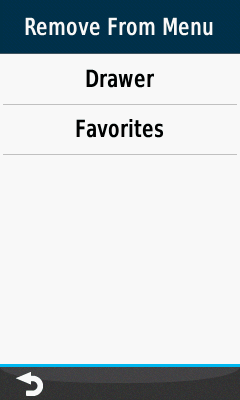

	Select [Add To Menu]		Choose from available menus		Select [Remove From Menu]		Choose from available menus

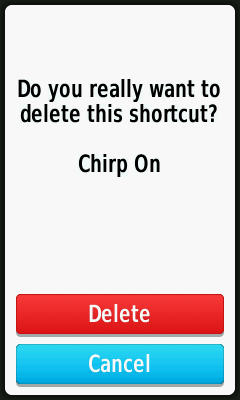

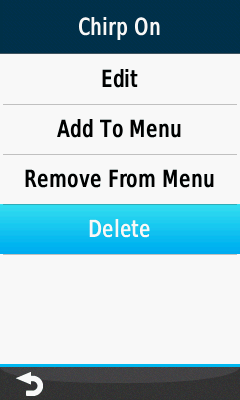

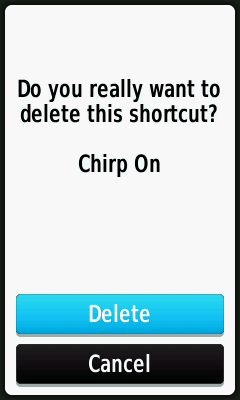

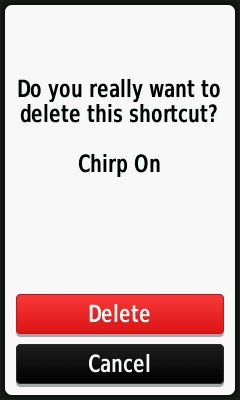

	Select [Delete]		Are you sure?		[Delete] to proceed		[Cancel] to abort

Edit Shortcut Name

Create a title for the selected shortcut

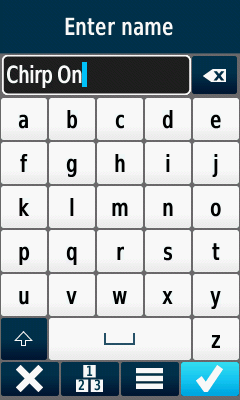

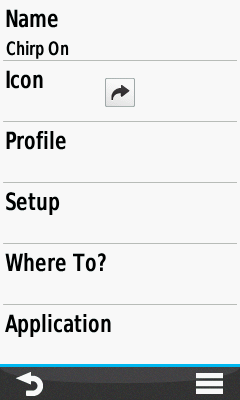

	Access Shortcut Edit Menu		Select [Name]		Current name displayed		Hold to clear name
	Enter desired name		Shortcut name is updated

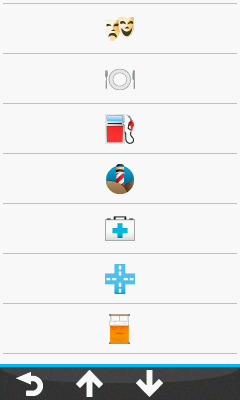

Edit Shortcut Icon

Select an icon to represent the selected shortcut

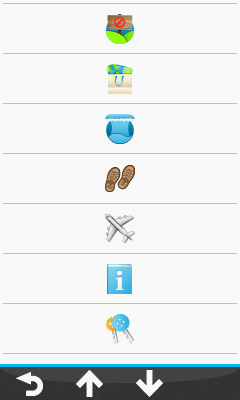

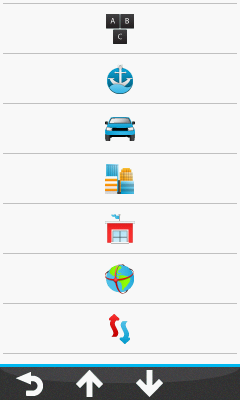

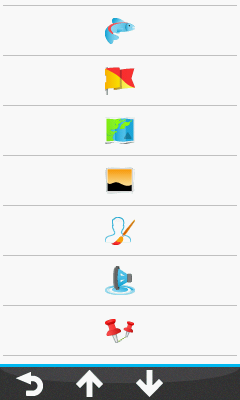

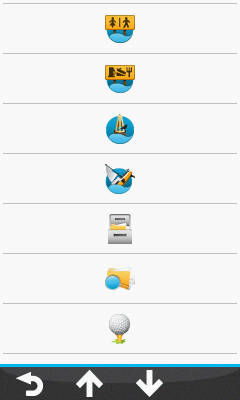

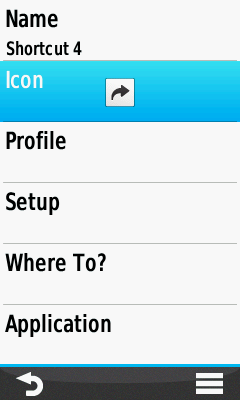

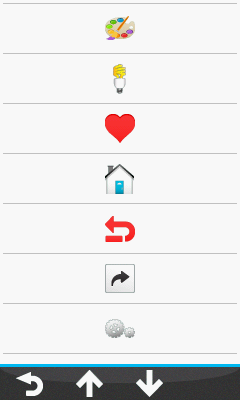

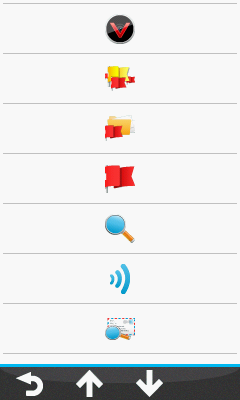

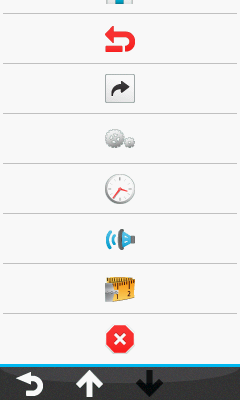

	Access Shortcut Edit Menu		Select [Icon]		Choose from available icons		Choose from available icons
	Choose from available icons		Choose from available icons		Choose from available icons		Choose from available icons
	Choose from available icons		Choose from available icons		Choose from available icons		Choose from available icons
	Choose from available icons

Edit Shortcut Profile

Choose a profile to activate when the shortcut is selected

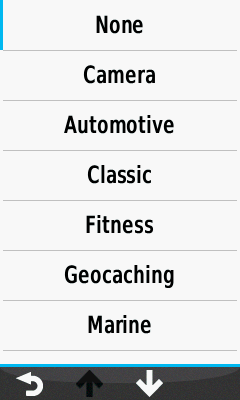

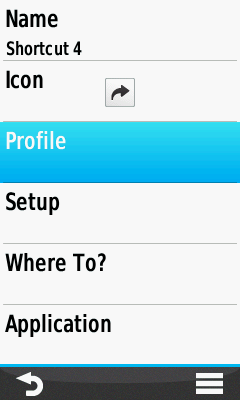

	Access Shortcut Edit Menu		Select [Profile]		Choose from available profiles		Choose from available profiles

Setup Menu

Change commonly used system settings and enable/disable installed maps

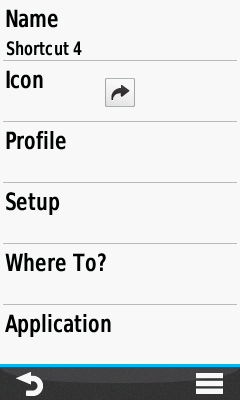

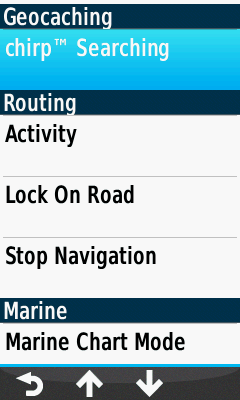

	Access Shortcut Edit Menu		Select [Setup]		Choose from available Setup categories		Choose from available Setup categories
	Choose from available Setup categories		Choose from available Setup categories		Choose from available Setup categories

Display

Manage display preferences

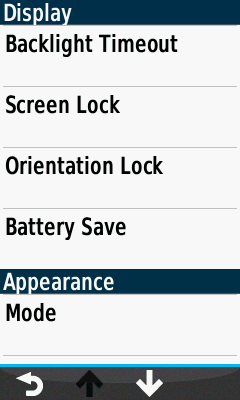

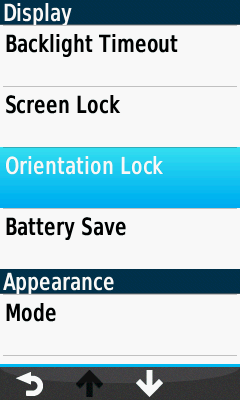

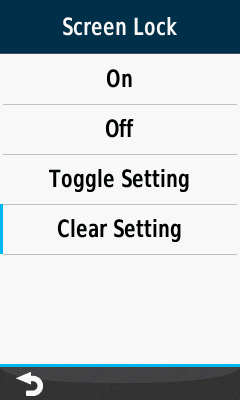

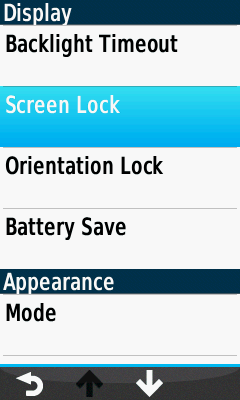

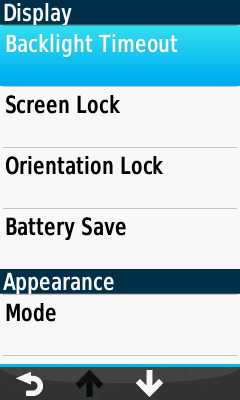

	Access Setup Menu [Backlight Timeout] selected		Backlight Timeout options		[Screen Lock] selected		Screen Lock options

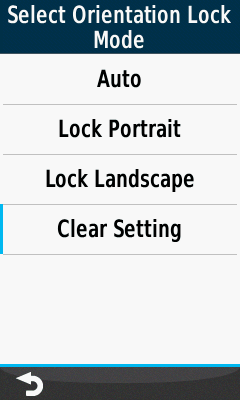

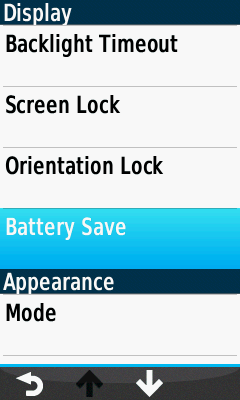

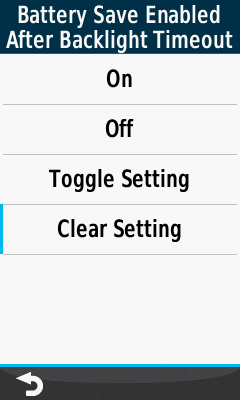

	[Orientation Lock] selected		Orientation Lock options		[Battery Save] selected		Battery Save options

Appearance

Adjust Mode and Landscape options

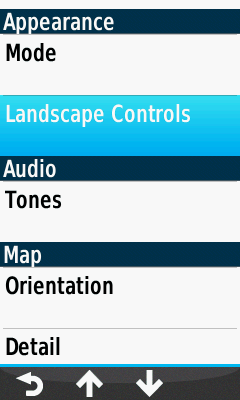

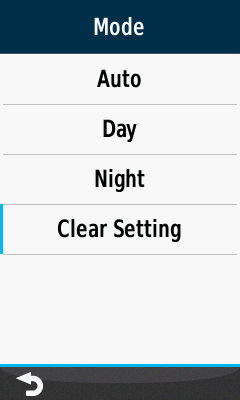

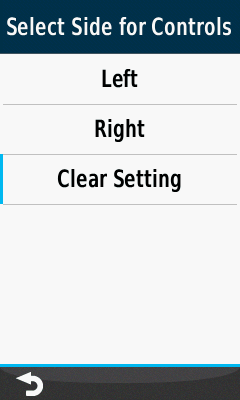

	Access Setup Menu [Mode] selected		Mode options		[Landscape Controls] selected		Landscape Controls options

Audio

Enable/disable tones

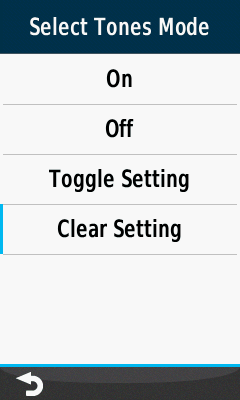

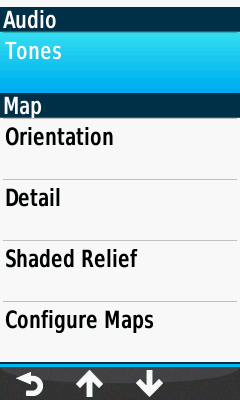

	Access Setup Menu [Tones] selected		Tones options

Map

Enable/disable installed maps and adjust map display preferences

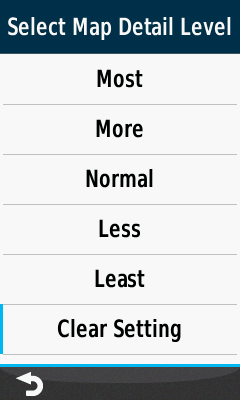

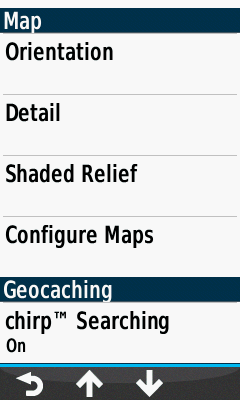

	Access Setup Menu [Orientation] selected		Orientation options		[Detail] selected		Detail options

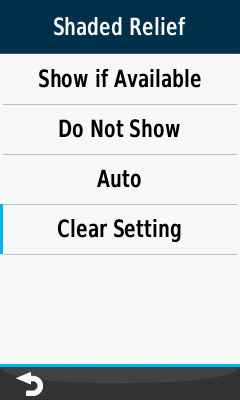

	[Shaded Relief] selected		Shaded Relief options		[Configure Maps] selected		Configure Maps menu

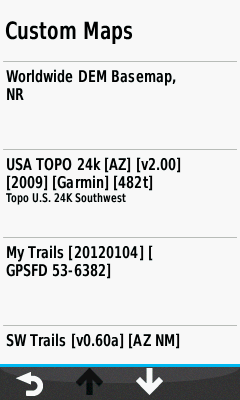

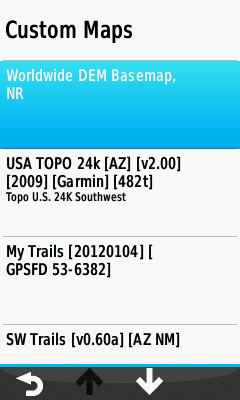

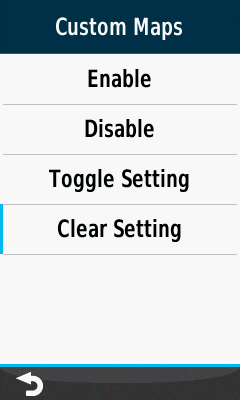

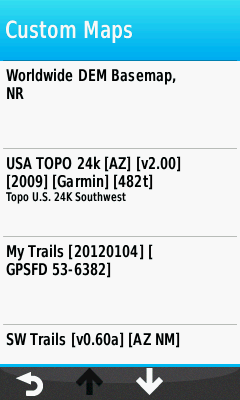

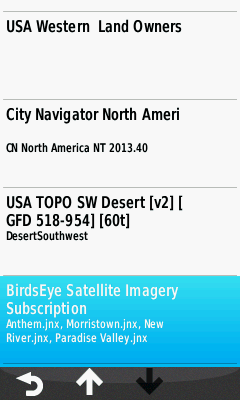

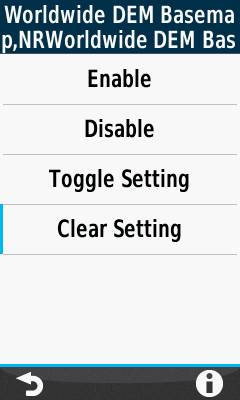

	Select map to configure		Choose from available map configuration options		[Custom Maps] selected		Custom Maps options
	[BirdsEye] selected		BirdsEye options

Geocaching

Enable/disable chirp™ searching

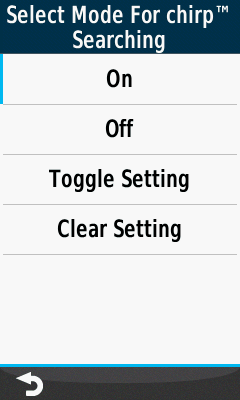

	Access Setup Menu [chirp™ Searching] selected		chirp™ Searching options

Routing

Select desired routing options

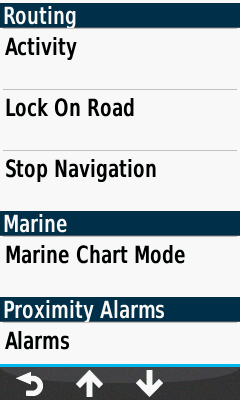

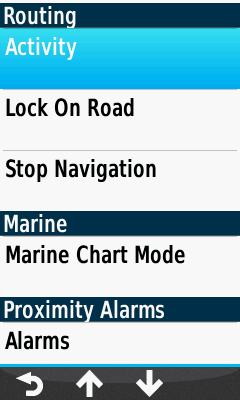

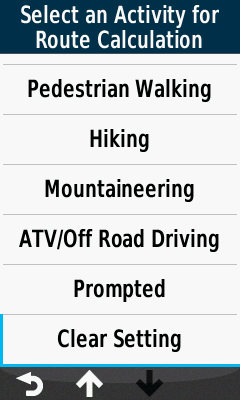

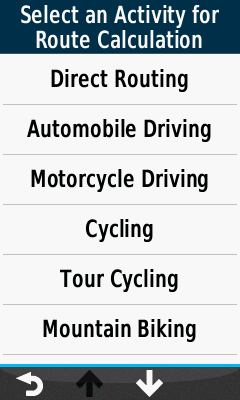

	Access Setup Menu [Activity] selected		Activity options		Activity options

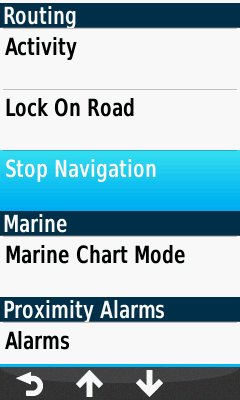

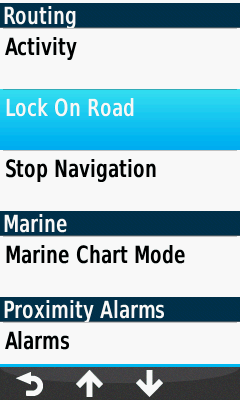

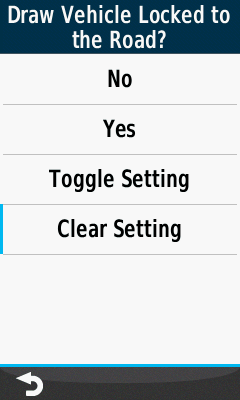

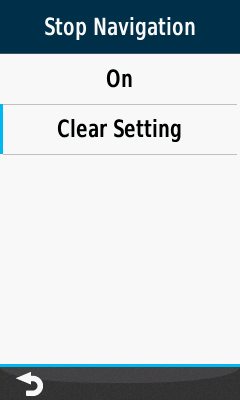

	[Lock On Road] selected		Lock On Road options		[Stop Navigation] selected		Stop Navigation options

Marine

Choose desired Marine Chart Mode

	Access Setup Menu [Marine Chart Mode] selected		Marine Chart Mode options

Proximity Alarms

Enable/disable proximity alarms

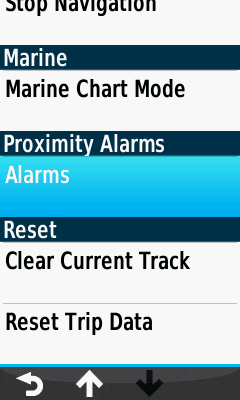

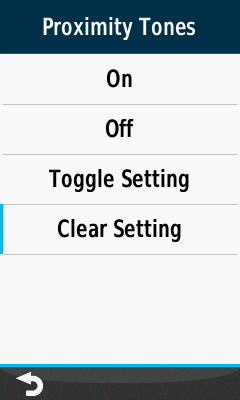

	Access Setup Menu [Alarms] selected		Alarms options

Reset

Clear current track and trip data

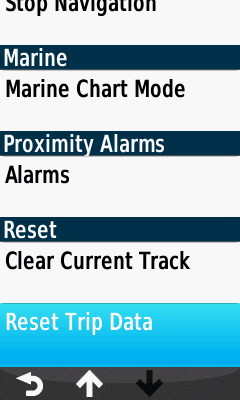

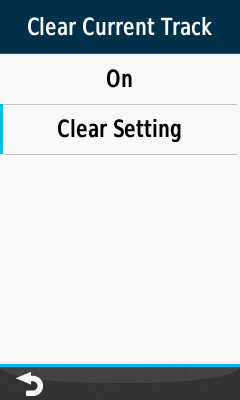

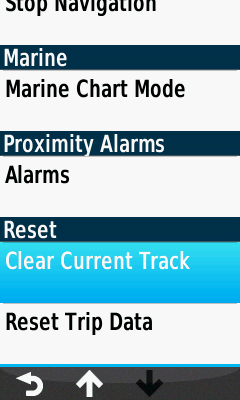

	Access Setup Menu [Clear Current Track] selected		Clear Current Track options		[Reset Trip Data] selected		Reset Trip Data options

Where To?

Choose a destination to begin navigation toward when the shortcut is activated

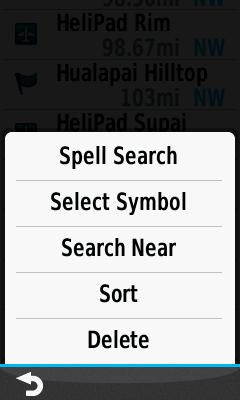

	Access Shortcut Edit Menu		Select [Where To?]		Choose from available waypoints		Waypoint selection options

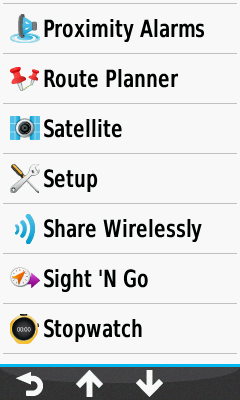

Application

Launch the specified application when activating the shortcut

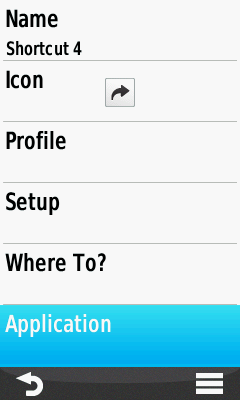

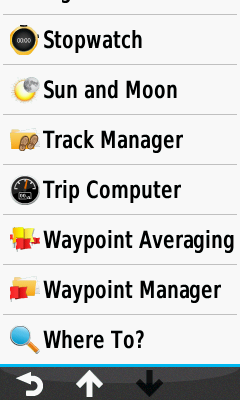

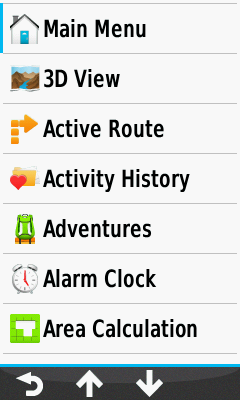

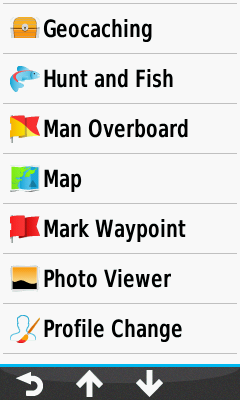

	Access Shortcut Edit Menu		Select [Application]		Choose from available options		Choose from available options
	Choose from available options		Choose from available options		Choose from available options
