Status Page
- The Montana Status page can be accessed at any time with a quick press and immediate release of the power button.
- The Volume Slider and Mute controls are only available when an external speaker
is connected.
- Setting the Backlight Slider to 0% removes the need to tap the screen
twice to make menu selections (first touch enables backlight).

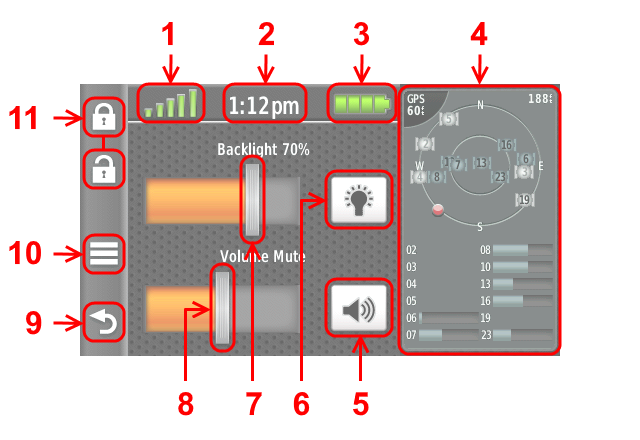

- The following controls and information are available from the Montana Status page display:
- Satellite Signal Strength
- Select to toggle between Current Time or Current Date for location
- Battery Charge Remaining
- Active Dashboard
- Select the speaker icon to enable/disable the volume mute function
- Select the bulb icon to cycle the backlight between 100% > 0% >
50%
- Move the Backlight Slider to adjust screen brightness between 0% and 100%
- Move the Volume Slider to adjust audio volume between 0% and 100%
- Select the back arrow to exit the Status page and return to the active application
- Select the menu setup icon to change the active dashboard
- Selecting the lock icon will toggle the screen lock status and return to the active application
