Make adjustments to compass display and settings




Set the type of directional heading on the compass

[Numeric Degrees] ==========
[Cardinal Letters] ==========
[Mils]















[Bearing Small]
[Bearing Large]
[Course/CDI]

Select how the course bearing appears


The red bearing pointer points towards the destination, regardless of the direction of movement.
The CDI pointer is most useful when navigating on water or where no major obstacles are in your path.



The course pointer [1] indicates the relationship to a direct course line [2] between the original starting point and the destination.
As you drift from the intended course, the Course Deviation Indicator (CDI) [4] provides the indication of drift (left or right) from the intended course.
The scale [3] indicates the full scale distance measurement for the 5 dots on either side of the CDI.










Set the north reference for the compass



--/--

--/--

--/--

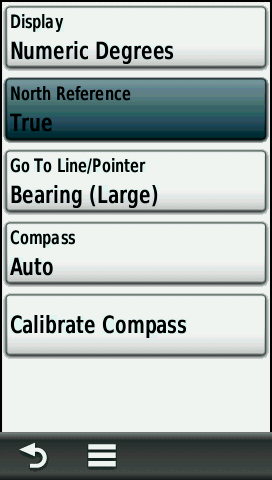

Select [North Reference]

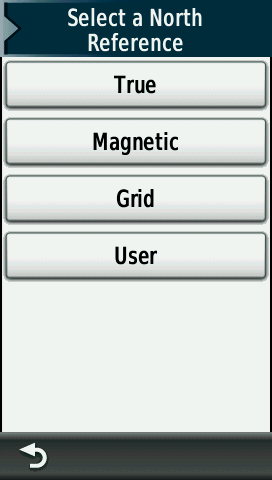

North Reference Menu
options

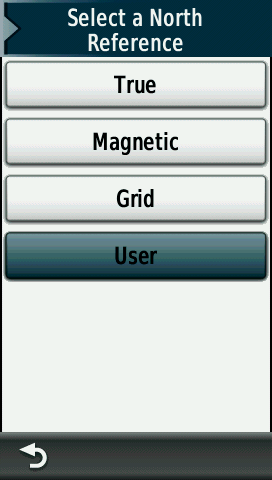

Select [User] to adjust
compass magnetic variation

Magnetic variation

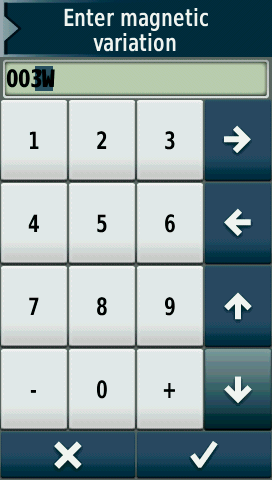

adjustment screen

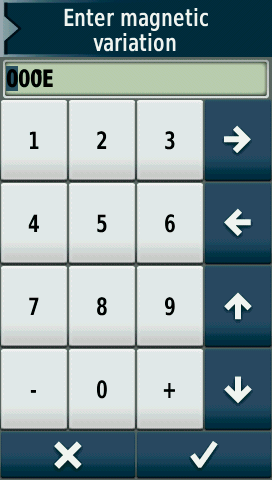

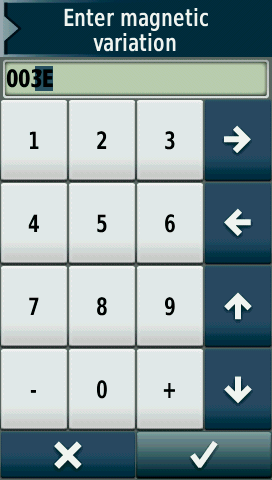

Use keypad to enter
desired value

Use ↓ to change E to W

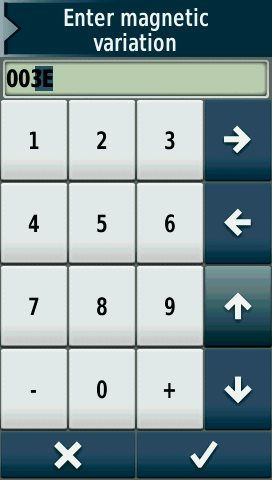

Use ↑ to change W to E

Select the check mark to
set the value displayed















Turn the electronic compass on or off



--/--

--/--

--/--

Select [Compass]

Compass Mode Menu

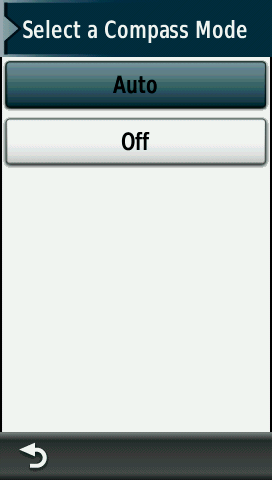

[Auto] Uses electronic
compass when stationary,
switches to GPS compass
while in motion.

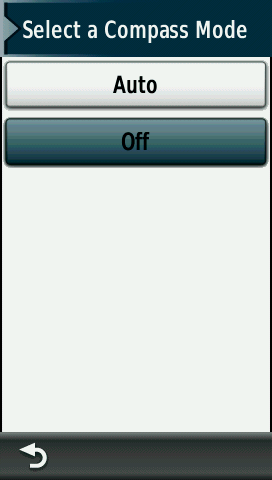

[Off] Disables electronic
compass and extends
battery life.















The compass should always be calibrated outdoors. The compass should be calibrated after moving long distances, after experiencing significant temperature changes, and after replacing the batteries. To improve heading accuracy, do not stand near objects that influence magnetic fields, such as cars, buildings, or overhead power lines.Each step of the calibration process must be performed exactly as shown:



--/--

--/--

--/--

Select
[Calibrate Compass]

Select [Start] to begin

Select [Continue]
after completing
each step.

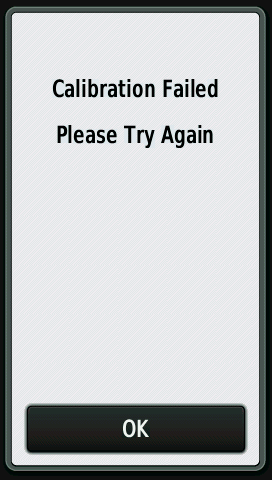

If you see this screen, you
will have to start again














Step 1: Slowly Rotate 360º

Step 2: Slowly Roll 360º

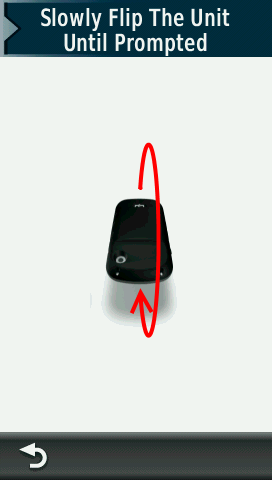

Step 3: Slowly Flip 360º

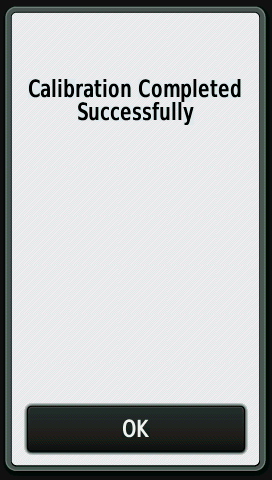

Calibration is complete!
