Send Map to GPSr with MapInstall

1. Open Garmin MapInstall application

2. Connect your Garmin GPSr via USB and enable Mass Storage Mode

3. Choose the desired device from the drop down menu

• If the available memory on the selected device is sufficient to load all available maps, you may
  • Select "Customize..." to choose only the map segments you wish to send
  • Select "Send Maps" to send all available maps to the selected device

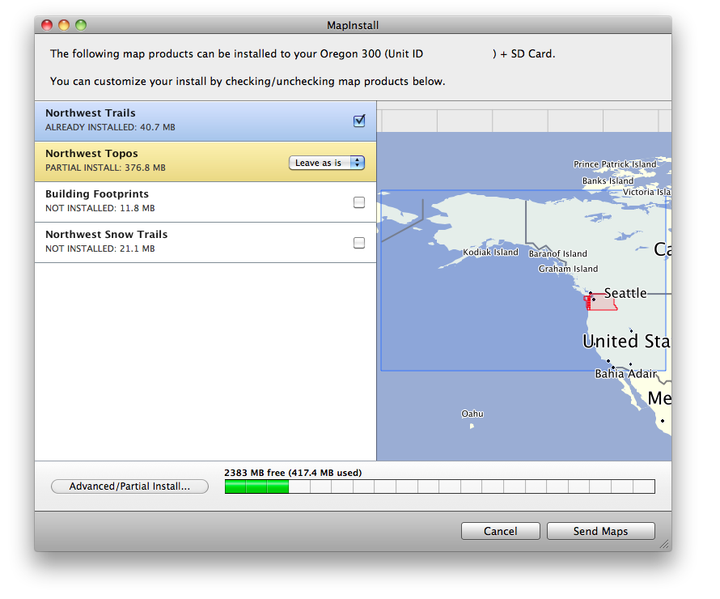

4. MapInstall displays a list of all available maps, map installation status, and memory usage for selected device



5. Select "Advanced/Partial Install..." if you need to enable/disable specific map segments

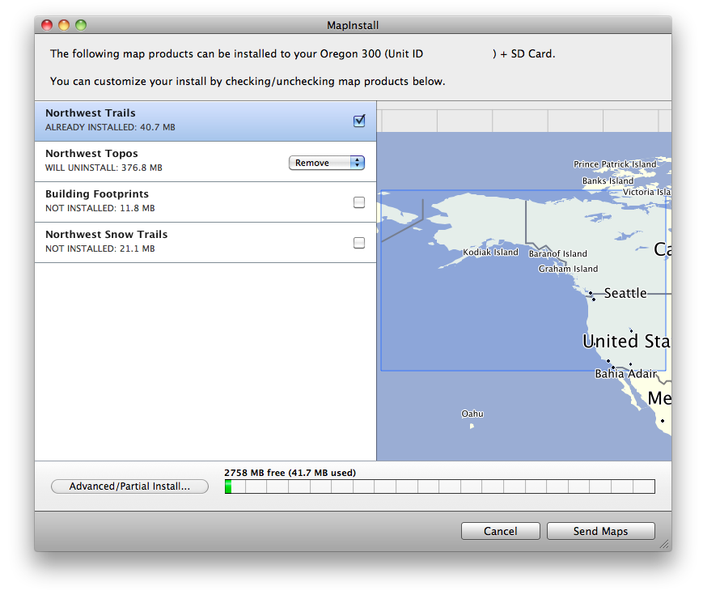

6. Deselect "Already Installed" maps to schedule removal

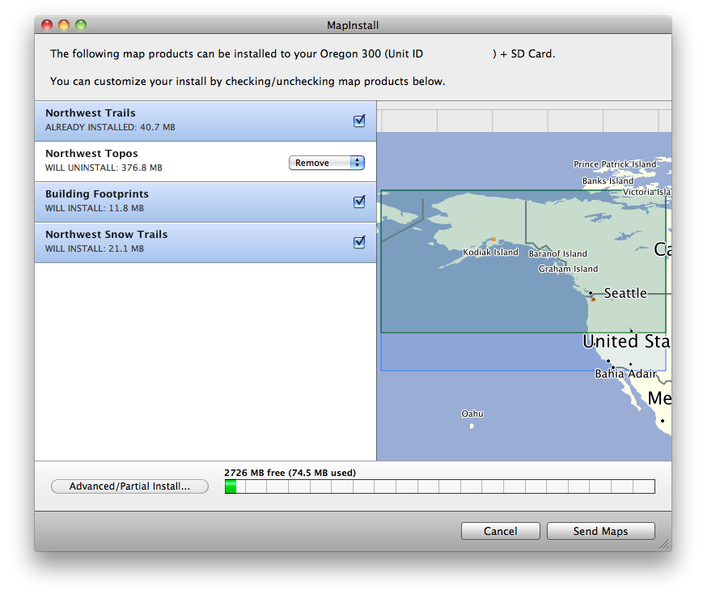

7. Select "Not Installed" maps to schedule installation, and "Send Maps" after all selections are complete

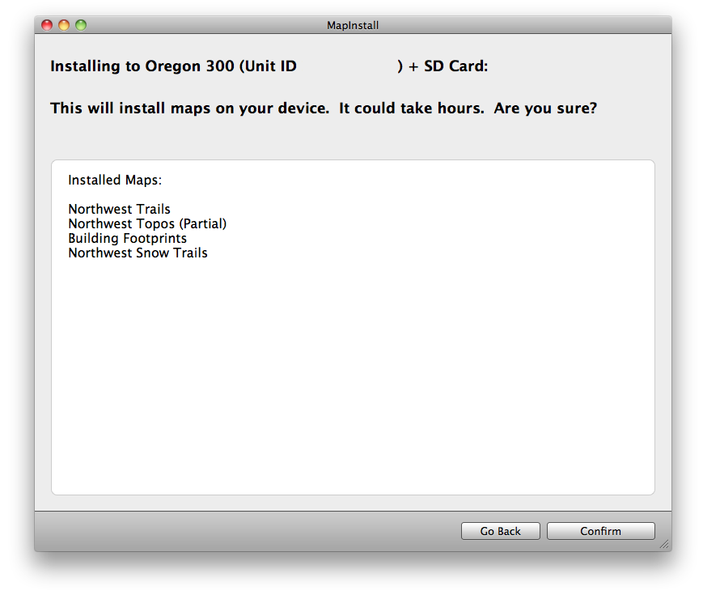

8. Verify scheduled map maintenance, and select "Confirm"



9. MapInstall builds the selected map sets

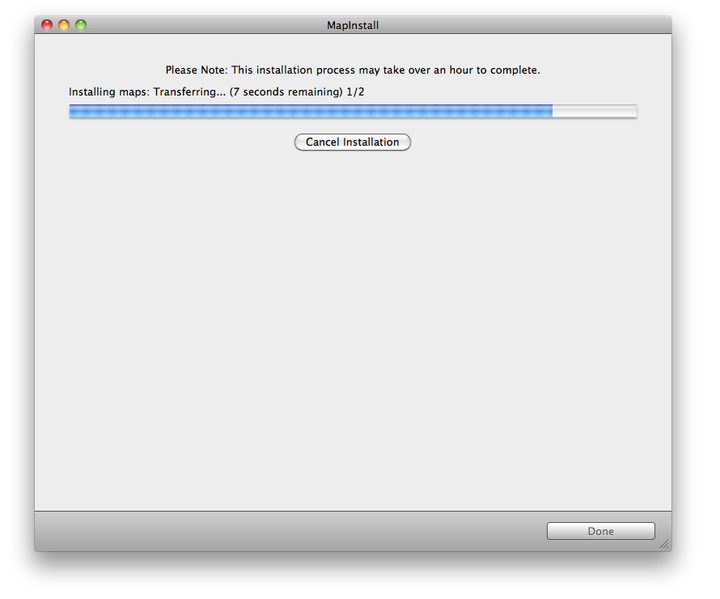

10. MapInstall transfers the selected map sets

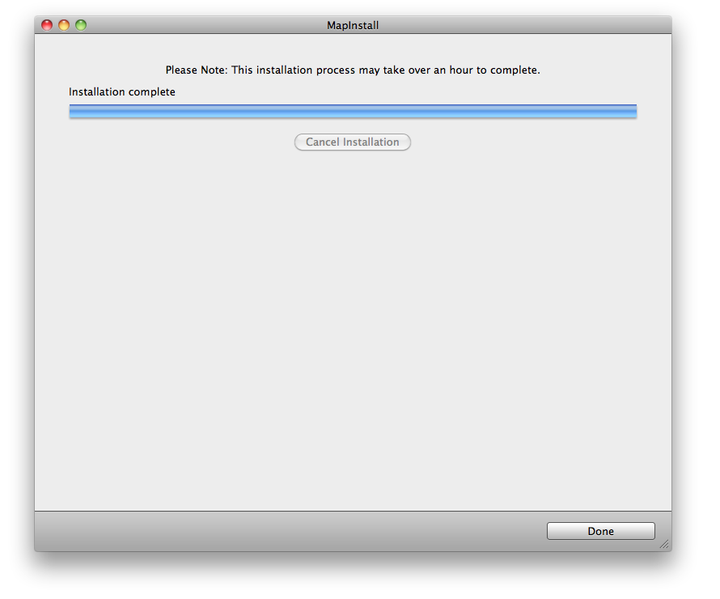

11. MapInstall confirms all scheduled map maintenance was successfully completed



12. Select "Done" to exit application

13. Safely disconnect and reboot your Garmin GPSr

14. Enable your newly installed map(s) on your GPSr.

Enjoy!



















Advanced/Partial Install...

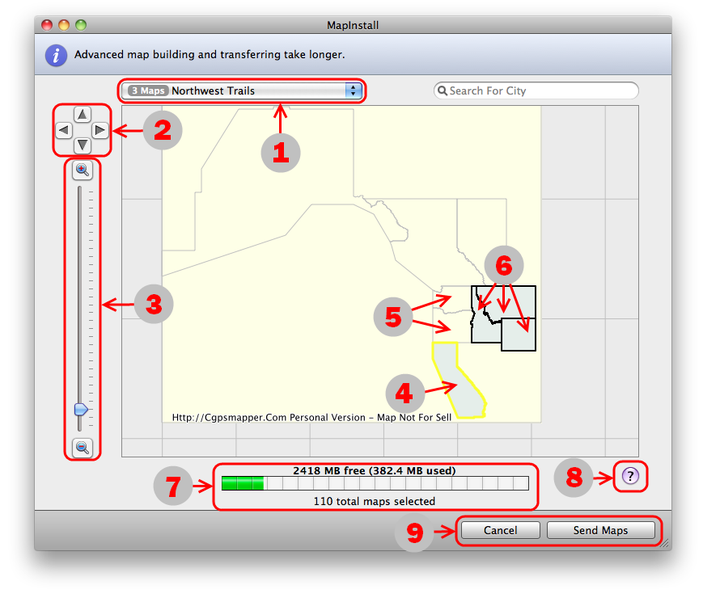

A1. MapInstall supplies the "Advanced/Partial Install" work space



A2. Use the provided tools to enable/disable all map segments from all maps you wish to send to your GPSr

1. [Map Select Menu] Switch between available maps
2. [Map Pan Tool] Move the focal point of selected map (keyboard arrow keys)
3. [Map Zoom Tool] Zoom in and out of the selected map (mouse wheel)
4. Hover the mouse pointer over the map segments to select them
5. [Mouse Click] Disables enabled map segment(s)
6. [Mouse Click] Enables disabled map segment(s) (You can drag your selection across multiple segments)
7. Memory usage for selected device
8. Brief Garmin MapInstall help file
9. Select "Cancel" to start over or select "Send Maps" to send all enabled map segments to the selected device
